xxter enOcean manual
This manual is a general instruction for connecting the antenna and configuring xxter with
enOcean. If required enOcean can also be combined with a KNX installation.
To make use of enOcean, please note the following prerequisites:
1) An xxter module type HC01C or newer
2) An xxter enOcean ANE01 antenna
3) The latest configuration tool (version 1.8.3 or newer)
4) The latest firmware (version 1.8.3 or newer)

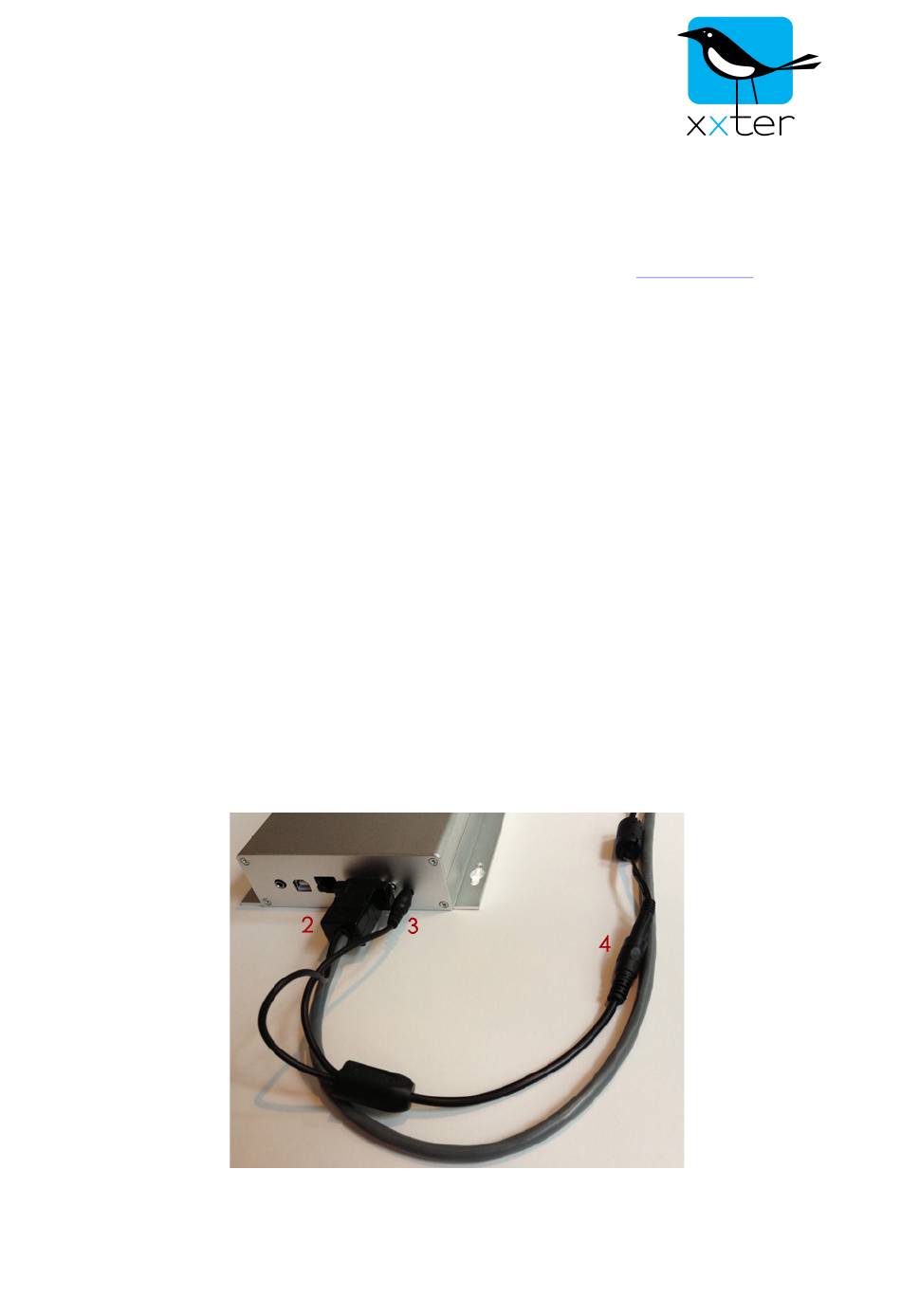

Connecting the antenna
The enOcean ANE01 antenna has a serial connector and a power split cable, which both
need to be connected. Please follow the following instructions:
1) Make sure the xxter is disconnected from the power.
2) Attach the serial connector of the ANE01 to the serial (RS232) port of your xxter.
3) Attach the power split cable to the xxter unit.
4) Attach the power adapter of the xxter unit to the split cable.
Now the power adaptor can be reconnected to the power socket and the xxter unit as well as
the enOcean antenna will have power.
xxter b.v.
Elandsgracht 73 I
1016 TR Amsterdam
The Netherlands
Tel. +31 20 6242 865
www.xxter.com
info@xxter.com
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the enOcean ANE01 and is the answer not in the manual?

Questions and answers

Summary of Contents for xxter enOcean ANE01

  • Page 1 3) Attach the power split cable to the xxter unit. 4) Attach the power adapter of the xxter unit to the split cable. Now the power adaptor can be reconnected to the power socket and the xxter unit as well as the enOcean antenna will have power.
  • Page 2 When the beta firmware is installed, the enOcean function will automatically be activated. This option can be turned on or off on the basic settings page of the xxter unit. On the status page you can see whether xxter has properly recognised and connected to the antenna.
  • Page 3 In the configuration tool, open a project or create a new one. Configure the IP address of the xxter unit in the tool settings and connect to the xxter unit, using the button on the right hand side of the toolbar (with the enOcean symbol). This will enable the configuration tool to receive the enOcean teach telegrams from the xxter unit.
  • Page 4 Added telegrams can be connected to actions, just as you would when using the ETS import. Important: teached telegrams can only be received and not be transmitted. Therefor these telegrams can only be connected to status groups of actions. By default the letter A will be connected, since every type of telegram will always have at least one value.
  • Page 5 Sending telegrams To control other units with xxter, xxter will also need to send telegrams that can be teached in by other devices. To do this, create a new telegram in the configuration tool on the fourth tab (the enOcean tab) by clicking the right mouse button somewhere on the sheet.
  • Page 6 + and a receiving telegram is shown with a - symbol. Combining KNX and enOcean It is also possible to combine enOcean and KNX using xxter. In the actions table in the tool, there is column titled bridge.
  • Page 7   e nOcean   t elegram   t ypes Func Type Letter Description Temperature   s ensors Temperature   s ensor   r ange   -­‐ 40   t o   0   ° C A Temperature   ( °C) Temperature  ...
  • Page 8   e nOcean   t elegram   t ypes Func Type Letter Description Temperature   s ensor   r ange   4 0   t o   1 20   ° C A Temperature   ( °C) Temperature   s ensor   r ange   5 0   t o   1 30   ° C A Temperature  ...
  • Page 9   e nOcean   t elegram   t ypes Func Type Letter Description Range   0 lx   t o   1 530lx,   0   t o   5 1   ° C   a nd   o ccupancy A Temperature  ...
  • Page 10   e nOcean   t elegram   t ypes Func Type Letter Description Environmental   A pplications Weather   s tation A Dawn   s ensor   ( 0..999   l ux) B Temperature   ( -­‐40..80   ˚ C) C Wind  ...

  • Page 11: Energy Management

      e nOcean   t elegram   t ypes Func Type Letter Description Energy   m anagement Not   y et   a vailable Central   c ommand PHC   g ateway A Time   f or   d elay   a nd   l ock   ( 0.1   . .   6 553   s ) B Unlock  ...
  • Page 12   -­‐   e nocean   d evice   l ist Brand Article Telegram Brand Article Telegram Eltako FABH63 BS4   -­‐   0 8   -­‐   0 1 Eltako FADS60   -­‐   2 30V RPS  ...
  • Page 13 Switch ENO:0/A,   E NO:0/I xxter   -­‐ >   e nOcean Which   c ombination   t o   u se   i s   d epending   o n   t he   a ctuator Most   a ctuators   u se   t wo   d ifferent   b uttons   f or   s witching,   1   f or   O N,   1   f or   O FF...
