USE AND CARE GUIDE

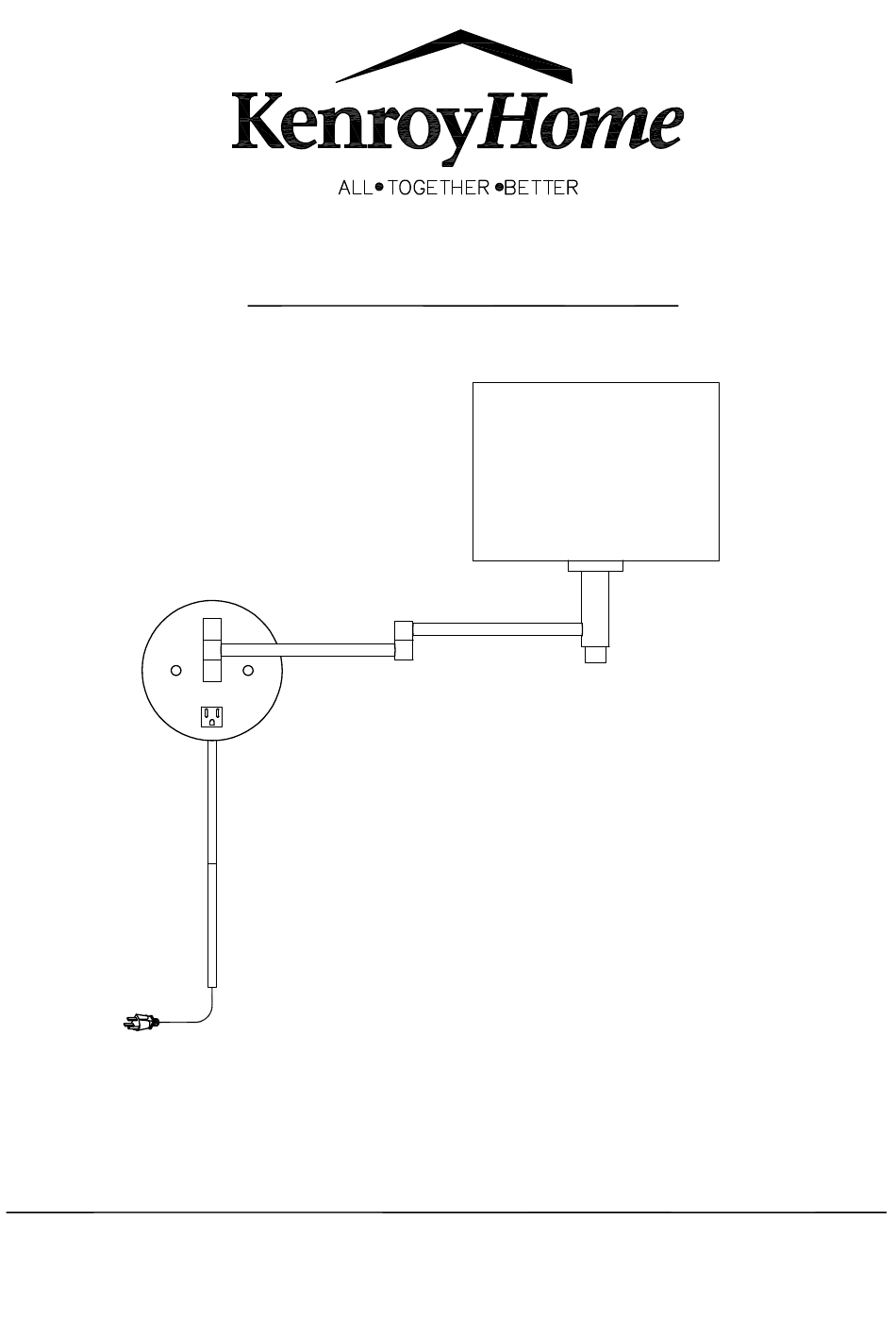

HEMLOCK WALL SWING ARM WITH OUTLET-#35292
Questions, problems, missing parts? Before returning to the store,
call Kenroy Home Customer Service
8 a.m.-6 p.m., EST, Monday-Friday
904-642-4340
THANK YOU
We appreciate the trust and confidence you have placed in Kenroy Home through the purchase of this lamp.
We strive to continually create quality products designed to enhance your home.
Thank you for choosing us!
Advertisement
Related Manuals for Kenroy Home HEMLOCK
Summary of Contents for Kenroy Home HEMLOCK
- Page 1 8 a.m.-6 p.m., EST, Monday-Friday 904-642-4340 THANK YOU We appreciate the trust and confidence you have placed in Kenroy Home through the purchase of this lamp. We strive to continually create quality products designed to enhance your home. Thank you for choosing us!
-
Page 2: Table Of Contents
Table of Contents Safety Information ............................2 Warranty ..............................2 Pre-Installation ............................3 Planning Installation ..........................3 Package Contents ..........................4 Using power cord instructions .......................5 , 6, 7 Outlet box installation instructions....................... 8, 9, 10 Care and Cleaning ............................11 Troubleshooting ............................ -
Page 3: Pre-Installation
Pre-Installation PLANNING INSTALLATION Read all instructions before assembly. To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard. Inspect each part for defects that may have occurred during shipping. Keep your receipt and these instructions for proof of purchase. NOTE: The lamp requires the use of one 120V, 60Hz, 100-Watt max, medium-base type A bulb (not included). -
Page 4: Package Contents
Pre-Installation (continued) PACKAGE CONTENTS Description Quantity Part Socket ring Shade Lamp body... -
Page 5: Using Power Cord Instructions
Using power cord instructions Unpack the lamp and remove the mounting plate □ Carefully organize and place all parts on a smooth, flat surface. line up all of the parts according to the installation diagram. □ Remove the mounting plate (BB) from back of the backplate by unscrewing the two finials (GG). Backplate NOTE: If using power cord follow instructions below. - Page 6 Using power cord instructions (continued) Hanging the lamp body □ Raise the lamp body (C) to wall, align the holes in backplate with the mounting screws ( DD), and then secure the backplate to the wall with two finials (GG). Backplate Installing the cord cover Optional, if not using cord covers skip to step 5.
- Page 7 Using power cord instructions (continued) Assembling shade and installing the bulb □ Swing the swing arm, if the swing arm is hard to swing or have abnormal sound, put a drop of WD-40 or similar product on the joint and let it sit overnight. dry with a soft cloth. □...
-
Page 8: Outlet Box Installation Instructions
Outlet box installation instructions Removing the power cord The power cord is the wire that enters through the bottom of the backplate. □ Remove the three wire nuts that connect to power cord by twisting counter clockwise. (see diagram) □ Remove the "8" shape cord clip and pull power cord out through bottom of the backplate. □... - Page 9 Outlet box installation instructions (continued) Connecting the wires □ Install the fixture bare copper wire (1) under the green ground screw (FF) on the mounting plate (BB). □ Connect the fixture bare copper wire (1) to the green (or bare, or green & yellow) supply ground wire (2) in the outlet box using a wire nut (AA).
- Page 10 Outlet box installation instructions (continued) Assembling shade and installing the bulb □ Swing the swing arm, if the swing arm is hard to swing or have abnormal sound, put a drop of WD-40 or similar product on the joint and let it sit overnight. dry with a soft cloth. □...
-
Page 11: Care And Cleaning
Care and Cleaning □ Clean the lamp with a soft, dry cloth. Do not use any cleaners with chemicals, solvents, or harsh abrasives. Troubleshooting Problem Possible Cause Solution □ The bulb is burned out. □ Replace the light bulb. The bulb will not light. □... - Page 12 www.kenroyhome.com CUSTOMER SUPPORT TEAM For any additional questions or concerns please contact our Customer Support Team: 904-642-4340 @KenroyHome customerorders@kenroyhome.com...
