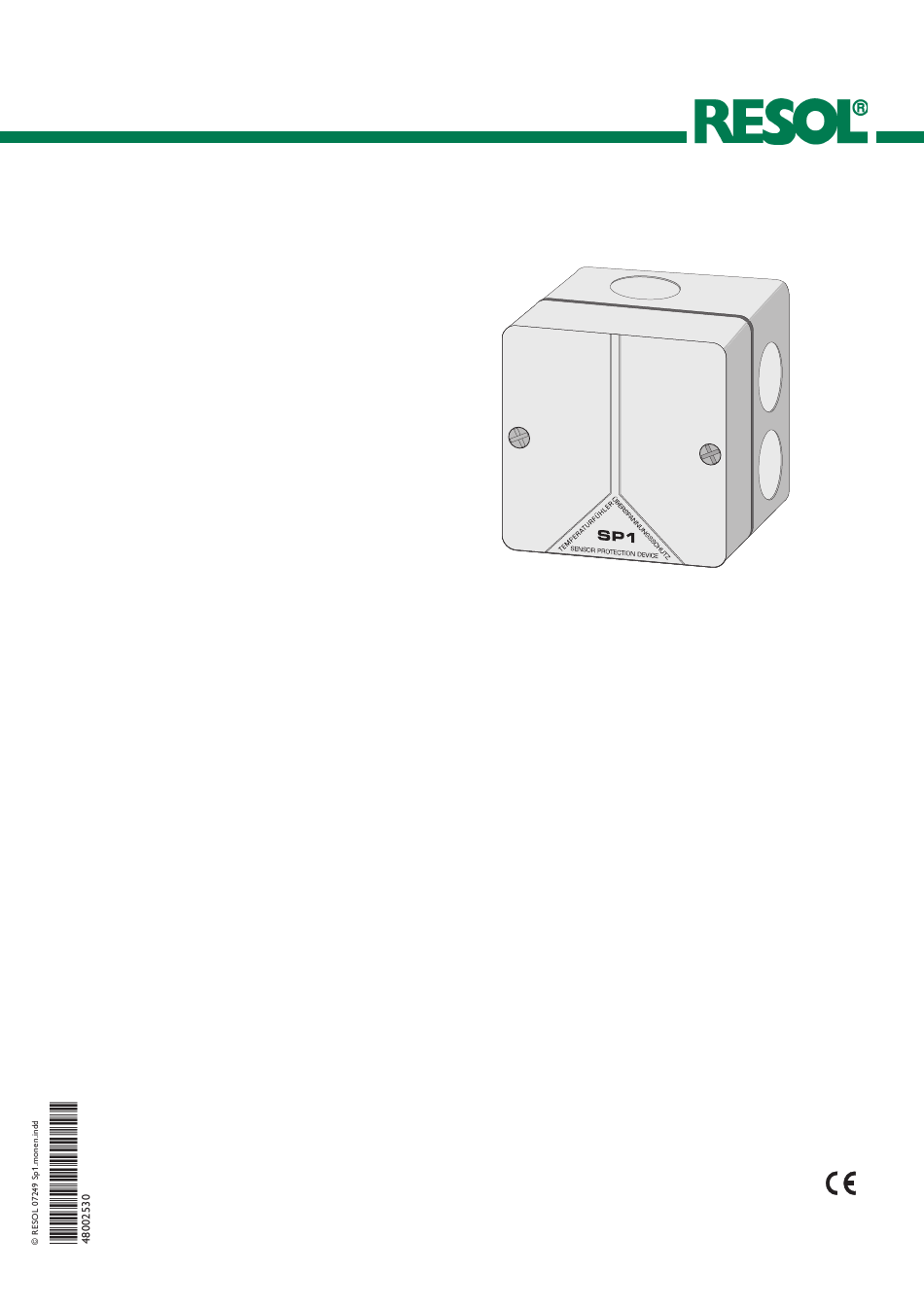

Resol SP1 Mounting

RESOL SP1
Overvoltage protection
• overvoltage protection against
local lightning strokes and other
externally induced voltages
• stable housing protected against
dripping water
• easy to mount
Safety advice
Please pay attention to the
following safety advice in order
to avoid danger and damage to
people and property.
Please pay attention to appro-
priate usage of the product (see
pages 1 and 2). Improper use
excludes all liability claims.
The device is to be operated
on safety extra-low voltage
(SELV).
Attention should be paid to:
- valid local regulations
- the statutory provisions for
prevention of industrial acci-
dents,
- the statutory provisions for
environmental protection,
- the Health and Safety at Work
Act 1974
- Part P of the Building Regula-
tions 2005
- BS7671 Requirements for
electrical installations and rele-
vant safety regulations of DIN,
EN, TRGI, TRF and VDE.
Suitably qualified personnel
should carry out installation and
maintenance.
Errors excepted and subject to
technical changes.
Overvoltage protection
The RESOL overvoltage protection device SP1 should be used in order to protect the
susceptible temperature sensors in or at the collector against induced overvoltages.
In the case of local thunderstorms, voltage peaks which could destroy the sensor can be
induced in the sensor cable. The protector diodes in the SP1 limit these overvoltages
to a value harmless to the sensor.
The best way to protect the sensor is to install this connecting box close to the sensor.
Because of the weather conditions, the SP1 is designed as a robust connecting box in a
dripping water-protected housing which can be used outdoors. Seven rubber glands for
the sensor cables in the side walls of the connecting box allow for an easy installation
in each position.
Order note
RESOL SP1
Technical data
RESOL SP1
Housing:
plastic
Protection type:
IP 65
Dimensions:
80 x 80 x 53 mm
Ambient temperature:
-25 ... +70 °C
Article-no.: 180 110 10
