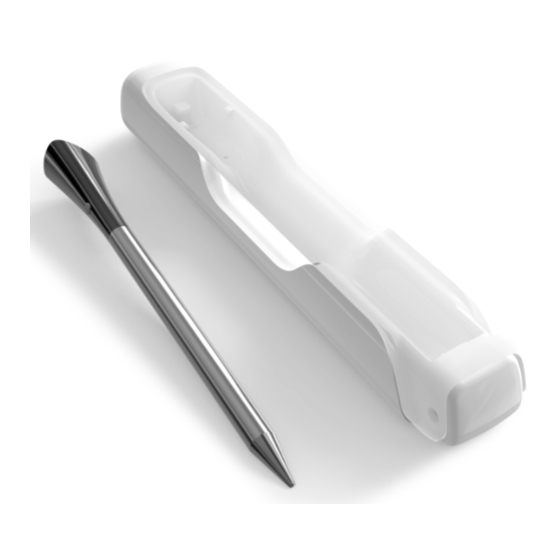

Wireless thermometer
Hide thumbs

Advertisement

Quick Links

Download this manual
Wireless Thermometer ECPIN Tutorial
1.1 Before you start using ECPIN
1. Please make sure to read the instruction manual carefully. This
information will help you to familiarise yourself with your new
device, to find out important details about its first use and how
to operate it and to get advice in the event of malfunction.
2. Following these instructions will prevent damage to your
device and loss of your statutory rights arising from
malfunction due to incorrect use.
3. We shall not be liable for any damage due to non-compliance
with these instructions or misuse of the device.
1.2 Product Description
1.2.1 Intelligent Wireless Food Thermometer (ECPIN)
Ceramic Head
1.2.2 Charger
Charging Pin
Figure 1. Intelligent Wireless Food Thermometer (ECPIN)
Cover
Figure 2. Charger for ECPIN
Charging Pole
Stainless Steel Tube
USB
Cable
ECPIN Holder

Advertisement

loading
Need help?

Need help?

Do you have a question about the ECPIN and is the answer not in the manual?

Questions and answers

Related Manuals for ECTHERM ECPIN

Summary of Contents for ECTHERM ECPIN

  • Page 1 1.2 Product Description 1.2.1 Intelligent Wireless Food Thermometer (ECPIN) Charging Pole Ceramic Head Stainless Steel Tube Figure 1. Intelligent Wireless Food Thermometer (ECPIN) 1.2.2 Charger Cable Charging Pin ECPIN Holder Cover Figure 2. Charger for ECPIN...
  • Page 2 Android version 6.0 or above Remarks: (1) The maximum operating temperature of the probe, ECPIN, is 100 °C. Please make sure the probe is inserted in the meat during cooking. (2) Bluetooth RF Frequency and transmit power Frequency Range : 2402MHz to 2480MHz;...
  • Page 3 4. Before and after use, clean ECPIN with cloth and soapy water; and dry it thoroughly. 5. ECPIN can be cleaned and washed but do not immerse it long in water. 6. Do not use ECPIN in microwave oven.
  • Page 4 10. After charging ECPIN, it is easily to take it out with your fingers at the lower part (closer to the tip) of ECPIN. Figure 4. Safety in using Wireless Thermometer 11. Do not expose the metal part of ECPIN to direct heat.
  • Page 5 1.5 Getting Started 1. Install the mobile phone software APP (ECPin Pro) in your mobile phone. 2. Clean ECPIN with cloth and soapy water. Dry it thoroughly with a clean cloth. 3. Charge ECPIN. Connect the charger to USB power source with the USB cable.
  • Page 6 2.1 Cooking with Guided Cook 1. Insert ECPIN to the meat/food. Please make sure ECPIN is fully charged. To obtain the best result, please make sure the tip of the metal tube is at the centre of the meat/food. 2. Tap the area of the information of the probe on the “Available Probes”...
  • Page 7 6. Setup temperature reminder or time reminder(optional) by tapping “Add Reminder” 7. Preheat the oven to the desirable temperature and put the meat/food into the oven. 8. Tap “Start Cook” to create a cooking task. 9. Customise cooking name (optional) and start monitoring. 10.
  • Page 8 NOTE : Please note that the ceramic head of ECPIN is HOT just after cooking. If you want to take out ECPIN from the meat/food, please use the oven gloves. Figure 10. Cooking Completed Figure 11.
  • Page 9 2.2 Use Previous Cooking Records for Cooking 1. You can use previous cook record to setup the cook instead of entering type of meat, cut of meat and doneness information every time. 2. In the cook setup screen, tap previous cook to show a list of previous records.

  • Page 10: Custom Cook

    2.3 Customise Target Temperature 1. You can select the final temperature of the meat/food instead of using the temperature setting in Guide Cook menu in order to cook the meat/food to your desirable texture and taste. 2. In the Cook Setup screen, you can touch the blue target bar and move to the final meat/food temperature or click the target text box to input target with keyboard.
  • Page 11 2.5 Setup of Reminder/Alert There are two types of reminders, Temperature and Time, that you can set during the monitoring and cooking process. For each cooking, you can set maximum of two reminders in order to help you to take actions during cooking, such as flip over the steak.
  • Page 12 2.6 Low Battery Alert, changing probes and pause cook When ECPIN is nearly running out of power, a low battery reminder will ask you to pause the cook or continue cooking with another ECPIN (probe). Please make sure you have charged up the other ECPIN.
  • Page 13 Alert. When the measured temperature is equal to or higher than 80°C or 176°F, the Overheat Alert will be triggered. Please take out ECPIN from the heat source with the oven gloves as soon as possible. Please do not immediately immerse ECPIN into cold water after taking out from the heat source.
  • Page 14 You can take the photos after cooking and share with other people by using ECPIN APP. Figure 20. Accessing Cook Record Detail and Share Cooking...
  • Page 15 5.0 Extend ECPIN Range with Wi-Fi 1.To use the ECPin connect feature, make sure you have two smart phones and they are in the same Wi-Fi network. It can be either a network hosted by a router or a mobile Wi-Fi hotspot 2.
  • Page 16 Smart Repeater SR200 is designed dedicated for the Wireless Food Thermometer ECPIN. It can automatically search the signal sent by ECPIN, duplicate the data and resend out. In addition, SR200 provides the charging function to ECPIN. SR200 can be powered up either by USB power source or AAA battery.
  • Page 17 1. This product is not intended for using by persons with ages 12 and under. 2. This product is exclusively used for charging and repeating signals of ECPIN. It should only be used as described within this User Manual. 3. Take out the battery whenever you are not using the repeater.
  • Page 18 Range Extender SR200. 2. Slide the power source selector to “BAT” location. 3. Insert ECPIN to the repeater and close the lid. Figure 23. Using Repeater for charging ECPIN 4. The LED will be flashing during charging process and turn off after completing the charging process.
  • Page 19 When the repeater is powered on, the mobile application will connected to the repeater automatically, same as the ECPIN connection process. If you see the reading of ECPIN with a repeater icon (see example in Figure 24), ECPIN Range Extender and ECPIN are functioning normally.
  • Page 20 50% and 75% 6.6 Accessing Repeater Details and Change Repeater Display When More Than One Repeater Exist 1. Click the ECPIN in the probe list page (Figure 24), you can see the cook set up page with a repeater icon (Figure 25) 2.
  • Page 21 Figure 26. Repeater Detail Dialog 6.7 “Repeater not repeating” Alert When the repeater is too far away from ECPIN that it cannot receive ECPIN signal, the “R” character in probe signal icon will disappear and a “Repeater not repeaPng” alert will be triggered.
  • Page 22 6.8 “Repeater Timeout” Alert When the applicaPon cannot find repeater signal, the repeater signal icon will disappear and a “Repeater Timeout” alert will be triggered. Please place your mobile phone closer to the repeater unPl the repeater icon is back. 6.9 “Repeater Low Battery”...
  • Page 23 7.0 Change the default setting You can change the setting of the APP in the Settings manual by tapping the setting icon at the bottom. Figure 29. Setting 7.1 Export Import Records If you would like to transfer all records to another phone or re- install the app, we suggest making use of the export import feature in settings.
  • Page 24 7.2 Changing Notification Ringtone 1. Turn off ECPin App default ringtone by unchecking sound alarm in notification setting 2. Open phone's setting > Apps > ECPin (or ECPin Pro) > Notifications. 3. Select the notification category that you want to modify...
