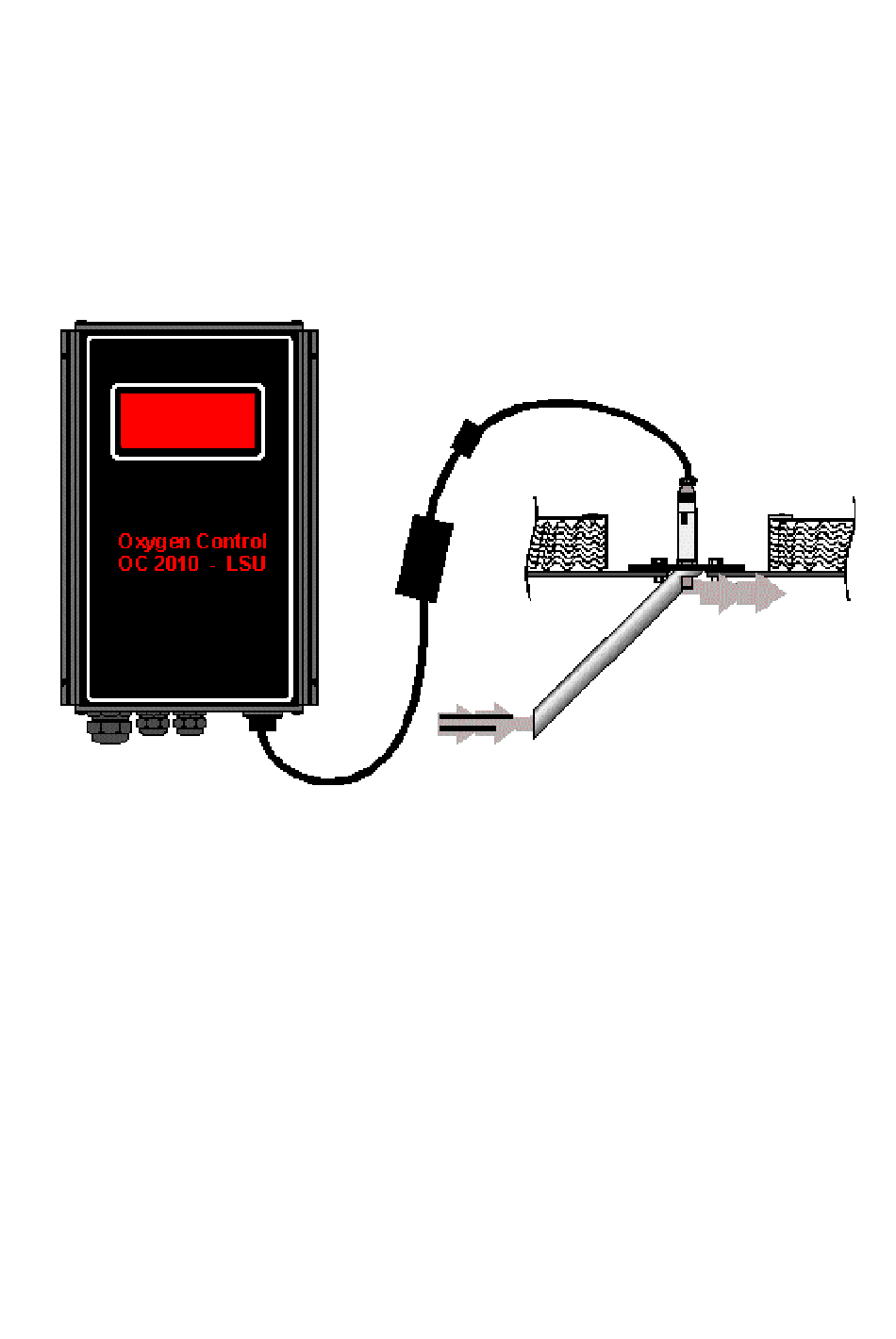

- Page 1 Oxygen Control OC 2010 - LSU Technical Information and User Guide User guide OC 2010 (UK 07/2011 CE) page 1 of 16...
-
Page 2: Table Of Contents
1.0. General information ................3 1.1. Introduction ................3 1.2. Principle of function ..............3 1.3. Technical specifications ............4 1.3.1.Wide Band Lambda Sensor ........4 1.3.2. Scan Tronic LSU-cable ........4 1.3.3. Signal amplifier ...........5 2.0. Installation..................6 2.1. Control at delivery ..............6 2.2. Instrument identification ............6 2.3. Place of installation...............6 2.4. -
Page 3: General Information
There is a special built-in trimming resistor in the sensor’s connector that defines the sensory properties which are necessary for the sensor’s function. Only in combination with the specially de- veloped Scan Tronic cable can the wide band sensor function. This cable controls the power supply to the probe’s heating element. In this way the sensor has optimal operating condi- tions. -
Page 4: Technical Specifications
Thread........M18x1,5 Calibration interval 6 month 1.3.2. Scan Tronic LSU- cable A control cable specifically developed to connect the probe with the signal repeater. One end of the cable has a 4-pin multiplug that connects to the signal repeater, while the other end of the cable has a 6-pin multiplug that connects to the probe. -
Page 5: Signal Amplifier
1.3.2. Signal amplifier Indication Output signal 0(4) - 20 mA 1.0% - 20.9% O Corresponding to 0-20 % O 0 - 4 mA switch selectable. Displayed on a three digit seven segment Maximum series resistor 600 Ohm. display with light-emitting diodes. Maximum isolation voltage to ground A switch setting (inside the cabinet) 300 V DC. -
Page 6: Installation
2.0. Installation 2.1. Control at delivery After unpacking, please confirm that the delivered items are in accordance with the packing list. Possible inconsistencies should be reported to the supplier immediately. If some parts are dam- aged please contact the shipping company. 2.2. Instrument identification The oxygen control system OC 2010-LSU, as standard, consists of a measuring probe OS 2014, and signal amplifier OC 2010-LSU, a guide tube including a gasket and 4 mounting screws are optional. -
Page 7: Installation Of The Oxygen Probe
2.4. Installation of the oxygen probe The drawing shows the fitting of the probe in the flue wall. In minor flues, the probe is mounted in a M 18 x 1,5 mm thread hole. In larger flues the guide-tube is used. The flange of this guide tube is mounted onto the wall of the flue. If possible the probe must be mounted on the topside of the flue, assuring that any possible dust and oil carbon are not deposited... -
Page 8: Installation Of The Signal Amplifier
2.5. Installation of the signal amplifier The signal amplifier is mounted in eye-level immediately below or near the probe. The unit cannot be installed more than 2,0 meters away from the probe. 2.6. Cable connections B) Mains connection, phase, neutral and Access to the connection terminals of the signal ground are established through a cable gland amplifier is obtained by removing the top- and (M20), max. -
Page 9: Operation
3.0. Operation This paragraph describes normal operation, testing prior to use and procedure at operation stop. 3.1. Function of the signal amplifier 1. Current-loop output (0(4)-20mA) 2. Alarm switches. Gives a current loop signal rising Two alarmswitches are available as a nor- with the O % in accordance with the out- mally-closed contact. -
Page 10: Adjustments And Settings
4.0. Adjustments and settings 4.1. Routine calibration The following paragraph describes routine calibration of the OS/OC 2010-LSU system. The units are calibrated prior to shipment and need no supplementary calibration before the first rutine calibration. Calibration is generally done every 6 months. Introduction Needed tools: 1. Cross-headed screw driver PZD no. 2 On calibration the measuring cell OS 20140 is 2. Screw driver for adjusting (3 mm flat). -
Page 11: Setting Of Alarm Limits
Procedure. 1. The multipole connection of the probe is 6. Apply reference gas from the reduc- removed from the signal amplifier. tion valve of the calibration gas-bottle 2. The probe is removed from the guide tube (10) and adjust the flow to 0.6 l/min (4). or flue-wall and placed in the calibration adapter. -
Page 12: Alarms With Normally Open Contacts
High Alarm The output relay will remain energized as long as the Oxygen value remains below the adjusted setpoint. Setting Slide switch 1 and 3 to „OFF“ position. Slide switch 2 to „ON“ position. Adjust the poten- tiometer marked „HI“ until the display reads the wanted value. Low Alarm The output relay will remain energized as long as the Oxygen value remains above the adjusted... -
Page 13: Selecting 0 - 20 Or 4 - 20 Ma Output
4.3. Selecting 0 - 20 or 4 - 20 mA output. The current loop output signal from OC 2010 can - by sliding the „FUNC.“ switch - be selected either as 0 - 20 mA or as 4 - 20 mA. The „FUNC.“ switch can be accessed by removing the top cover of the Signal Amplifier. -
Page 14: Passive Loop
4.4.2. Passive loop In example 2 the receiver is supplying loop power (passive loop). If in doubt whether to use an active or pas- sive loop connection it is recommended to use an active loop (see previous page) as the first alternative. Passive loop is normally only used on installa- tions where a larger number of loop powered 4 - 20 mA transmitters are used (i.e. -
Page 15: Scalation
6.0. Scalation The current loop output of OC 2010-LSU is either 4 - 20 mA or 0 - 20 mA selected according to chapter 4.3. Selecting the 0 - 20 mA output one % of oxygen equals one mA (1 : 1). Selecting 4 - 20 mA one % of oxygen equals 0.81 mA (n x 0.81) + 4 . Actual measuring range is limited to 0.5 % through 20.9 % using the underrange below 0.5 % as error indication "LLL" and overrange above 20.9 % "HHH" for ambient air calibration. Signal conversion of the logaritmic signal from the sensor to a linear output signal is done digitally and the output comes from an 8 bit D/A converter. This gives a finite resolution of 81.6 µA per step of the output signal and forms a staircase step increasing output. -
Page 16: Eu Declaration Of Conformity
Sveriesvej 16 Phone +45 89614555 8700 Horsens Mobile +45 21660085 Danmark CVR no. 25015886 www.scan-tronic.dk info@scan-tronic.dk 7.0. EU Declaration of conformity ScanTronic Sverigesvej 16 DK - 8700 Horsens Danmark According to the requirements set out by directive 93/68/EEC declare in sole responsibility that the products: Oxygen control OC 2010 -LSU to which this certificate applies, conform to the EMC directive 2004/108/EEC and its amendments and conform to the Low voltage directive 2006/95/EEC...
