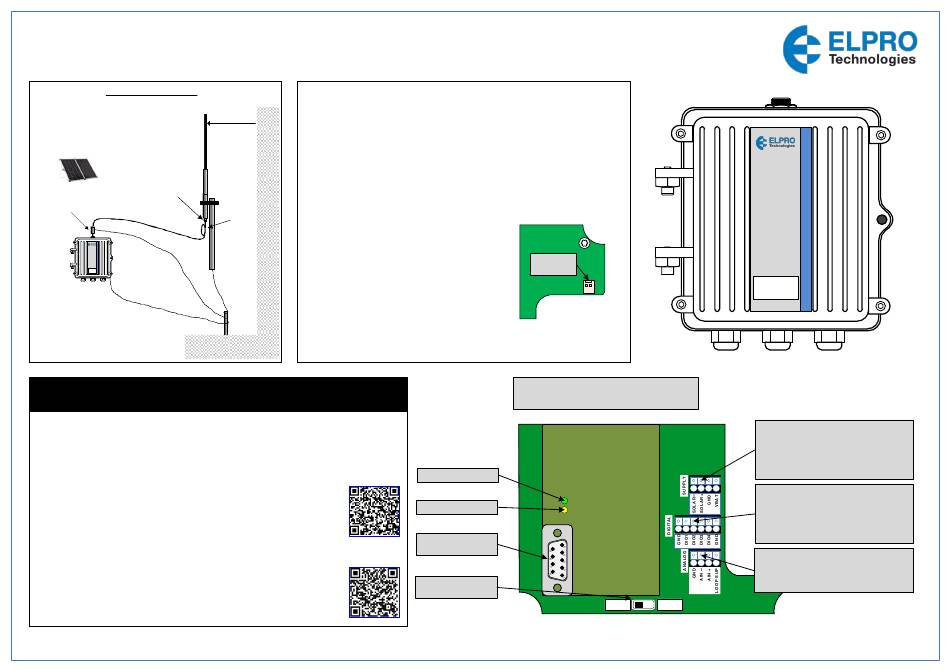

ELPRO 905U-K-IP Installation Manual

905U-K-IP Wireless Solar-Battery Enclosure
Installation Guide
Antenna Installation
SOLAR PANEL
COLINEAR
(See Notes)
ANTENNA
WEATHERPROOF
CONNECTORS WITH
SURGE "3M 23" TAPE
ARRESTOR
(OPTIONAL)
COAXIAL CABLE
905U-K-
IP
Wireless I/O
OPTIONAL
PADLOCK
PROVIDE GOOD GROUND
CONNECTION TO MAST, MODULE
CHASSIS
AND SURGE ARRESTOR
GND
Wavelength Guide
150MHz = 150cm
340MHz = 88cm
IF GROUND CONDITIONS ARE
450MHz = 66cm
POOR, INSTALL MORE THAN
900MHz = 33cm
WARNING: DO NOT DISCONNECT WHILE CIRCUIT IS LIVE UNLESS AREA IS
KNOWN TO BE NON-HAZARDOUS
Installation and Configuration
The ELPRO 905U-K is configured using the E-Series Configuration tool. Please down load the
configuration tool from the ELPRO web site:
Configuration is performed by using the ELPRO E-Series configuration PC tool and connecting
connecting to the RS-232 connector
Please download the configuration tool for the 905U-K module from the ELPRO website:
https://elpro.com.au/wp-content/uploads/2018/06/BUS_WIR_Inst_EConfig.2.1.0.412.zip
For further information on installation and configuration please refer to the 905U-K user manual that can
be found at the ELPRO web page:
https://elpro.com.au/wp-content/uploads/2018/06/bus-wir-man-905K-1.10.pdf
Battery Power Applications:
Units shipped with internal battery option do not have the battery connected during
1 wavelength
shipping.
minimum
CAUTION - Lithium Primary (LiP non-rechargeable) internal battery: DO NOT
connect external voltage directly to battery terminals or to supply/solar terminals as
this battery is NOT rechargeable and damage may result.
CAUTION - Lithium Iron Phosphate (LFP rechargeable): DO NOT connect
external voltage directly to battery terminals as this may result in damage or
overheating of battery pack.
To connect the internal battery:
·
Remove the battery holder by removing the two Philips screws and battery
STRESS RELIEF
bracket.
LOOP
·
Locate the battery connector located at the top
right of battery as shown in picture.
MAST
·
For internal battery connect the battery by
plugging battery cable connector onto the two
pin connector on circuit board located to right
of internal/external selection link, using correct
orientation (keyed).
·
The PWR/OK LED green flash every 10 seconds in normal operation. See unit
configuration on reverse side of this document.
ONE STAKE
Battery
Connection
CONNECTIONS:
Wiring Entry: IP66 M20 Cable entry Gland (5-13mm)
Terminals: PushIN connection max 0.2 – 1.5mm
905U-K
POWER/OK LED
RADIO TX LED
RS232:
Configuration port
Analog Input:
Select 4-20mA or 0-10Vdc
905U-K-IP
Wireless I/O
Weatherproof
2
wire.
Ꝋ
SOLARꟷ : Solar Panel or supply negative,
Internally connected to GND
Ꝋ
SOLAR+: Solar Panel Positive 10W MIN 2A
Max or Ext Supply 17-30Vdc
Ꝋ
GND: Battery or External Power -ve supply
Ꝋ
VBAT: External Power 11-15Vdc
Ꝋ
GND:
Ꝋ
DIO1: ON/OFF, Pulse
Ꝋ
DIO2: ON/OFF, Pulse
Ꝋ
DIO3: ON/OFF only
Ꝋ
DIO4: ON/OFF only
Ꝋ
GND:
Ꝋ
GND:
Ꝋ
AIN1 -/+: 4-20mA Current Loop or 0-10Vdc
Ꝋ
AIN2 -/+: 4-20mA Current Loop or 0-10Vdc
Ꝋ
LOOP: +24V Loop Or sensor Supply
mA Vdc
© ELPRO Technologies Pty. Ltd. 2020 Rev. 1.0
SUPPLY:
DIGITALS:
ANALOG INPUT:
