Summary of Contents for Mara SCC-84B065E

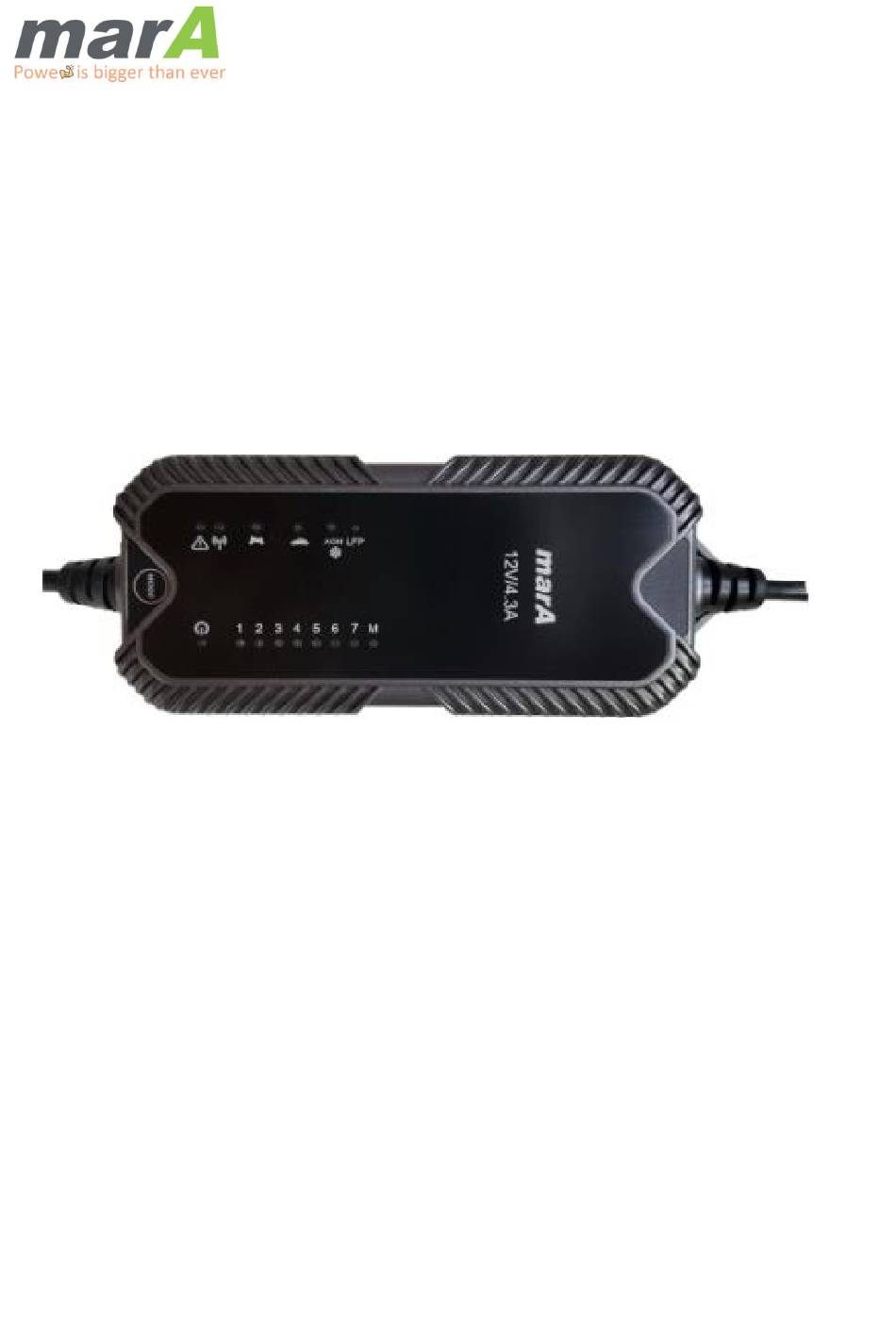

- Page 1 Smart chemical chargers User Manual SCC-84B065E Thank you for buying the marA Smart chemical chargers SCC-84B065E. Read and understand the User Manual before operating the charger. For questions regarding our chargers, view our comprehensive support information at www.mara.power.com/support.
- Page 2 IMPORTANT SAFTY INSTRUCTIONS READ BEFORE USE PLEASE SAVE THIS USER MANUAL AND READ BEFORE EACH USE. This manual will explain how to use the charger safely and effectively. Please read and follow these instructions and precautions carefully.
-
Page 3: Table Of Contents
CONTENTS INTENDED USE ..........................4 IMPORTANT SAFETY INSTRUCTIONS ..................4 1. SAVE THESE INSTRUCTIONS ..................4 2. PERSONAL SAFETY PRECAUTIONS ................6 3. PREPARING TO CHARGE ....................6 4. CHARGER LOCATION ....................... 7 5. DC CONNECTION PRECAUTIONS ................7 6. FOLLOW THESE STEPS WHEN BATTERY IS INSTALLED IN VEHICLE ....7 7. -
Page 4: Intended Use
It is quite possibly the safest and most efficient charger you will ever use. The SCC-84B065E is designed for charging all types of 12V lead-acid and 12V lithium-ion batteries, including Wet , Gel, MF, CA , EFB, AGM ,and LIB batteries. - Page 5 OPERATION. FOR THIS REASON, IT IS OF OUTMOST IMPORTANCE THAT YOU FOLLOW THE INSTRUCTIONS EACH TIME YOU USE THE CHARGER. 1.12 To reduce risk of battery explosion, follow these instructions and those published by battery manufacturer and manufacturer of any equipment you intend to use in vicinity of battery.
-
Page 6: Personal Safety Precautions
minimum distance of 20 centimeters between the radiator and your body. 2. PERSONAL SAFETY PRECAUTIONS 2.1 Consider having someone close enough by to come to your aid when you work near a lead-acid battery. 2.2 Have plenty of fresh water and soap nearby in case battery acid contacts skin, clothing, or eyes. -
Page 7: Charger Location
3.5 Study all battery manufacturer’s specific precautions while charging and recommended rates of charge. 3.6 Determine voltage of battery by referring to car owner’s manual and make sure that output voltage selector switch is set at correct voltage. If charger has adjustable charge rate, charge battery initially at lowest rate. -
Page 8: Follow These Steps When Battery Is Outside Vehicle
clip to vehicle chassis or engine block away from battery. Do not connect clip to carburetor, fuel lines, or sheet-metal body parts. Connect to a heavy gauge metal part of the frame or engine block. 6.6 For positive-grounded vehicle, connect NEGATIVE (BLACK) clip from battery charger to NEGATIVE (NEG, N, –) ungrounded post of battery. -
Page 9: Overview
have a proper grounded outlet installed by a qualified electrician. An improper connection can result in a risk of an electric shock or electrocution. NOTE: Pursuant to Canadian Regulations, use of an adapter plug is not allowed in Canada. Use of an adapter plug in the United States is not recommended and should not be used. -
Page 10: Include Accessories
① ② ⑨ ⑩ 1. Mode Button 6. Car Battery Program 2. Power LED 7. Snow/AGM program 3. Error LED 8. LFP Battery program 4. Bluetooth LED 9. Charging programs 5. Motor bike Battery Program 10. Maintenance program INCLUDE ACCESSORIES Connect Eyelet Clamp (Ring Terminals &... -
Page 11: Charging Modes
Supply Plug CHARGING MODES The SCC-84B065E has 7 modes 12V Car , 12V SNOW/AGM, 12V motor bike, 12V LiFePO4. Some charge modes must be pressed and held for 3 seconds to enter the mode. These “Press and Hold” modes are advanced charging modes that require your full... - Page 12 attention before selecting. “Press and Hold” are It is important to understand the differences and purpose of each charge mode. Do not operate the charger until you confirm the appropriate charge mode for your battery. Below is a brief description: Mode Battery size (Ah) Explanation...
-
Page 13: Charging Steps
CHARGING STEPS Step 1: Pre-Charge Checks the battery’s initial condition, including voltage, state-of-charge and health, to determine if the battery is stable before charging. Step 2: CC (Constant Current) Starts the charging process with maximum current until approximately 80% battery capacity . Step 3: CV (Constant Voltage) Charging with declining current to maximize up to 100% battery capacity . -
Page 14: Technical Specifications
LiFePO4 Battery & Li-ion Battery Dimensions 162x71.3x44.3mm( 6.4x2.8. x1.7in) (LxWxH): Weight 0.51 kg (1.13 Pounds ) communication Bluetooth ( SCC-84B065E) ERROR LED If the error LED indication will red, check the following: Troubleshooting : CAUSE How to do No Battery... - Page 15 7F,No 639, Sec. 5, Chongxin Rd., Sanchong Dist, 24150.,New Taipei City, Taiwan Tel: 886-2-2995-3385 Fax: 886-2-2995-3395 Email: info@marapower.com...
