Neptune ACKPWSK Quick Reference Manual

MODELS
ACKPWSK

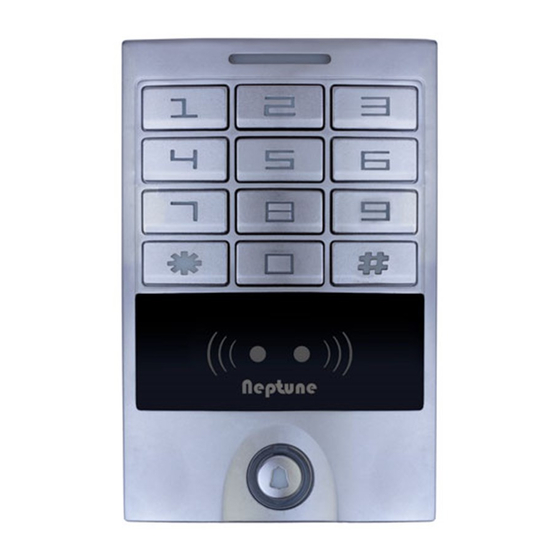

NEPTUNE KEYPAD TOUCH EM/HID S/ALONE or WIEGAND IP65 (2x6)
ACKPWSKWM NEPTUNE KEYPAD BUTTON MIFARE S/ALONE or WIEGAND IP65 (3X4)
PROGRAMMING
Colour Indicators refer to LED status lights on Keypad
DEFAULT MASTER CODE
888888
CHANGE MASTER CODE
0
1
<NEW MASTER CODE> # <REPEAT> #
2
MASTER CODE MUST BE BETWEEN 6-8 DIGITS.
PRESS * TO EXIT PROGRAMMING
ADD PIN USERS
1
1
2 <USER NUMBER (1-2000)> #
<PIN NUMBER> #
3
ADDITIONAL USERS CAN BE ADDED BY REPEATING STEPS 2 & 3
1 1 # 9384 # 2 # 2958 # 3 # 9876 # *
The programming above added 3 users with unique pin numbers
PIN NUMBERS MUST BE BETWEEN 4-6 DIGITS
PRESS * TO EXIT PROGRAMMING
ADD CARD USERS
1 1
2 <USER NUMBER (1-2000)> #
3 <BADGE CARD>
ADDITIONAL USERS CAN BE ADDED BY REPEATING STEPS 2 & 3
1 1 # <BADGE CARD> 2 # <BADGE CARD> *
The programming above added 2 users with cards
THE ABOVE METHOD IS PREFERRED FOR CARD PROGRAMMING
SO INSTALLERS CAN NOTE WHICH USER NUMBER EACH CARD
IS ASSIGNED TO.
PRESS * TO EXIT PROGRAMMING
TSN18358-1 Rev.1 - Page 1
NEPTUNE
ENTER PROGRAMMING MODE
*
EXAMPLE
EXAMPLE
Quick Reference Guide
<MASTER CODE> #
ADD CARD USERS WITH MANAGER CARDS
1 <BADGE MANAGER ADD CARD>
<BADGE USER CARD BEING ADDED>
2
3 <BADGE MANAGER ADD CARD>
THIS METHOD DOES NOT REQUIRE PROGRAMMING MODE
METHOD IS IDENTICAL FOR DELETING USERS WITH MANAGER CARD
DELETE USERS BY USER NUMBER
1
2
ALL USERS CAN BE DELETED USING THE FOLLOWING STEPS
1
2
PIN NUMBERS MUST BE BETWEEN 4-6 DIGITS
DELETE USERS BY CARD
1
2
THSI METHOD REQUIRES EXISTING CARD TO BE PRESENT
1
2
2
<USER NUMBER (1-2000)> #
2
0000 #
PRESS * TO EXIT PROGRAMMING
2
<BADGE CARD>
PRESS * TO EXIT PROGRAMMING
SET DOOR RELAY TIME
4
0 # (50ms / 5 seconds)
DEFAULT
1 - 99 # (Another time in seconds)
PRESS * TO EXIT PROGRAMMING
24th December, 2018
