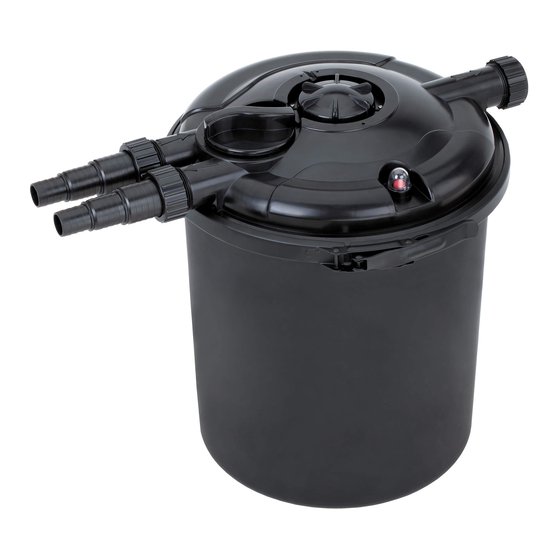

EC2600 • EC2600U • EC3900 • EC3900U
Eco-Clear
Pressurized Filter
with Cleaning Indicator and Backwash Feature
Instructions for Operation • Safety • Warranty

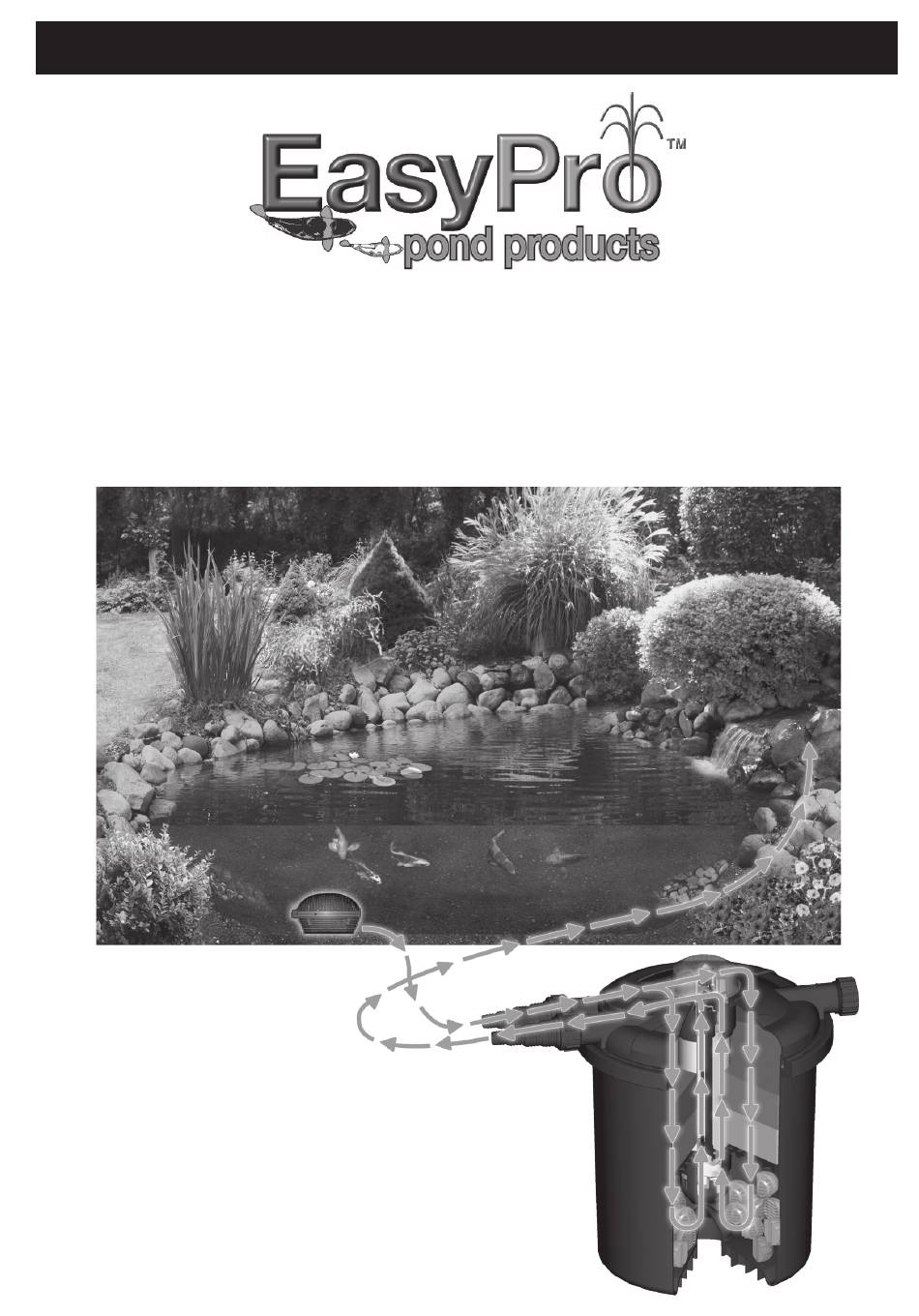

How does the
Eco-Clear
Pressure Filter work?
These filters receive dirty water from the
pump and return sparkling clear water to your
pond. The EasyPro pressure filter is ideal for
pond keepers who want simplicity, clear water
and an attractive, hidden filter system.
1
Advertisement
Related Manuals for EasyPro Eco-Clear EC2600
Summary of Contents for EasyPro Eco-Clear EC2600
- Page 1 Eco-Clear Pressure Filter work? These filters receive dirty water from the pump and return sparkling clear water to your pond. The EasyPro pressure filter is ideal for pond keepers who want simplicity, clear water and an attractive, hidden filter system.
- Page 2 • This product is not submersible, and it must be situated where it cannot fall into the water. However, the design is weather resistant, and EasyPro Eco-Clear filters can safely be installed outdoors. • Direct exposure to ultraviolet light can damage eyes and skin. Do not attempt to view the lamp when lit.
-
Page 3: Operation Tips
8. Secure the prepared barb fittings to the filter inlet (arrow pointing in) and outlet (arrow pointing out). Be sure to use the gasket as shown and hand tighten INLET nut onto filter. Do not overtighten. 9. Connect the tubing from the pump to the barbed fitting or 1 1/2"... - Page 4 Backwashing, Cleaning and Replacing the Filter Pads. When installed on a dirty pond, the foam pads will need to be cleaned more frequently until the pond clears. As pond conditions stabilize, the time between cleanings will increase. Pads are meant to be slightly dirty, there is no need to overclean them. The EC2600/2600U/3900/3900U units include a cleaning indicator that pops up when pads require backwashing or cleaning.
- Page 5 Full Pad Cleaning or Replacement 1. For units with UV, be sure to turn this off or unplug it before servicing. Unplug the pump before opening. 2. Loosen the locking nuts that secure the tubing connectors to the filter and remove them from the lid. Be sure not to lose the gaskets that seal the connectors to the filter.
- Page 6 UV Lamp and Quartz Sleeve Replacement For units with UV lights it is recommended that a new lamp be installed after 12 months of use. While the light might still turn on, the effectiveness of the UV light diminishes over time. Quartz sleeves are typically long lasting and only require replacement if they break or develop a leak due to the age of the seals.
- Page 7 UV Quartz Sleeve Replacement 1. Unplug the UV unit and the pump. 2. Remove thumbscrew from clear lid on top of unit. Remove the clear lid. TIP: Use it to hold the various screws during the process. 3. Remove the two screws and the plastic cord retainer clip. 4.
- Page 8 EC2600U Exploded View Thumb Screw Top Cover Switch Power Cord Micro Switch 18 Watt UV Lamp Stabilizer Interior Cap Sleeve Top Fitting Quartz Sleeve Sleeve Gasket Cleaning Indicator Filter Lid Backwash Dial Clamp Barb Hose Connector Plug Gasket Cord Retainer Coarse Pad Clip Fine Pad...
- Page 9 EC3900U Exploded View Thumb Screw Top Cover Switch Power Cord Micro Switch 24 Watt UV Lamp Stabilizer Interior Cap Sleeve Top Fitting Quartz Sleeve Sleeve Gasket Clamp Cleaning Indicator Filter Lid Backwash Dial Barb Hose Coarse Pad Connector Plug Gasket Medium Pad Cord Retainer Clip...
-
Page 10: Filter Specifications
Filter Specifications EC2600 EC2600U Maximum Pond Size with Fish* (gallons) 1300 1300 Maximum Pond Size without Fish* (gallons) 2600 2600 UV/Watts 18 Watts Inlet/Outlet Sizes - Hose Barb 1", 1 ", 1 " 1", 1 ", 1 " Inlet/Outlet Size - PVC Adaptor "... -
Page 11: Troubleshooting
Troubleshooting If there is no water through the filter to the pond… • Check if the pump is on and working. • Check if the pump is clogged and clear debris if needed. • Check if the plumbing lines to and from the filter are blocked or loose/leaking. •... - Page 12 EasyPro shall not be held liable for any loss of fish, plants or any other livestock as a result of any failure or defect of this Product. This warranty gives you specific legal rights, and you may also have other rights that vary from State to State.
