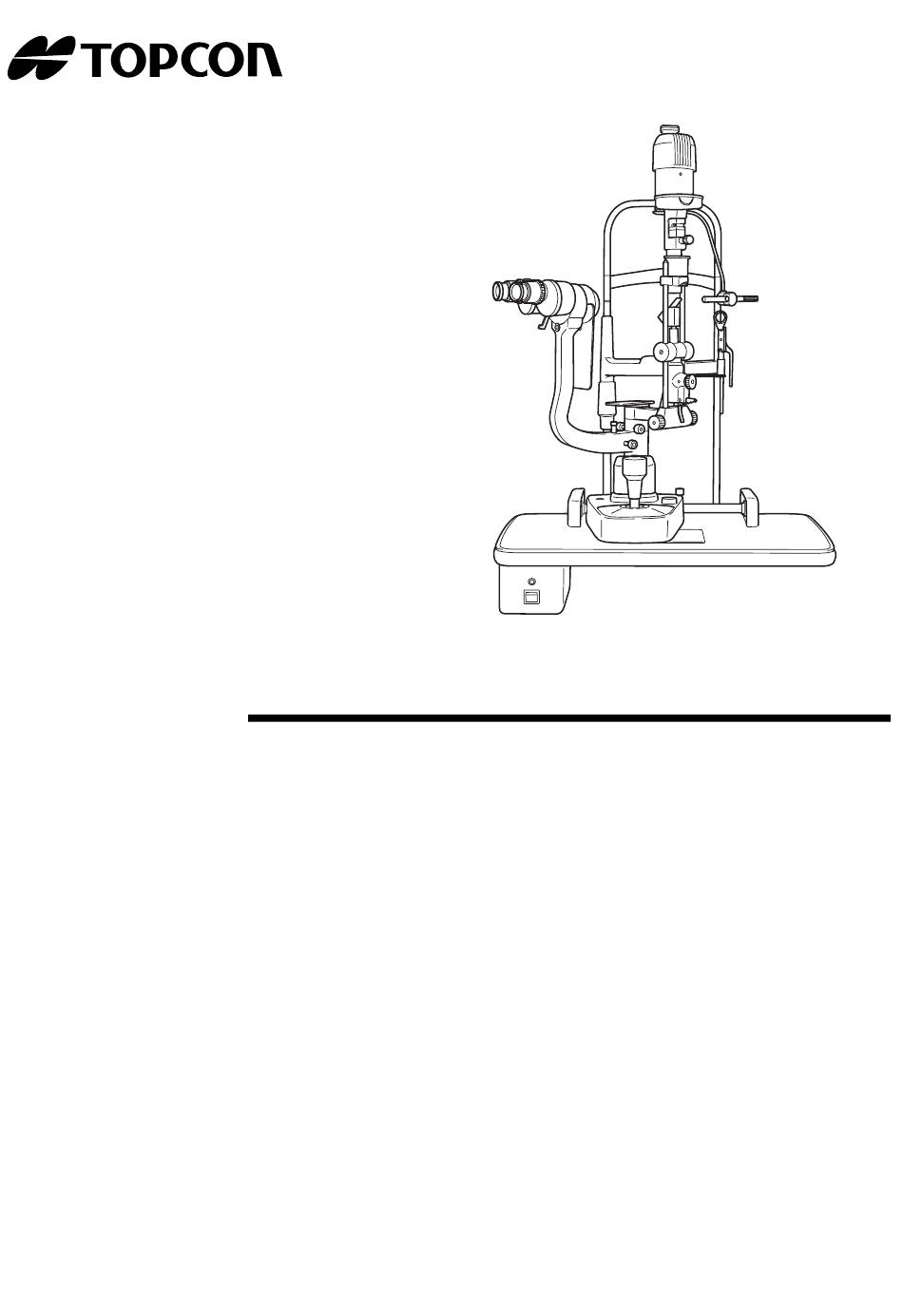

  • Page 1 INSTRUCTION MANUAL SLIT LAMP SL-3E...

  • Page 2: Introduction

    INTRODUCTION Thank you for purchasing the TOPCON SL-3E Slit Lamp. This instrument is used for the magnified observation of the anterior segment of the eye and its parts. This SL-3E has the following features: • Smooth mechanical movements • Bright and clear observation of the eye with natural color rendition •...
  • Page 3 (4) Do not store the instrument where chemicals are stored or gas is generated. 3. Usage period 8 years from delivery providing regular maintenance is performed (according to the self-cer- tification [TOPCON data]) ENVIRONMENTAL CONDITIONS FOR PACKAGING IN TRANSPORTATION Temperature : -20°C ~ 50°C...

  • Page 4: Displays For Safe Use

    DISPLAYS FOR SAFE USE In order to ensure the safe use of the product and to prevent harm to the operator and others, or damage to property, a number of important warnings are placed on the product and inserted in the instruction manual.

  • Page 5: Safety Cautions

    • TOPCON shall not take any responsibility for damage derived from the inability to use this equipment, such as a loss of business profit and suspension of business.

  • Page 6: Warning Indications And Positions

    To ensure safety, warning labels are placed on the instrument body. Use the instrument according to these warning instructions. If any of the following labels are miss- ing, contact your dealer or TOPCON (see the back cover for contact information). CAUTION To prevent electric shock, switch off the power supply and remove the power cable before replacing the bulb.

  • Page 7: Table Of Contents

    CONTENTS INTRODUCTION ........................1 DISPLAYS FOR SAFE USE ....................3 SAFETY CAUTIONS ......................4 MAINTENANCE........................4 ESCAPE CLAUSES......................4 WARNING INDICATIONS AND POSITIONS..............5 CONFIGURATION ........................7 NAMES OF MAIN BODY COMPONENTS .................7 CONFIGURATION OF PARTS IN CONTACT WITH PATIENT........... 7 STANDARD ACCESSORIES .....................8 COMPONENTS ........................10 COMPONENTS ........................10...

  • Page 8: Configuration

    CONFIGURATION NAMES OF MAIN BODY COMPONENTS Lamphouse Forehead rest Aperture and slit length display window Chinrest Filter selection lever Level marker Aperture and slit Diopter adjustment length control knob ring Fixation target Eyepiece Mirror Magnification changer lever Microscope Hruby lens (Option) attaching screw Hruby lens holder Chinrest adjuster...

  • Page 9: Standard Accessories

    STANDARD ACCESSORIES Make sure that all the following standard accessories are included. Figures in parentheses are the quantities. Spare fixation target bulb (1) Focusing test rod (1) Spare illumination bulb (1) Spare chinrest paper pin (2) Spare fuse Brush (1) (Taped onto the rear of the power supply) (3) Dust cover (1) Instruction manual (1)
  • Page 10 Short mirror (1) Screwdriver (large) (1) Spare long mirror (1) Phillips screwdriver (1) Spare socket (1) Wrench (not supplied with Unit Model Slit Lamp) (1) CONFIGURATION...

  • Page 11: Components

    COMPONENTS COMPONENTS (1) Illumination assembly (2) Chinrest assembly (3) Chinrest paper (4) Breath shield (5) Arm hole cover (6) Instrument type table (6)' Unit type table (7) Rail cover (w/power supply) (w/power supply) (8) Base assembly (9) Microscope (with 10× (10) Power cable magnification eyepieces) COMPONENTS...
  • Page 12 Article name Q'ty (1) Illumination assembly (2) Chinrest assembly (3) Chinrest paper (4) Breath shield (5) Arm hole cover (6) Instrument type table (w/power supply) (6)' Unit type table (w/power supply) (7) Rail cover (8) Base assembly (9) Microscope (with 10× magnification eyepieces) (10) Power cable COMPONENTS...

  • Page 13: Assembly Procedure

    ASSEMBLY PROCEDURE ASSEMBLY PROCEDURE No special tools are required. Included tools are: • Large screwdriver • Small screwdriver • Phillips screwdriver • Wrench (not supplied with unit model slit lamps) (1) Mounting the Table (a) To attach the table on the instrument table AIT-15, use the four 8×24mm bolts with locking washers.
  • Page 14 (2) Mounting the Chinrest Chinrest cord Chinrest mounting plate * Remove the four screws which are attached to the chinrest mounting plate with the Phillips screwdriver. Screw * Place the chinrest cord in the gap between the chinrest mounting plate and the chinrest assembly.
  • Page 15 (4) Mounting the Illumination Arm 30° to 90° Index Illumination arm locking knob * Loosen the illumination arm locking knob which is located on the base assembly. * Turn the brass bearing on the arm support shaft so that the red dot is 30° to 90° from the shaft index.
  • Page 16 (6) Mounting the Breath Shield Breath shield attachment screw * Remove the breath shield attachment screw from the microscope arm. * Pass the attachment screw through the opening in the breath shield and re-screw it into the arm. (7) Removing the Illumination Arm Shipping Pad Rubber band * The pad is attached to protect the slit closure mechanism of the illumination arm assembly during shipping.
  • Page 17 (b) Connect the chinrest cable, main body cable and power cable to the power supply. Cable clip (c) Remove the cable clips from the bottom of the table, slip them over the chinrest and power cables and re-attach them to the table. (9) Installing the Chinrest Paper * Remove the two pins from the chinrest.
  • Page 18 * With the unit model, an accessory box is supplied to store the spare parts. (11) Mounting the Hruby Lens and Hruby Lens Guide Plate (Option) Mount the Hruby lens holder and the Hruby lens rail unit onto the chinrest assembly, using four screws.

  • Page 19: Checking Procedure

    CHECKING PROCEDURE (1) Power Plug * Make sure that the instrument is always properly grounded. (2) Illumination and Instrument Functions * Turn the power supply on and observe that the illumination is passing through the opened slit controls. * Check to insure that the fixation device is illuminated. * Check to see that the slit width and length controls, filter lever and magnification changer lever operate smoothly and properly.

  • Page 20: Operation Procedures

    OPERATION PROCEDURES PREPARATION-DIOPTER COMPENSATION AND INTERPUPILLARY DIS- TANCE ADJUSTMENT Before using the instrument, always carry out the diopter compensation and interpupillary distance adjustments. (1) Use of the focusing test rod The focusing test rod, which is a standard accessory, is used to establish the proper micro- scope settings for each use.

  • Page 21: Patient Position And Fixation Target

    * Follow the same procedure for the other ocular. Diopter scale * Denote the diopter values on each ocular for future reference. (4) Interpupillary distance adjustment While looking through the eyepieces at the image on the focusing test rod, adjust the converg- ing binocular's prism box, so that the image is fused and a stereoscopic image results.

  • Page 22: Base Operation

    (2) To establish patient fixation To maintain patient fixation, have the patient observe the fixation target with the eye not being tested. To alter fixation, move the position of the target by the fixation target lever. The fixation target, which allows diopter compensation, provides a dot and a concentric circle target.

  • Page 23: Operation Of The Illumination Unit

    (5) Focusing * Gross adjustment for alignment or focusing is done by the operation described in (1) * Fine adjustment for alignment or focusing should be done by the operations described in (2) and (3) above while looking through the microscope. OPERATION OF THE ILLUMINATION UNIT (1) Altering the slit size By operating the slit width control knob, the slit width can be changed from 0 to 9mm (at the...
  • Page 24 (2) Changing aperture and slit length By operating the aperture and slit length control knob, 7 different circular beams of light are available at full aperture: 9, 8, 5, 3, 1, and 0.2mm dia. With a slit image, the slit length can be changed continuously from 1 to 8mm with this knob.
  • Page 25 (4) Decentering the slit beam With the Model SL-3E, the illumination can be moved from the parafocal position with the microscope by loosening the centering control. The illuminated image then would move away from the center of the microscope's field of view. It is of particular benefit in indirect retro-illu- mination techniques.
  • Page 26 (6) Reflection mirror Two mirrors are supplied with the SL-3E. One is a long mirror and the other is a short mirror which has no protruding surfaces. Usually, for most examinations, the long mirror is used. However, when the angle between the illumination unit and the microscope is within approxi- mately 3°...

  • Page 27: Fundus Observation With The Hruby Lens (Option)

    FUNDUS OBSERVATION WITH THE HRUBY LENS (OPTION) In routine applications, only the anterior segment of the vitreous body can be examined because of the refraction effects of the cornea and crystalline lens. However, with the Hruby Lens, exami- nation of the fundus and the posterior segment of the vitreous body is possible. Operation procedure: (1) The pupil should be well dilated by administering a mydriatic approximately 20 minutes before the examination.

  • Page 28: Troubleshooting

    TROUBLESHOOTING TROUBLESHOOTING GUIDE If any problem should occur, first consult the following trouble shooting table, and follow the suggested instructions. Then, if the trouble is not corrected, contact your nearest TOPCON dealer. Trouble Possible Cause Remedy Refer to No illumination Power cable is not properly con- Connect cable to the outlet.

  • Page 29: Specifications

    SPECIFICATIONS MICROSCOPE Type Stereoscopic microscope Magnification selection Two steps by objective lens rotation Eyepieces 10× and 16× Objectives × Eyepieces = Magnification/Field of view 1× 10× 10× 18mm diameter Magnification ratio 1.6× 10× 16× 14.5mm diameter (Field of view) 1× 16×...
  • Page 30 DIMENSION & WEIGHTS Table model 550mm × 370mm Unit model 440mm × 350mm Weight 21kg (Table model) 20kg (Unit model) * Subject to change in design and/or specifications without advance notice. SPECIFICATIONS...

  • Page 31: Electromagnetic Compatibility

    Guidance and manufacturer's declaration - electromagnetic emissions The SL-3E is intended for use in the electromagnetic environment specified below. The customer or the user of the SL-3E should assure that it is used in such an environment. Emissions test Compliance...
  • Page 32 Guidance and manufacturer's declaration - electromagnetic immunity The SL-3E is intended for use in the electromagnetic environment specified below. The customer or the user of the SL-3E should assure that it is used in such an environment. IEC 60601 Compliance...
  • Page 33 Guidance and manufacturer's declaration - electromagnetic immunity The SL-3E is intended for use in the electromagnetic environment specified below. The customer or the user of the SL-3E should assure that it is used in such an environment. IEC 60601 Compliance...
  • Page 34 Recommended separation distance between portable and mobile RF communications equipment and the SL-3E The SL-3E is intended for use in an electromagnetic environment in which radiated RF dis- turbances are controlled. The customer or the user of the SL-3E can help prevent electro-...

  • Page 35: System Classification

    SL-3E is the ordinary instrument (enclosed instrument without protection against ingress of water) • Methods of sterilization or disinfection recommended by the manufacture: SL-3E does not have any part to be sterilized or disinfected. • Not AP or APG equipment PURPOSE OF USE This instrument is used for the enlargement observation of eyeballs and the parts.

  • Page 36: Shape Of Plug

    SHAPE OF PLUG Country Voltage/frequency Shape of plug Mexico 110V/50Hz Type C&E Argentina 220V/60Hz Type A Peru 220V/60Hz Type A Venezuela 110V/50Hz Type C&E Bolivia & Paraguay 220V/60Hz Type A (Most common) Type H (Infrequently) Chile 220V/60Hz Type A Colombia 110V/50Hz Type C Brazil...

  • Page 37: Maintenance

    MAINTENANCE DAILY CARE * Remove dust from the instrument except for the lenses and prisms, with a dry soft cloth at regular intervals. * This instrument may be adversely affected by dust. Use the dust cover when not in use. REPLACING THE BULB (1) Replacing the main bulb When replacing the main bulb, use care and follow the prescribed procedure, as the internal metal...
  • Page 38 * Turn the power switch ON and check to see that the new bulb is illuminated. Guide (2) Replacing the fixation target bulb * Turn the power switch OFF. * Loosen the locking screw and remove the fixation target. (Do not over-loosen the locking screw, or it may drop.) * Hold the top of the bulb and pull it out;...

  • Page 39: Replacing The Fuse

    REPLACING THE FUSE * First, turn the power switch OFF, and remove the power cable from the outlet. * With a screwdriver, turn the center of the fuse holder at the back of the power unit. The fuse will come out. * Replace it with a new fuse and then tighten the center of the fuse holder.

  • Page 40: Adjustment Of The Inclination Movement

    ADJUSTMENT OF THE INCLINATION MOVEMENT If the tension on the inclination mechanism becomes too light, the proper movement can be re- obtained by tightening the screws on both sides of the pivot joint. Screw CLEANING Cleaning applied parts Wipe the forehead rest and chinrest with a cloth moistened with a tepid solution of neutral detergent for kitchenware (1) Cleaning the lens and mirror If any dust settles on the lens or mirror, remove it as follows:...

  • Page 41: Ordering Supplies

    ORDERING SUPPLIES To order the following replacement parts, be sure to specify the product name, part number and quantity required. Product name Part number Appearance Illumination bulb 40340 20700 Socket 44613 25100 Chinrest paper 40310 40820 Fuse T 2A 250V: 100V-120V T24000030A T 1A 250V: 220V-240V T24000031A...

  • Page 42: Optional Accessories

    OPTIONAL ACCESSORIES PACHOMETER ATTACHMENT Pachometer Eyepiece Used for measuring the corneal thickness. * Two LED alignment targets are projected onto the cornea to assure repeatable alignment of the slit beam. With the Mishima-Hedby method, the slit beam can be accurately positioned perpendicular to the corneal surface.

  • Page 43: Hruby Lens

    HRUBY LENS See "(11) Mounting the Hruby Lens and Hruby Lens Guide Plate (Option)" on P.17 for mount- ing, and "FUNDUS OBSERVATION WITH THE HRUBY LENS (OPTION)" on P.24 for using. APPLANATION TONOMETER Depending on personal preference, either the Haag-Streit AG Model R-900 or Model T-900 could be used for measuring intraocular pressure.
  • Page 44 When contacting us, please have the following information at hand re your unit: • Machine type: SL-3E • Manufacturing No. (Displayed on the rating plate on the left of the base.) • Period of Usage (i. e. the purchase date).
