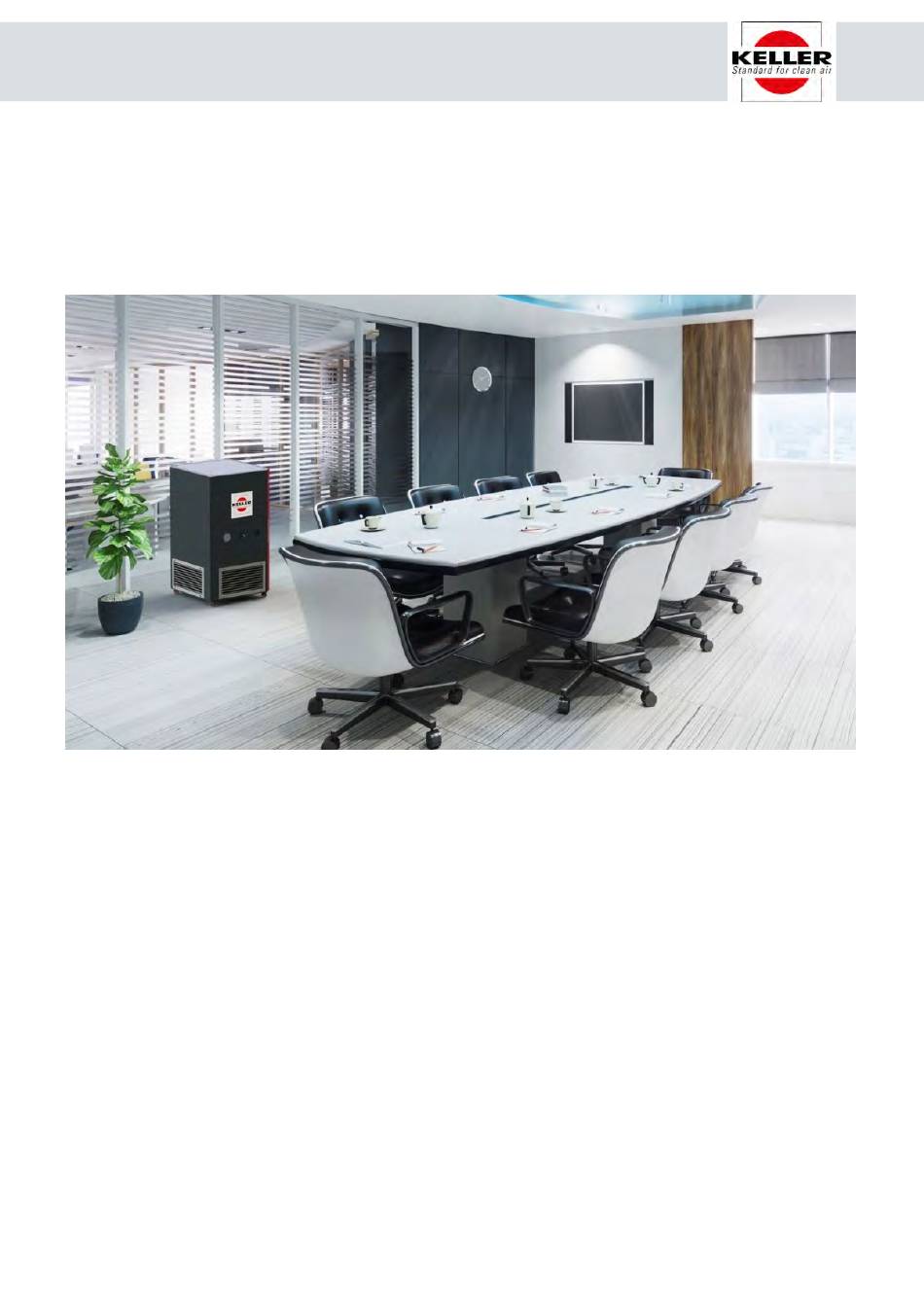

- Page 1 Original operating manual Operating Manual Room air extraction unit AmbiCube Version: 2 Release Date: 14/12/2020...
- Page 2 © 2020 Keller Lufttechnik GmbH + Co.KG Copyright of this document: Copyright of this document remains with Keller Lufttechnik GmbH + Co. KG This operating manual is designed for installation, operating, monitoring and servicing staff. It contains regu- lations and directives as well as drawings of a technical nature. All information included in this manual should be handled as strictly confidential.
-
Page 3: Table Of Contents
Operating Manual AmbiCube Contents Contents Maintenance .........27 10.1 Maintenance table........27 Technical Data ........5 10.2 Check setting value........27 10.3 Check air outlet ........28 General information......7 10.4 Remove objects below the air outlet How to use this operating manual ..7 grid ............28 Qualification of the personnel ....7... -
Page 4: Contents
Operating Manual AmbiCube Contents Page 4 of 40 Version: 2 | en Subject to technical changes... -
Page 5: Technical Data
Operating Manual AmbiCube Technical Data 1 Technical Data General Specification Value Unit Description AmbiCube Type of separator Room air extraction unit Maximum operating air volume flow 1,000 m³/h Maximum sound pressure level at 1 m dis- < 53 / < 50... - Page 6 Operating Manual AmbiCube Technical Data Specification Value Unit Separation efficiency (integral value) ≥ 99.995 Each HEPA filter is subject to individual testing in accordance with EN 1822 . The original test certificate is enclosed with each HEPA filter. The indicated values refer to MPPS (most penetrating particle size / minimum separation efficiency).
-
Page 7: General Information
All activities must only be carried out in accordance with the instructions in this op- erating manual and not on the basis of assumptions. In case of doubt or if you re- quire further information, please contact Keller Lufttechnik GmbH + Co KG. 2.2 Qualification of the personnel Work and activities on the product may only be performed by persons with the ap- propriate qualifications. - Page 8 Operating Manual AmbiCube General information Activity End user Qualified person- Competent person ✓ ✓ ✓ Visual inspections ✓ ✓ ✓ Disassembly ✓ ✓ ✓ Disposal Table 1: Overview of activities End user The end user has been instructed in the product by the operator and has been in- formed about possible dangers in case of improper behavior.
-
Page 9: Structure Of Safety Notes
Operating Manual AmbiCube General information 2.3 Structure of safety notes In this operation instructions is called attention to all potential hazards by means of safety notes. In case there is a measure to avert a danger, safety notes are struc-... -
Page 10: Structure Of Instructions
Operating Manual AmbiCube General information Draws attention to dangerous situations with possible personal injury and to alert to potential damage to the machinery. Danger by electrical power. Work must only be carried out by trained electricians. Danger of hand injuries Risk of crushing. -
Page 11: Warranty
General information 2.6 Warranty Keller Lufttechnik warrants that the product described in this operating manual complies with the product listed in the declaration of conformity as well as with the relevant German and European regulations. The specific regulations of the recipi- ent country could possibly not be taken into account, as the manufacturer may not know the recipient country. -
Page 12: Safety
Do not operate the system on the basis of assumptions. Any other usage of the system is seen as improper usage. Keller Lufttechnik GmbH + Co. KG is not liable for possible damage to persons or material resulting from improper usage. -
Page 13: Forseeable Misuse
The list of inadmissible use does not claim to be complete. The separator may only be used under the conditions specified in the chapter "Intended Use". Any other usage of the system is seen as improper usage. Keller Lufttechnik GmbH + Co. KG is not liable for possible damage to persons or material resulting from improper usage. -
Page 14: Functional Description
Operating Manual AmbiCube Functional description 4 Functional description 4.1 General The system is designed to remove the finest particles from the room air. The finest particles include fine dust, pollen, bacteria and viruses. Blow-out opening Second filter stage First filter stage Air intake openings Illustration 1: Sectional view of the room air cleaner... -
Page 15: Filter Elements
Operating Manual AmbiCube Functional description 4.3 Filter elements Inside the air purifier there are two filter elements. The sucked in air flows first through the first filter element (first filter stage) and then through the second filter element (second filter stage). -
Page 16: Transport And Storage Prior To First Commissioning
Operating Manual AmbiCube Transport and storage prior to first commissioning 5 Transport and storage prior to first commissioning 5.1 Transportation The room air cleaner is shrink-wrapped in foil and delivered secured on a dispos- able pallet with tension straps. Subsequent work steps must be carried out after delivery: 1.) Check the scope of delivery immediately after receipt. -
Page 17: Assembly And First Commissioning
Operating Manual AmbiCube Assembly and first commissioning 6 Assembly and first commissioning 6.1 Requirements for the installation site The following requirements for the installation site must be met: – The installation site must have an even and solid base. – The installation site must meet the necessary static requirements, such as suf- ficient load-bearing capacity for ceilings. -
Page 18: First Commissioning
Operating Manual AmbiCube Assembly and first commissioning Castor Lever for the break Illustration 4: Castor's break 5.) Push the room air cleaner to the desired installation location. 6.) Lock the brakes on all four castors. To do this, press the lever down at each castor. - Page 19 Operating Manual AmbiCube Assembly and first commissioning Blow-out opening Second filter stage First filter stage Air intake openings Illustration 5: Sectional view of the room air cleaner 2.) Make sure that the outlet opening is not covered and no objects are placed on the outlet opening.
-
Page 20: Operation
Operating Manual AmbiCube Operation 7 Operation 7.1 Ready for use condition When ready for operation, the room air cleaner is switched off and connected to the power supply system. In this state, the room air cleaner can be switched on at any time by turning the selector switch to position I. -
Page 21: Set The Room Air Cleaner Safely Out Of Operation
Operating Manual AmbiCube Operation Selector switch room air cleaner On / Off Manometer filter resistance Potentiometer for speed of fan Illustration 8: Detail view of the control unit of the room air cleaner Ä The fan is switched off. ð The room air cleaner is now ready for operation. In this state, the room air cleaner can be switched on at any time by turning the selector switch to posi- tion I. -
Page 22: Setting Values
Illustration 9: Characteristic curves of the unit The data for the settings are updated continuously. The current settings can be found on the following website: https://www.keller-lufttechnik.de/ambicube-doku. On this website you can also download the latest operating manual. 8.1 Example for setting the potentiometer First the room volume must be determined. - Page 23 Operating Manual AmbiCube Setting values Recommended air Air flow volume min volume flow Characteristic curve of the unit in new condition Differential pressure Settings on the controller Air volume flow [m³/h] Illustration 10: Transmitted recommended volume flow Cross the transmitted recommended volume flow with the device characteristic curve in new condition and read the corresponding setting.
- Page 24 Operating Manual AmbiCube Setting values Recommended air Air flow volume min volume flow Characteristic curve of the unit in new condition Differential pressure 5.4 mbar Start new End new Settings on the controller Air volume flow [m³/h] Illustration 12: New setting of the potentiometer You can keep this state until you reach the minimum flow rate.
-
Page 25: Troubleshooting
Operating Manual AmbiCube Troubleshooting 9 Troubleshooting 9.1 Fan does not start Description: The fan does not start or the room air cleaner cannot be switched on. Cause: – The selector switch on the front of the room air cleaner is in posi- tion 0 –... - Page 26 Operating Manual AmbiCube Troubleshooting Cause: – In one of the intake grilles there is an object that vibrates due to the air flow. – There is an object in the outlet grille that vibrates due to the air flow. – Defective bearing on the fan Troubleshooting measures to be –...
-
Page 27: Maintenance
Hazard by improper usage or operation! Persons may be injured or system be damaged. a) Please contact Keller Lufttechnik GmbH + Co. KG in case of any insecurities concerning the system application. b) Do not operate the system on the basis of assumptions. -
Page 28: Check Air Outlet
Operating Manual AmbiCube Maintenance Selector switch room air cleaner On / Off Manometer filter resistance Potentiometer for speed of fan Illustration 13: Detail view of the control unit of the room air cleaner 10.3 Check air outlet In order to ensure the correct function of the room air cleaner, it must be ensured that no objects are placed on the air outlet opening and cover it. -
Page 29: Check And Clean The Air Intake Grid
Operating Manual AmbiCube Maintenance Selector switch room air cleaner On / Off Manometer filter resistance Potentiometer for speed of fan Illustration 15: Detail view of the control unit of the room air cleaner Ä The fan is switched off. 2.) Pull the round plug of the power supply connection cable out of the grounded contact socket. -
Page 30: Cleaning The Air Intake Area
Operating Manual AmbiCube Maintenance 1.) Visual inspection of the intake grids. Make sure that no objects have been sucked in at the grids or that the grids are heavily contaminated by e.g. dust or similar. If necessary, remove these objects and contaminations. -
Page 31: Check The Unit For Unusual Running Noises
Operating Manual AmbiCube Maintenance 10.7 Check the unit for unusual running noises u Check the unit acoustically for unusual running noises. In case of unusual run- ning noises, see chapter Unusual running noises [} Page 25]. 10.8 Check filter resistance ü The room air cleaner is in operation. - Page 32 Operating Manual AmbiCube Maintenance 1.) Turn the selector switch on the front of the room air cleaner to position 0. Ä The fan is switched off. Selector switch room air cleaner On / Off Manometer filter resistance Potentiometer for speed of fan Illustration 20: Detail view of the control unit of the room air cleaner...
-
Page 33: Replace Filter Element Of The First Filter Stage
Operating Manual AmbiCube Maintenance 8.) Pull the mounting bracket off the threaded rods and remove it. 9.) Pull the filter element of the second filter stage upwards out of the room air cleaner and check for dirt, odours and damage. If necessary, pack the filter element for disposal in a tear-proof plastic bag (garbage bag) and close it tightly. -
Page 34: Disassembly
Operating Manual AmbiCube Disassembly 11 Disassembly DANGER Tension at electrical components. Death or heavy injuries by electric shock. a) Save system shutdown. b) Disconnect system from electric power supply. c) Discharge electrical resiudal energy entirely prior to disas- sembly. CAUTION Incorrect disassembly Risk of injury and health hazards. -
Page 35: Disposal
Operating Manual AmbiCube Disposal 12 Disposal The components shall be disposed in accordance with existing directives and laws. CAUTION Incorrect disposal of components. Environmental damage a) All components shall be disposed properly. b) Disposing components shall be delivered at authorized col- lection points. -
Page 36: Spare Parts
Operating Manual AmbiCube Spare parts 13 Spare parts Blow-out opening Second filter stage First filter stage Air intake openings Illustration 23: Sectional view of the room air cleaner Description Quantity Unit Article number Spare parts type Filter element first filter 8000402375... -
Page 37: Attachment
Operating Manual AmbiCube Attachment 14 Attachment 14.1 Characteristic curve diagram Version: 2 | en Page 37 of 40 Subject to technical changes... - Page 38 Operating Manual AmbiCube Attachment Page 38 of 40 Version: 2 | en Subject to technical changes...
- Page 39 Heinrich-Heine-Straße 4 Fon +49 5191 15575 Fax +49 5191 12422 info@suhr-gmbh.de 59823 Arnsberg 63069 Offenbach am Main Keller Lufttechnik GmbH + Co. KG LUT Luft- und Umwelttechnik GmbH Ferdinand Geiz / Werner Henke Senefelderstr. 164 Schanzweg 12 Fon +49 69 838309-20...
- Page 40 Operating Worldwide..3 Subsidiaries, 9 Representative Offives and 4 Licensees Schweiz China Keller Lufttechnik AG Keller USA Inc. Keller Environmental Equipment (Shanghai) Co., Ltd. Walenbüchelstraße 1 2168 Carolina Place Drive RM,2001/2002,No. 3399, Yuanjiang RD 9000 ST. GALLEN FORT MILL, SC 29708 SHANGHAI, P.C.201109...
