Summary of Contents for Bieler+Lang ExDetector HC 150

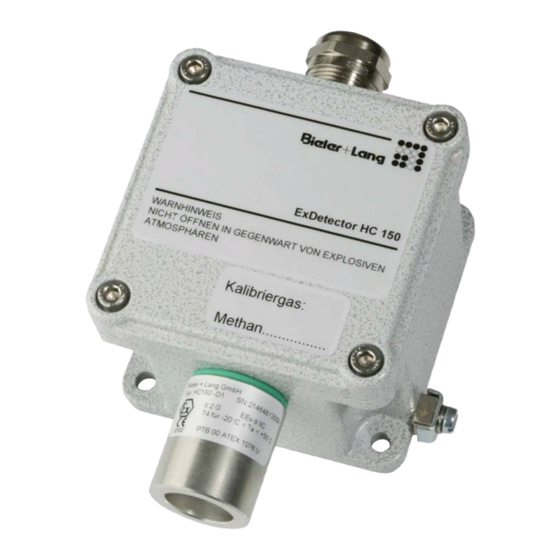

- Page 1 ExDetector HC 150 ExDetector HC 150-K Operating and Installation Instructions Gas Detection and Warning Systems...
- Page 2 Gas Detector ExDetector HC 150 / HC 150-K Operating and Installation Instructions Prerequisites for safe operation of the system: Important Instructions Appropriate transport and handling ● Appropriate installation and commissioning by suitably qualified personnel ● (e.g. a qualified electrician) Observance of the data sheet, the operating instructions and relevant ●...
- Page 3 Gas Detector ExDetector HC 150 / HC 150-K Operating and Installation Instructions Never open the ExDetector housing in the presence of an explosive Connections atmosphere. Important Instructions Max. lead length: 1000 m ● Terminal Assignment Max. lead resistance: 12 ohm per conductor ●...
- Page 4 Gas Detector ExDetector HC 150 / HC 150-K Operating and Installation Instructions Connections +24VDC KL 1 KL 1 +24VDC Detector- 4...20mA KL 2 KL 2 4...20mA elektronic Example: Connection to GMC8022 8022 KL 3 KL 3 Zone 2 safe area...
- Page 5 Gas Detector ExDetector HC 150 / HC 150-K Operating and Installation Instructions Important note! Adjustment The relevant regulations for work in areas where there is an explosion hazard must be observed without fail. The following accessories and equipment are required: Voltmeter ●...
- Page 6 Operating and Installation Instructions Please note: Replacing the Sensor Sensors may only be replaced by specialist personnel authorised to do so by Bieler+Lang. Do not open the housing when the power supply is switched on! 0,4-2V locknut seal ring sensor...
- Page 7 Gas Detector ExDetector HC 150 / HC 150-K Operating and Installation Instructions Test gas set Accessories ● Calibration gases ● Measurement lead ● Maintenance Instructions Regular maintenance ensures the safety and longterm reliability of your gas warning installation. For this reason it is absolutely essential that the system is checked at regular intervals.
- Page 8 Gas Detector ExDetector HC 150 / HC 150-K Operating and Installation Instructions Bieler + Lang GmbH Gas Detection and Warning Systems PO Box 1129, D-77842 Achern Oberkirchstr. 19-21, D-77855 Achern Telephone +49 (0) 78 41 / 69 37 - 0...
