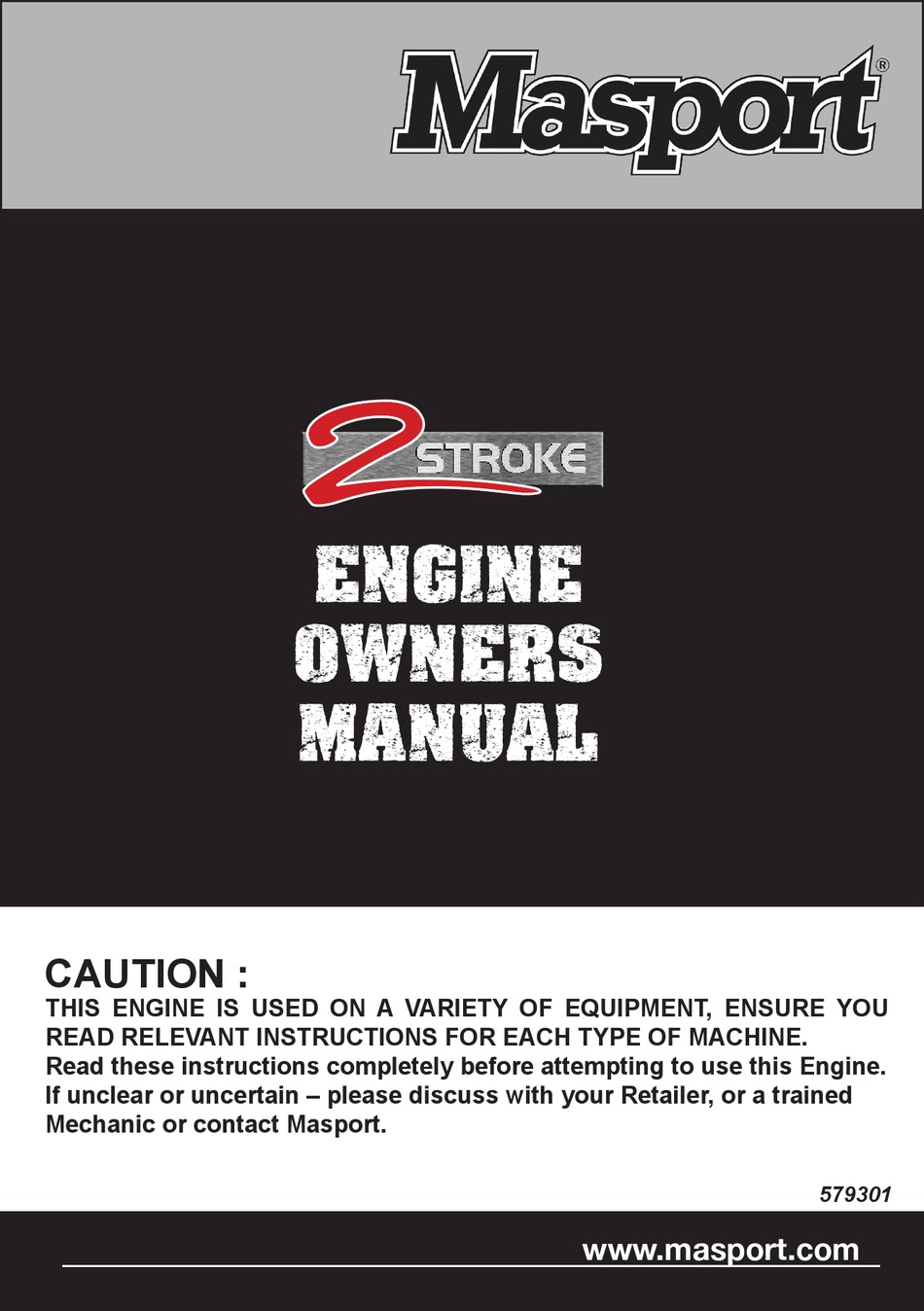

ENGINE
OWNERS
MANUAL
CAUTION :
THIS ENGINE IS USED ON A VARIETY OF EQUIPMENT, ENSURE YOU
READ RELEVANT INSTRUCTIONS FOR EACH TYPE OF MACHINE.
Read these instructions completely before attempting to use this Engine.
If unclear or uncertain – please discuss with your Retailer, or a trained
Mechanic or contact Masport.
579301
www.masport.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Masport 2 Stroke
- Page 1 THIS ENGINE IS USED ON A VARIETY OF EQUIPMENT, ENSURE YOU READ RELEVANT INSTRUCTIONS FOR EACH TYPE OF MACHINE. Read these instructions completely before attempting to use this Engine. If unclear or uncertain – please discuss with your Retailer, or a trained Mechanic or contact Masport. 579301 www.masport.com...
- Page 2 IMPORTANT: This is a 2 stroke engine that requires approved MASPORT 2 stroke oil mixed with fresh premium petrol at the ratio of 30:1. Masport Two Stroke Engine Fuel Ratio 30:1 = 30ml of Oil for 1 Litre of Fuel The ‘AIR FILTER’...
- Page 3 PRECAUTIONS: Always operate petrol powered engines outside in a well ventilated area. Exhaust fumes contain carbon monoxide an odourless and deadly gas, amongst other toxic chemicals. Small children and pregnant women are at great risk from these gases. Exhaust fumes are Dangerous to ALL Humans and other creatures. Do NOT touch the muffler or engine body while operating or until the stopped motor has cooled, the engine operates at temperatures that can cause serious burns.
- Page 4 GOLDEN RULES FOR ‘TROUBLE FREE’ OPERATION START UP 1. Turn on the fuel tap and allow the carburettor to fill. 2. Close the choke on the carburettor completely (for cold starts) by moving the throttle control fully forward (refer mower owner manual). 3.
- Page 5 STOPPING 1. Reduce the engine speed to the lowest setting for 3-5 minutes. 2. Stop the engine with either the throttle control or by turning off the fuel. Note: do not wash the engine down while it is still hot, this can cause damage to the block and seals.
- Page 6 REFUELLING Always stop the engine before refuelling, and allow the engine to cool. Petrol fumes are highly inflammable so remove the fuel cap carefully to release pressure gently, ensure the engine is re-fuelled from a petroleum- safe container and that refuelling takes place outdoors in a well ventilated area to avoid fumes build-up.
-
Page 7: Maintenance
MAINTENANCE Check at each operation; • Check all screws and nuts are tight • Check for fuel leaks. • All fuel leaks must be repaired immediately DO NOT use the engine. Check after running 20 hours; • Clean the air filter – rinse in petrol, wring dry and add 5ml of clean engine oil to the filter, squeeze filter to spread oil before re-fitting (ensure petrol has evaporated before re-fitting) •... -
Page 8: Engine Speed
If you think your carburetor needs adjusting, see your nearest AUTHORISED MASPORT SERVICE OUTLET. Engine performance should not be affected at altitudes up to 7,000 feet. For operation at higher elevations, contact your AUTHORISED MASPORT SERVICE OUTLET. ENGINE SPEED: NEVER TAMPER WITH ENGINE GOVERNOR WHICH IS FACTORY SET FOR PROPER ENGINE SPEED. -
Page 9: Troubleshooting
Using old fuel that has been stored too long, or poor quality fuel. Blade impact on a solid object may have bent the crank shaft or snapped the Woodruff Key. If running difficulties continue, call MASPORT for the details of your closest MASPORT AUTHORISED SERVICE CENTRE on: New Zealand - 0800 MASPORT... -
Page 11: Engine Component List
CYLINDER HEAD SPARKPLUG L7RTC COMPLETE COIL FILTER X 2 GASKET SET For all MASPORT parts and service, see your nearest MASPORT delaer. For details of your closest dealer / retailer call: New Zealand - 0800 MASPORT Australia - 1300 366 255... -
Page 12: This Warranty Does Not Cover
All claims must be recieved by Masport in writing during the term of this war- ranty. Masport’s obligation under this warranty is the repair or replacement, at it’s option, by an approved Masport Specialist retailer of any part found to... -
Page 13: How To Obtain Warranty Service
Consumer Gaurantees Act 1993. CONSUMER GUARANTEE NOTE: Except as set out in this Warranty, Masport shall have no other liability to any part with respect to the Masport Two Stroke Engine (for negligence or other- wise), and all conditions and warranties implied by law, custom or otherwise are excluded, except, in each case, as required by law. - Page 14 MASPORT LIMITED P.O.Box 14-349, Panmure, Auckland, New Zealand FREEPHONE: 0800 MASPORT FREEFAX: 0508 570 570 P.O.Box 533, Braeside, Victoria3 195, Außtralia FREEPHONE: 1300 366 225 FREEFAX: 1800 035 594 www.masport.com...
