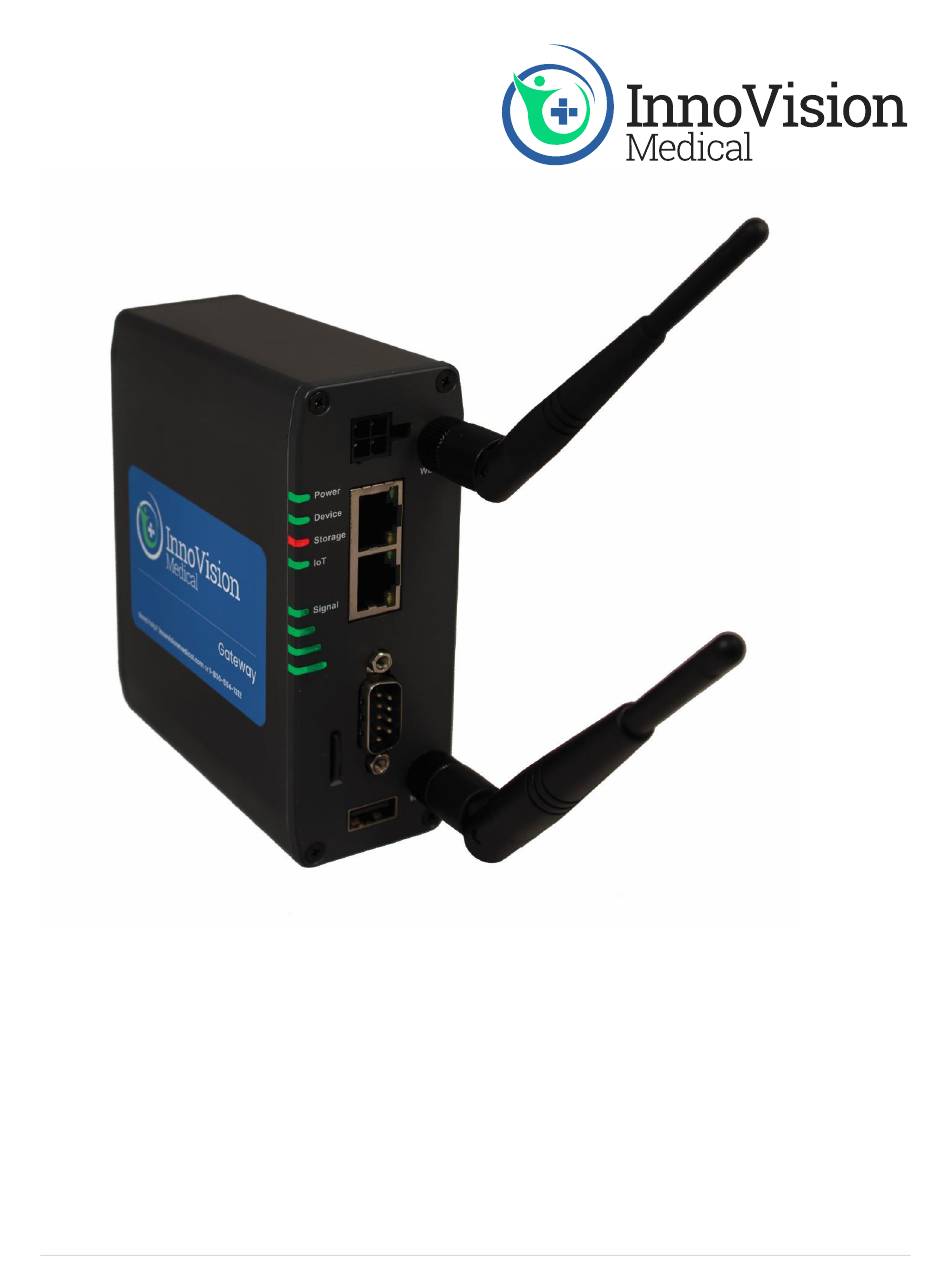

InnoVision Medical Gateway
Secure, Plug and Play, C4MI Verified Interoperable Medical Device Gateway

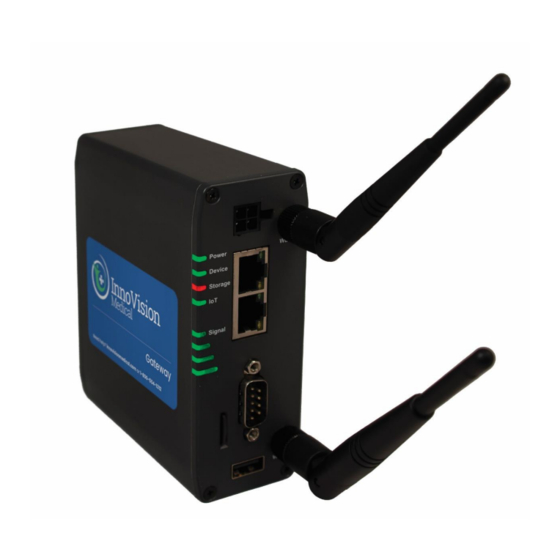

Model: MGL60
User's Guide
February 2020, Rev. 3, 02/20
© 2020 InnoVision Medical Technologies. All rights reserved. Specifications are subject to change without notice.
All product names are trademarks of their respective companies.
1 |
P a g e

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MGL60 and is the answer not in the manual?

Questions and answers

Summary of Contents for Innovision MGL60

  • Page 1 Secure, Plug and Play, C4MI Verified Interoperable Medical Device Gateway Model: MGL60 User’s Guide February 2020, Rev. 3, 02/20 © 2020 InnoVision Medical Technologies. All rights reserved. Specifications are subject to change without notice. All product names are trademarks of their respective companies. P a g e...
  • Page 2 InnoVision Medical. Changes made to the information in this document will be incorporated in new editions of the publication. No responsibility is assumed by InnoVision Medical for the use or reliability of software or equipment that Is not supplied by InnoVision Medical, or by its affiliated dealers.
  • Page 3: Table Of Contents

    Table of Contents Introduction ..............................4 Package Contents ............................4 Connectivity Requirements ........................... 5 Instrument Familiarity & Hardware Overview ....................6 Ports and Connectors ..........................6 LEDs ................................6 Identifiers and Reset Button ........................7 Connecting the Gateway ..........................8 Network Connections and Configuration Requirements ................
  • Page 4: Introduction

    Center for Medical Interoperability (C4MI) verified systems. The InnoVision Medical Gateway is verified interoperable and builds on many existing standards to achieve this.
  • Page 5: Connectivity Requirements

    Connectivity Requirements A C4MI compliant platform providing services for clinical data exchange and client management is required for plug and play operation. Wired or wireless IPv4 networks are supported, DHCP is utilized for IP assignment. Certificates are required for secure authentication and encryption between all platform services and the medical gateway.
  • Page 6: Instrument Familiarity & Hardware Overview

    Instrument Familiarity & Hardware Overview Ports and Connectors Gateway Back Panel Connector/Port Description DC Power Locking power adapter 9V~36V LAN1 10/100 Mbit/s RJ45 Ethernet LAN2 10/100/1000 Mbit/s RJ45 Ethernet Serial Port (RS232) DB9 serial port for communication with the medical device. No configuration required. SD Card Optional;...
  • Page 7: Identifiers And Reset Button

    Identifiers and Reset Button Thing Description Gateway Front Panel Wi-Fi MAC The address of the Gateway that will appear with the network management when connected via a wireless network (currently disabled). ELAN MAC The unique identifier assigned to each gateway that is used for all communications with external systems including the C4MI Management Entity and Platform.
  • Page 8: Connecting The Gateway

    If a pamphlet cannot be found, or the one shipped was lost, please refer to the following address and search for the respective model in use: www.innovisionmedical.com/support/mgl60/connectivity 8. Ensure that the Device LED changes from Red to Green, and stays Green...
  • Page 9: Network Connections And Configuration Requirements

    Patient association is not yet part of the C4MI issued specification and thus is not fully plug and play in an interoperable manner. InnoVision Medical provides a plug and play solution through an association entity that is included with our platform. It is our hope that this approach will be...
