  • Page 1 Lindorm Inc. L IN DORM SediMeter Reference Firmware rev. 2.3 2.3. 2010-12-14 ETER EFERENCE...

  • Page 2: Document Scope

    The holder tube is PC and the anchor screw SS316. The handle is aluminium in the 6060 range, with an SS316 cotter pin. Legal Notices Copyright This manual is ©Lindorm, Inc., 2008-2010. All rights reserved. Contact copyright@lindorm.com to request permission to use the material. Warranty The instrument has a 12-month warranty against defects in material or workmanship.
  • Page 3 Lindorm Inc. L IN DORM returning it for repairs. No express or implied warranty is made regarding the usefulness for a specific purpose, beyond what is mandated by applicable law. The user must verify that the device performs in the way required by the specific circumstances.

  • Page 4: Table Of Contents

    Lindorm Inc. L IN DORM Contents ..............................2 OCUMENT COPE Document Versions ............................2 Use and limitations............................2 ................................2 ECYCLING ..............................2 EGAL OTICES Copyright ................................2 Warranty................................2 OVERVIEW OF PARTS ............................6 STANDARD PROCEDURES..........................8 ................................. 8 EPLOYMENT Replacing batteries............................
  • Page 5 Lindorm Inc. L IN DORM RS-485................................28 USB ................................. 28 OPERATING MODES............................29 ................................29 VERVIEW : USB RS-485 N ....................29 DAPTER MODE ETWORK ........................30 ASTER MODE ETWORK OGGER ........................30 LAVE MODE ETWORK ENSOR ......................31 OGGER MODE...

  • Page 6: Overview Of Parts

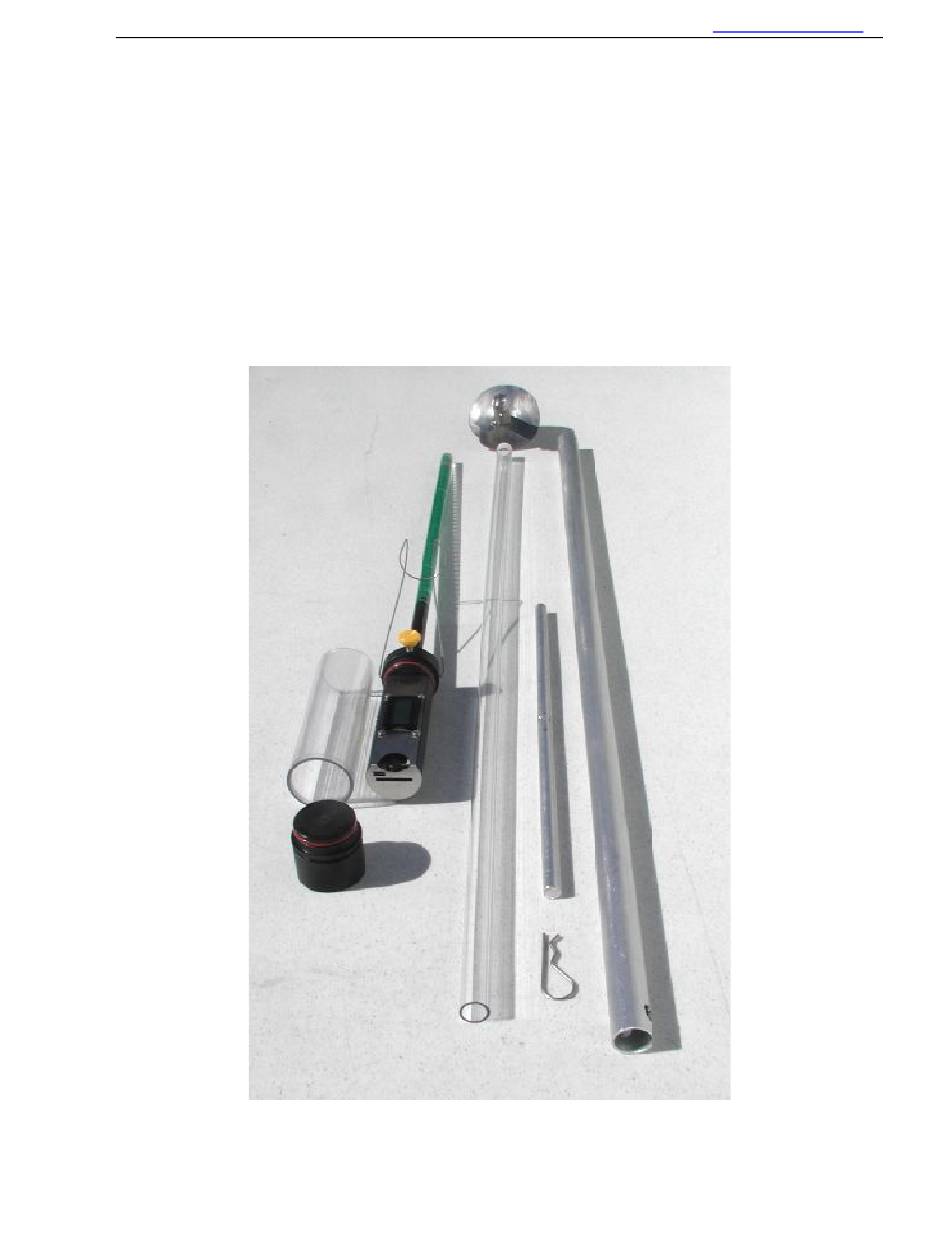

    Lindorm Inc. L IN DORM Overview of Parts Figure 1. The main parts. The handle tube is now anodized yellow and the bar in blue. Figure 2. The logic unit of the SediMeter™, the LogDator™. The printed circuit board (PCB) under the front panel is exposed for illustration only; in normal use the front panel 2.3.
  • Page 7 Lindorm Inc. L IN DORM should never be removed. The user interface consists of the NavPin (a tact switch with 4 directions plus select), the display, and the Reset button. Using a thin object the Reset button is accessible through the opening in the front panel. The display can be used with or without backlight.

  • Page 8: Standard Procedures

    Lindorm Inc. L IN DORM Standard Procedures WARNING: Do not tilt the cylinder when opening or closing it! Doing so may cause the O-ring to leak. Deployment Replacing batteries Use only 3.6 V size AA batteries. To replace the batteries the transparent tube must be removed.

  • Page 9: Avoid Moisture Due To The Condensation Risk

    Lindorm Inc. L IN DORM only one partition). Towards the end there are three menus specific for operation as a network master, so in most cases they can be ignored. The second to last menu is the one where you set mode. When you switch mode to Logger and a card is present, a file will be created on the card.
  • Page 10 Lindorm Inc. L IN DORM Also make sure that the o-rings are greased on all surfaces with a thin layer of grease. There must be no dry spot whatsoever. Removing o-rings If there is dirt in the o-ring groove, if the o-ring needs to get a new layer of grease, if the o- ring show signs of damage such as cracks, or if it is time to replace the o-ring due to age, proceed to remove the o-ring as follows.
  • Page 11 Lindorm Inc. L IN DORM Figure 3. When closing the lid, after making sure the o-ring and its groove and mating surfaces are clean and the o-ring is greased, push it in until it makes resistance. At that time give it a twist to easily get the o-ring into the cylinder without risking harm to the o-ring (a red o-ring is used on the photos for clarity;...
  • Page 12 Lindorm Inc. L IN DORM Figure 4. Closing the spring. Hold the lid down while you swing the locking spring in place (Fig. 4). Push on the bend of the spring to make it mate with the groove on the lid. Some springs, when they are new, may need a little bit of help in opening up around the cylinder.

  • Page 13: Preparation For The Dive

    Lindorm Inc. L IN DORM Figure 5. The battery compartment holds two size AA 3.6 V Li primary batteries. Cleaning the sensor Use the protective cover on the sensor whenever handling the instrument. As the last preparation remove the protection, and, using clean water and a non-abrading wipe, clean off the sensor surface.
  • Page 14 Lindorm Inc. L IN DORM Figure 6. Turn the cotter pin sideways as in this photo to get it in and out while inside the handle tube. Once in place turn it back perpendicularly so it will stay safely in place.

  • Page 15: Under Water Procedures

    Lindorm Inc. L IN DORM buoyancy vest or dry suit. The heavier the better, but keep in mind the safety, and the capacity of the vest or suit. It is also possible to deploy the SediMeter by snorkeling, in shallow waters. Count on making several dives to screw the anchor all the way down.
  • Page 16 Lindorm Inc. L IN DORM Figure 8. The SediMeter with holder and handle ready for deployment. Screwing down the holder tube CCW Note that the anchor screw operates counterclockwise, as it has a left hand thread. Place the handle over the outer tube, so that the bayonet connects to the stainless steel pins on the anchor (Fig.

  • Page 17: Post-Dive Procedures

    Lindorm Inc. L IN DORM Rotate the handle slightly clockwise to disengage the bayonet, and pull straight up. Take care not to pull at an angle, since doing so might scratch the surface of the polycarbonate holder tube. Figure 9. A bayonet connects the handle to the anchor screw. It does not lock in place, so if transporting them together while swimming, hold the anchor screw upwards to prevent it from falling out.

  • Page 18: Temporary Retrieval For Getting Data And Or Replacing Batteries

    Lindorm Inc. L IN DORM Temporary retrieval for getting data and or replacing batteries Preparation Bring fresh water for rinsing, and lint-free towels. It is recommended to cap the tube while the SediMeter is gone, both because the transparent tube is very hard to see, and to prevent dirt from getting in.
  • Page 19 Lindorm Inc. L IN DORM It is best to let a non-diving and thus dry person open the SediMeter. If that is not possible you should dry your hair and face so you will not drip, then rinse your hands with fresh water and dry them.

  • Page 20: Retrieving At End Of Mission

    Lindorm Inc. L IN DORM message appears saying that no reply came; that is because the mode change cut off the connection. Disconnect in the Connection tab (to free the serial port). Remove the cable and replace the dummy to protect the connector.

  • Page 21: Opening And Data Capture

    Lindorm Inc. L IN DORM To protect the tube from scratches in the active measurement zone when forcing the handle down to the anchor, first make a depression to the depth of the lowermost detector. Use hands or flippers. Loosen the finger screw, remove the SediMeter and leave it in a safe place. Push down the handle, twisting it right and left while pushing until it reaches the anchor and connects to the bayonet.

  • Page 22: User Interface

    Lindorm Inc. L IN DORM User Interface Different versions of SediMeters may be operated either by using a built in user interface with a control stick called NavPin, or by software connected either through USB or RS- 485. The SediMeter has a built-in real-time clock that is programmed to keep track of time in UTC (similar to GMT it is the time at the 0 meridian).

  • Page 23: Logdator

    Lindorm Inc. L IN DORM 15 is unavailable when USB is connected (and if a USB cable is plugged in when that menu is shown, it immediately stops updating). Menu # Menu Set Normal Normal Normal Normal Normal Normal Normal...

  • Page 24: Next At

    Lindorm Inc. L IN DORM Next At Selects the time of the next measurement (in the same time zone as the clock). Store On Selects the memory to use for data storage, the 2 MB internal flash chip or a memory card.

  • Page 25: Samples

    Lindorm Inc. L IN DORM Samples For each measurement, the optional sensors can be sampled up to 84 times. Set the count in this menu. Set to 0 if no optional sensors are present, since it conserves battery power. Rate Opt This sets the rate of sampling for the optional sensors in the burst-sampling scheme.

  • Page 26: Sleeping (Pill)

    Lindorm Inc. L IN DORM button will now cause the wiper to go down, and vice versa. Use this when assembling the wiper or after replacing the line, to wind up the line of the reel. Click Select again to inactivate the menu.

  • Page 27: Temp & Time Display

    Lindorm Inc. L IN DORM Magnetic switch The reed switch (beyond the display, opposite the serial number sticker) cycles through this menu. The switch is operated by approaching a magnet to the instrument. The first time the magnet is approached the display turns on showing temperature and voltage for a few seconds.

  • Page 28: Serial Communication

    Lindorm Inc. L IN DORM Serial communication Both protocols may be used with the SediMeter software, with the recommended method in bold as follows: RS-485 Set up self-timed logging Download recorded data Yes (but 100 times slower than USB) Self-timed logging while...

  • Page 29: Operating Modes

    Slave mode. An Excel sheet is available for estimating battery and memory use, http://lindorm.com/downloads/batteryuse.xls. Some values when using the internal memory are given below. When using an MMC or SD card there is virtually no limit on how much data can be stored, but the battery consumption becomes the limiting factor.

  • Page 30: Master Mode: Network Logger

    Lindorm Inc. L IN DORM Use adapter mode to set up remote instruments without access to a RS-485 port or adapter on the computer. Theoretically it can also be used for real-time monitoring of the network. Master mode: Network Logger In master mode the instrument acts as a logger on the network.

  • Page 31: Logger Mode: Stand-Alone Logging

    Lindorm Inc. L IN DORM Logger mode: Stand-Alone Logging In this mode the device is a stand-alone instrument with an internal clock, and a logger that stores measurement data either on the built-in 2 MB flash memory, or on a MMC or SD memory card that may be up to 2 GB in size.

  • Page 32: Display And Navpin

    Lindorm Inc. L IN DORM believes the display is on when it is not (repeatedly clicking right-select-right-select etc up to 15 times often resolves the issue by first turning off the display then on again). To prevent this avoid using the user interface when USB is connected, and do not keep USB connected when it is not in active use.

  • Page 33: Specifications

    Lindorm Inc. L IN DORM Specifications Dimensions and weights Length overall 700 mm House diameter 51 mm Sensor length 510 mm Sensor diameter 15 mm (20 mm with holder) Volume ca 0.4 L Mass (as deployed) ca 0.4 kg Buoyancy...
  • Page 34 Lindorm Inc. L IN DORM t is time in seconds (s) is discharge per measurement in coulomb (C), and measurement n is number of measurements (the unit is 1). the battery has sufficient capacity. Suitable batteries include SAFT If ! "...

  • Page 35: Memory Card Functionality

    Lindorm Inc. L IN DORM Memory Card Functionality MMC cards MMCplus cards, and SD cards can be used and have been tested. RS-MMC, MMCmobile, and MMCmicro are expected to work with the appropriate adapter, since they differ only in size from the former, but they have not been tested. The card must be formatted in the FAT16 file system (this may simply be called FAT in Windows).

  • Page 36: Exchanging Memory Card During Logging

    Lindorm Inc. L IN DORM Exchanging Memory Card During Logging The recommended procedure is as follows: Turn on the display (if the display will not turn on a measurement is probably being taken, so wait a minute or two and try again).

  • Page 37: Setting Up An Rs-485 Network

    Lindorm Inc. L IN DORM Setting up an RS-485 Network Real-Time Monitoring with a Computer The computer must have an RS-485 serial port. A USB to RS-485 adapter may be used. One pair in a twisted pair cable is used for the signals, A and B. One of the two is normally-positive, the other normally-negative.
  • Page 38 Lindorm Inc. L IN DORM Technical about RS-485 networks In high-speed communication the signal out may have shifted from high to low or vice versa before the previous signal has returned as an echo from the end of the cable (its velocity is ca 200 Mm/s).

  • Page 39: Calibration

    Lindorm Inc. L IN DORM Calibration A major improvement in version 2 of the software and firmware is in the conversion to physical units. The conversion coefficients are now permanently stored in the LogDator, but they can still be updated using the SediMeter.exe software. Furthermore, the software contains a wizard to assist with carrying out the calibration and estimating the correct values based on measurement data.

  • Page 40: Calibrating

    Lindorm Inc. L IN DORM To measure in light conditions, make sure not to saturate the sensor. Check the value in the right column. If it is above 53000 the sensor response is not to be used for calibration. For dusk conditions the value in clear water should be between 5000 and 15000, and for day conditions between 15000 and 53000.

  • Page 41: Optimizing Turbidity Accuracy

    Lindorm Inc. L IN DORM It should be noted that if the ambient light is strong enough, it may saturate the detectors. If they are nearly but not quite saturated, FBU = K U " U " U low turbidity levels may still be possible...

  • Page 42: Option: Sensor Wiper Lm-17

    Lindorm Inc. L IN DORM Option: Sensor Wiper LM-17 The sensor cleaner is a factory-mounted accessory. It consists of a wiper that slides up and down the sensor, a thin line, a motor and reel, and a PC board with the electronic control circuits.

  • Page 43: Appendix: The Si System

    Lindorm Inc. L IN DORM Appendix: The SI system Quantity Symbol Unit Symbol Definition Time second Base Unit Length metre (meter) Base Unit Mass kilogram Base Unit Temperature kelvin Base Unit Luminous candela Base Unit intensity Amount of mole Base Unit...
  • Page 44 Lindorm Inc. L IN DORM Multiple prefixes Factor Prefix Prefix Name Symbol tera giga mega kilo hekto deka — — deci centi milli µ micro nano pico Notes If and only if the prefix is larger than kilo is it written with a capital letter.
