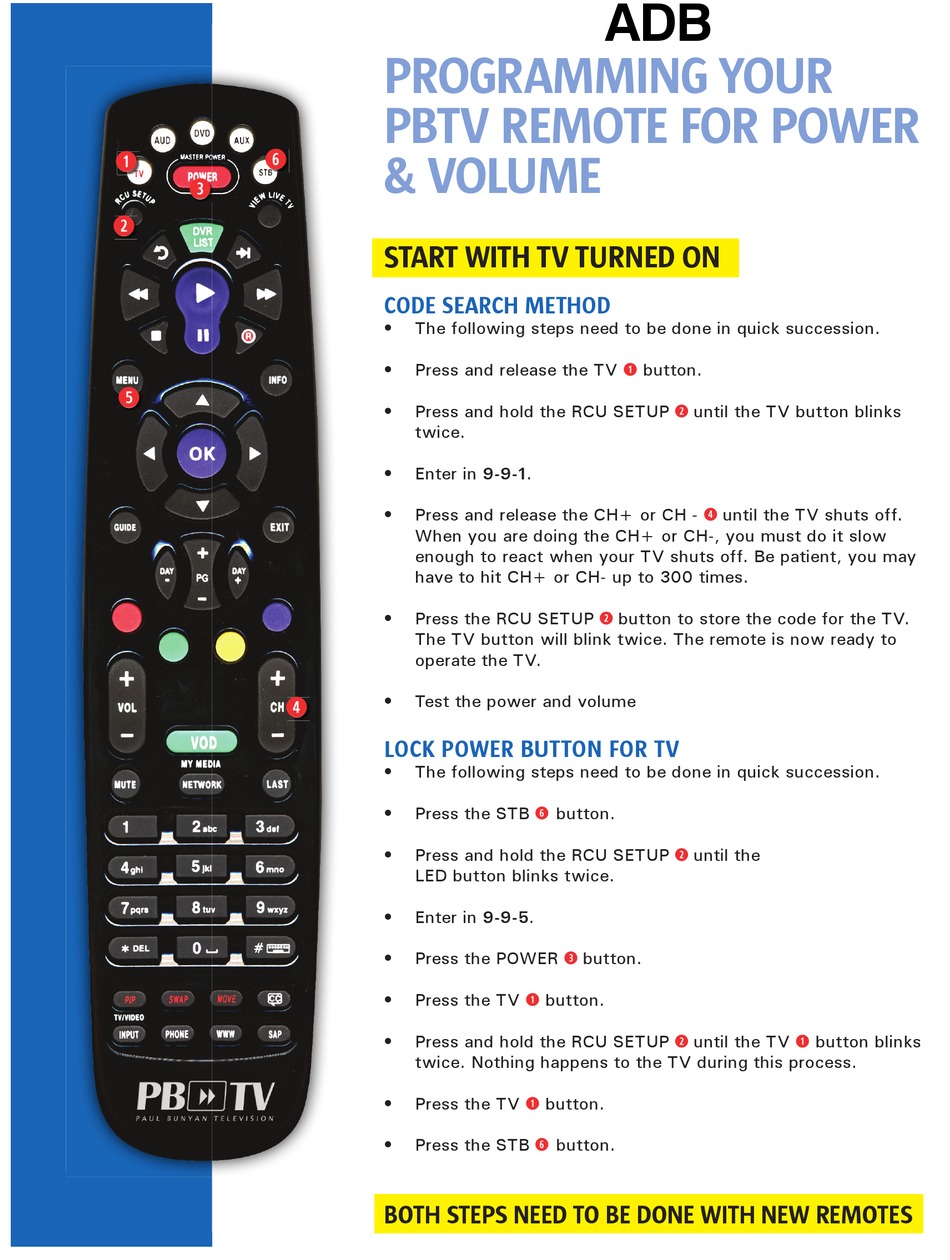

PB ADB Quick Start Manual







PROGRAMMING YOUR
PBTV REMOTE FOR POWER
& VOLUME
START WITH TV TURNED ON

CODE SEARCH METHOD

• The following steps need to be done in quick succession.
• Press and release the TV
• Press and hold the RCU SETUP until the TV button blinks
twice.
• Enter in 9-9-1.
• Press and release the CH+ or CH - until the TV shuts off.
When you are doing the CH+ or CH-, you must do it slow
enough to react when your TV shuts off. Be patient, you may
have to hit CH+ or CH- up to 300 times.
• Press the RCU SETUP button to store the code for the TV.
The TV button will blink twice. The remote is now ready to
operate the TV.
• Test the power and volume

LOCK POWER BUTTON FOR TV

• The following steps need to be done in quick succession.
• Press the STB button.
• Press and hold the RCU SETUP until the
LED button blinks twice.
• Enter in 9-9-5.
• Press the POWER button.
• Press the TV button.

• Press and hold the RCU SETUP until the TV
twice. Nothing happens to the TV during this process.
• Press the TV button.

• Press the STB button.
BOTH STEPS NEED TO BE DONE WITH NEW REMOTES
ADB
button.

button blinks

