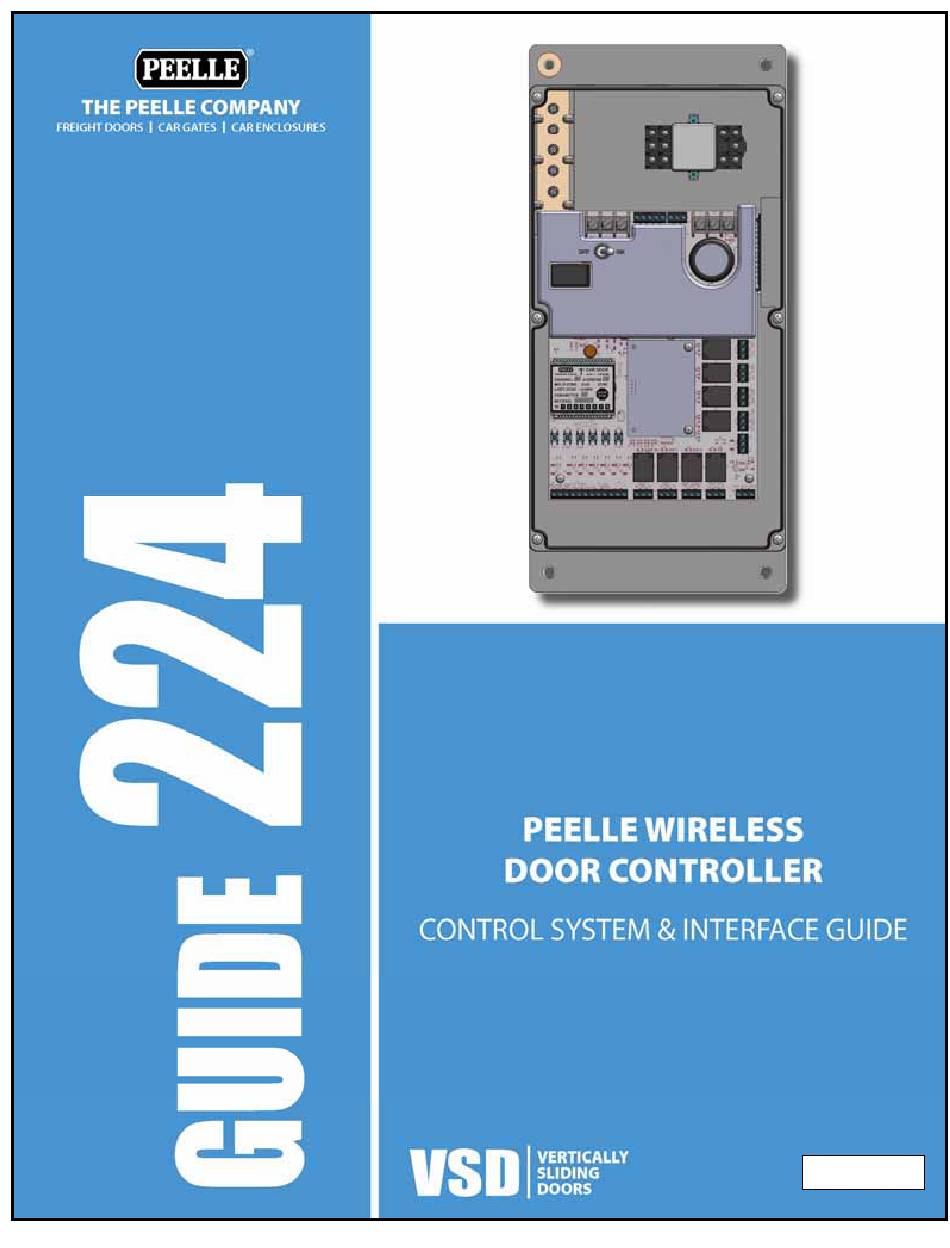

- Page 1 April 2011...
-
Page 2: Table Of Contents
Model 2745, Wireless Door Controller Installation and Operation Manual TABLE OF CONTENTS Section Safety Warning Introduction Technical Specifications III. Getting Familiar With the Controller Landing Door Controller Installation Car Door (Gate) Controller Installation Power and Motor Connections VII. Control Interface Connections VIII. -
Page 3: Safety Warning
Model 2745, Wireless Door Controller Installation and Operation Manual SAFETY WARNING Definition of Safety Warning Symbols Electrical Hazard Warning Symbol – Failure to observe this warning could result in electrical shock or electrocution. Operational Hazard Warning Symbol – Failure to observe this warning could result in dangerous or unsafe conditions. -
Page 4: Introduction
With preloaded parameters and easy terminal connections, the New Peelle Wireless Door Controller is the easiest door controller in the industry. The revolutionary Wireless Door Controller is located at each landing door and car door (gate). -
Page 5: Technical Specifications
Model 2745, Wireless Door Controller Installation and Operation Manual III. TECHNICAL SPECIFICATIONS Technical data Specification Input Power 5.5 A @ 240 V, 1500 W Supply Voltage 208-240 Vac, 50-60 Hz, 1~ (L, N, PE) Output to Motor 0-220 V AC, 0…60 Hz (variable), 3~ (U, V, W) Output Power 0.75 kW (1 HP), 4.2 A Max... -
Page 6: Getting Familiar With The Controller

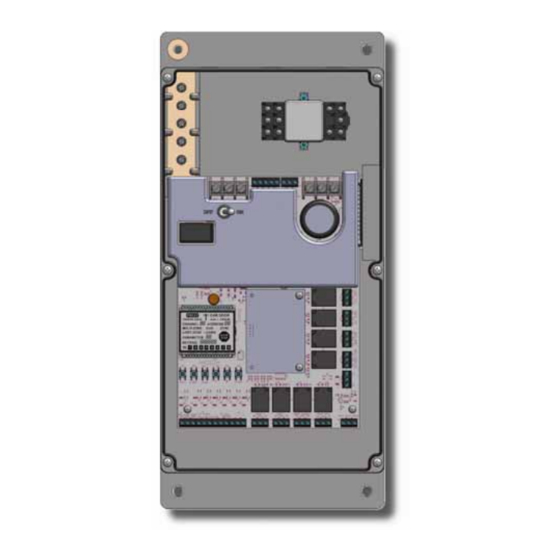

Model 2745, Wireless Door Controller Installation and Operation Manual IV. GETTING FAMILIAR WITH THE CONTROLLER POWER RELAY 208-240V AC Car Door Controller 1 Phase Retiring Cam Relay 5.5A, 50/60 Hz L1, L2/N MOTOR CONNECTIONS 220V AC, 3 Phase GROUNDING 1 hp (.75kW) MAX... -
Page 7: Landing Door Controller Installation
Model 2745, Wireless Door Controller Installation and Operation Manual V. LANDING DOOR CONTROLLER INSTALLATION The Peelle Company Guide 224 www.peelledoor.com Page 7 April 2011... -
Page 8: Car Door (Gate) Controller Installation
Model 2745, Wireless Door Controller Installation and Operation Manual CAR DOOR (GATE) CONTROLLER INSTALLATION The Peelle Company Guide 224 www.peelledoor.com Page 8 April 2011... -
Page 9: Power And Motor Connections
Do not combine motor wires with control wires in same conduit. Note: Peelle door motor low speed winding is not used. Cap black wires separately (T4-T5). FIG. 7 – CAR GATE AND RETIRING CAM MOTOR CONNECTION Car Door (Gate) and Retiring Cam Motor (FIG. -
Page 10: Control Interface Connections
Model 2745, Wireless Door Controller Installation and Operation Manual VIII. CONTROL INTERFACE CONNECTIONS Landing Door Input Connections (FIG. 8) Input Voltage Source Use board power V+ / V- (12Vdc). Connect the source V- to the INPUT COM. Connect all devices through V+ source. -
Page 11: Slave Connection
Model 2745, Wireless Door Controller Installation and Operation Manual Car Door Input Connections – Elevator Control (FIG. 9) NOTE: Elevator controller interface connections to the Car Door Controller ONLY. Do NOT connect to landing door controller. Input Voltage Source Use board power V+ / V- (12Vdc) or 12-30V AC or DC. Connect the source COM to the INPUT COM. - Page 12 Model 2745, Wireless Door Controller Installation and Operation Manual Car Door Output Connections – Elevator Control (FIG. 11) NOTE: Elevator controller interface connections to the Car Door Controller ONLY. Do NOT connect to landing door controller. Output Relay Contacts All contact are Form C rated at maximum 125VAC 10A.
-
Page 13: Initial Setup And Learning
Model 2745, Wireless Door Controller Installation and Operation Manual IX. INITIAL SETUP AND LEARNING Operation Modes (FIG. 12) FIG. 12 – ON BOARD USER BUTTONS INDEPENDENT OPERATION – Set the AUTO<>IND switch to IND for independent door operation. Wireless communication is disabled,... -
Page 14: Learn Sequence
Model 2745, Wireless Door Controller Installation and Operation Manual Setup and Learn the Opening (FIG. 14) NOTE: USE THE DOOR LINE CHANNEL AND ADDRESS CHART (FIG. 20) TO DOCUMENT THE SETTINGS. Before beginning the setup and learn, make sure the door is adjusted and runs freely by hand in the door guides without binding or sticking. -
Page 15: Using The Lcd Display
Model 2745, Wireless Door Controller Installation and Operation Manual X. USING THE LCD DISPLAY (FIG. 15-18) FIG. 15 – DOOR TYPE, CHANNEL AND ADDRESS CAR DOOR / LANDING DOOR – Each controller is capable of operating only a single Car Door (Gate) or Landing Door. - Page 16 Model 2745, Wireless Door Controller Installation and Operation Manual MULTI ZONE – The MULTI ZONE will indicate that two or more Landing Controllers have been activated by the ZONE input. In a “multi zone” situation the controllers are not able to operate the doors because the elevator car can not be at more than one landing.
-
Page 17: Parameter List
Model 2745, Wireless Door Controller Installation and Operation Manual PARAMETER LIST – Para- Landing Description Range meter Pre Set Pre Set Reset Overload (0 = Do not reset, 1 = Reset) 0 - 1 Controller Type: Car Door, Landing Door, Slave... - Page 18 Parameters 27 and 48 really are speeds used for final stages of profiles. XII. LIMITED WARRANTEE a. Peelle warrants to the Customer that goods and services sold will be free from defects in material, workmanship and title and will conform to any mutually agreed upon specifications.
- Page 19 Model 2745, Wireless Door Controller Installation and Operation Manual FIG. 20 – DOOR LINE CHANNEL AND ADDRESSES Rear Line Front Line ELEVATOR NO. ______ Channel_____ Channel_____ Floor_______ Floor_______ Address_______ Address_______ Floor_______ Floor_______ Address_______ Address_______ Floor_______ Floor_______ Address_______ Address_______ Floor_______ Floor_______...
