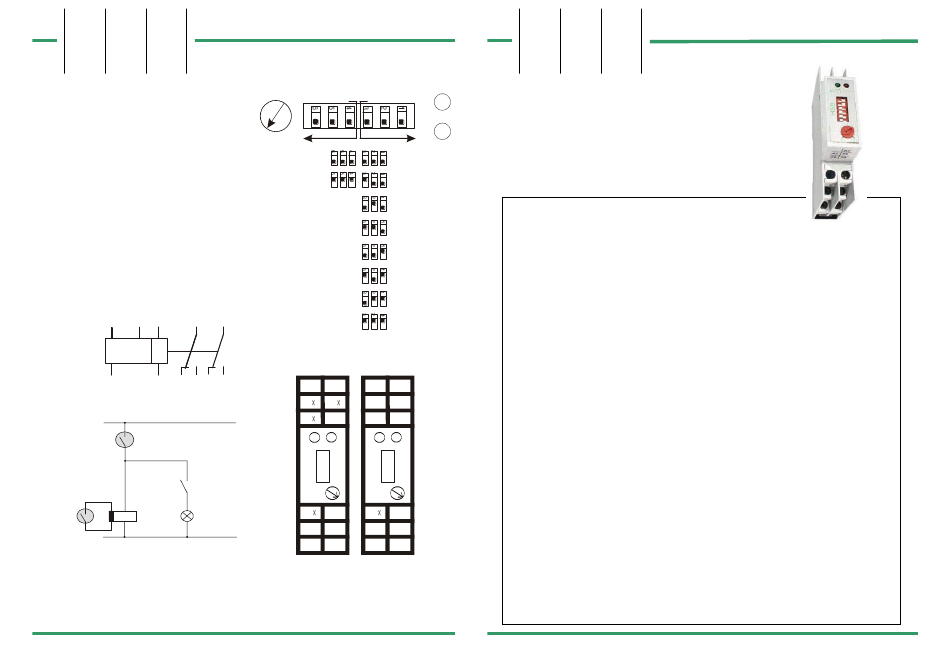

HSB SOZMR Manual

H S B
Industrieelektronik
Ansprechverzögert ; On delay ; Retard á la mise sous tension
Abfallverzögert ; Off delay ; Retard au déclenchement
* these function require B1and B2
A 3 B 1 1 5 1 5
A 1
A 2 B 2 1 6 1 8 1 6 1 8 2 6 2 8
18
K1
15
B1 A1
K1
B2 A2
Mounting
Snap-on mounting using a standard DIN rail EN 50022.
The unit is designed to allow side-by-side mounting, with an ambient temperature of < 60°C.
|H|S|B| Industrieelektronik GmbH  Hans-Boerdlein-Str. 10  97723 Oberthulba
Tel: 09736/75759-0  Fax: 09736/75759-20  E-mail: info@hsb-electronics.de Internet: www.hsb-electronics.de
Function
Time
*
2 5
SOZMR1 SOZMR2
A 1 A 3 A 1 A 3
2 5 2 6
B 1 2 8 B 1
B 2 B 2
A 2 1 5 A 2 1 5
1 6 1 8 1 6 1 8
H S B
Industrieelektronik
Multifunctions timer SOZMR
0,05 - 1s
article – nr. SOZMR1 – 022203-505005
0,15 - 3s
0,5 - 10s
Technical data
Supply voltage
1,5 - 30s
Frequency range:
Power consumption:
3,0 - 60s.
Operating mode:
Supply voltage influence:
5,0 - 100s.
Temperature influence:
Recovery time:
15 - 300s.
Repetitive accuracy:
Timing range :
0,5 - 10min
Operation indicators
Supply voltage:
Relay in working position:
Contact
Number of changeovers:
Contact material:
Maximum switching voltage:
Maximum switching current:
Maximum switching power :
contact live :
Drop-off time of switching element:
General data
Ambient temperature:
Mounting position:
LVD 2006/95/EG :
EMC Dir. 2004/108/EG :
overvoltage category :
contamination degree :
Isolation : 15/16/18 -> A1/A2/A3/B1/B2
25/26/28 -> A1/A2/A3/B1/B2
15/16/18 -> 25/26/28
Connection terminals:
Connection cross section:
Mounting:
Dimensions l x w x h:
Weight:
|H|S|B| Industrieelektronik GmbH  Hans-Boerdlein-Str. 10  97723 Oberthulba
Tel: 09736/75759-0  Fax: 09736/75759-20  E-mail: info@hsb-electronics.de Internet: www.hsb-electronics.de
manual
microcontrollerswitched
serie 17,5 mm
SOZMR2 – 777555
A1 / A2: 230V AC +/- 15%
A3 / A2: 24V AC/DC +/- 15%
0 / 50 ... 60Hz
approx. 1.0 W ; approx. 6 VA with 230V AC
continuous
< 0.01% over voltage range
< 0.01%/°C
> 100ms
 0.2%
0,05s - 10min. (8 time ranges)
LED, green
LED, yellow
1 or 2
AgNi 0,15
400V
8A
2000VA
6
30 x 10 (mechanical)
approx. 20ms
- 25 ... + 60°C
any
61812-1
61812-1
3 (300V)
2 (250V)
basic isolation (250V)
basic isolation (250V)
double isolation (250V)
Crosshead screws; M3.5 self-opening
2 x 2.5mm²
Symmetrical rail DIN
90mm x 17.5mm x 69.5mm
SOZMR1 - 96g
SOZMR_02.doc
EN 50022
SOZMR2 - 104g
