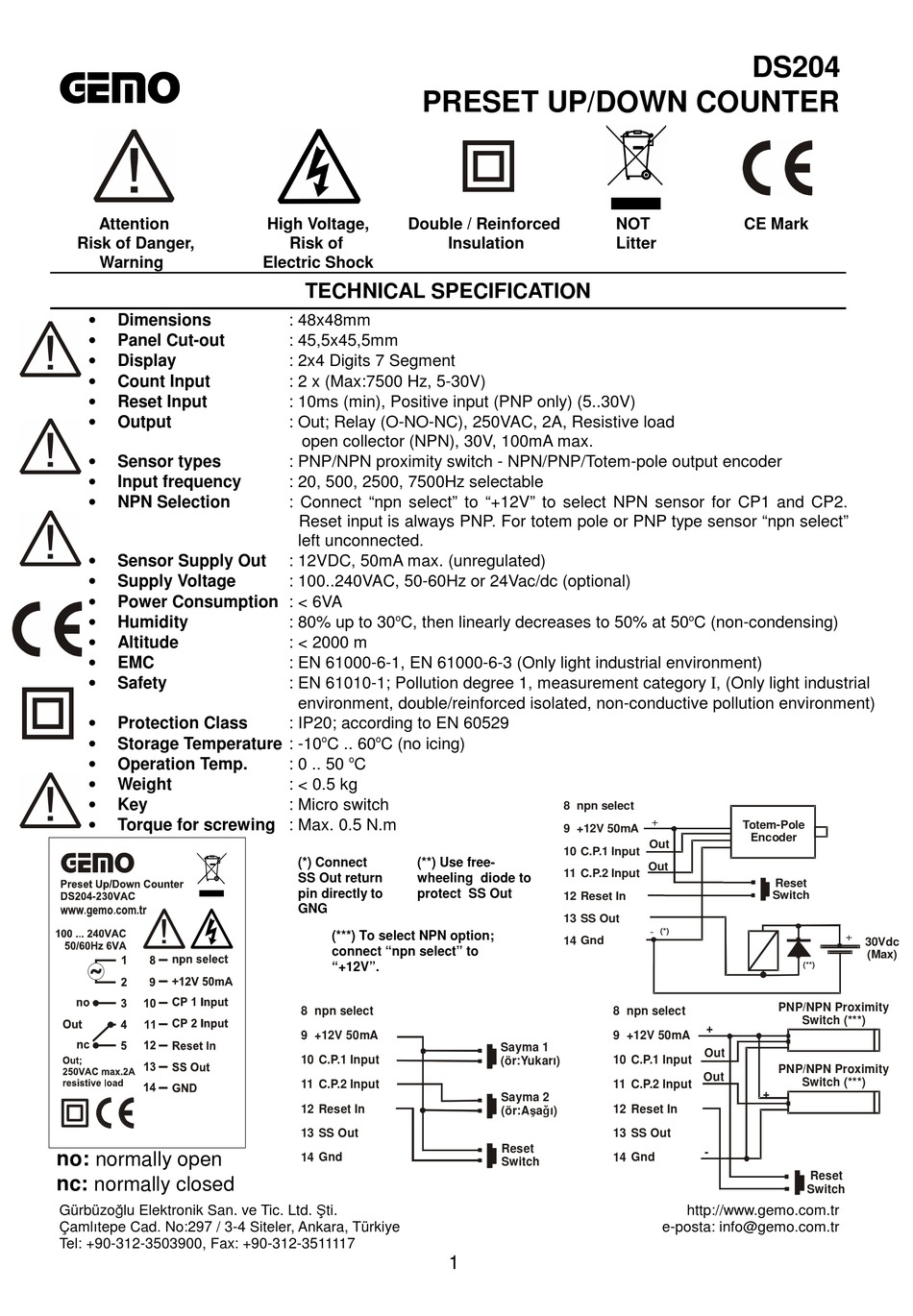

Gemo DS204 Manual

GEMO GEMO
GEMO GEMO
Attention
Risk of Danger,
Warning
•
Dimensions
•
Panel Cut-out
•
Display
•
Count Input
•
Reset Input
•
Output
•
Sensor types
•
Input frequency
•
NPN Selection
•
Sensor Supply Out
•
Supply Voltage
•
Power Consumption : < 6VA
•
Humidity
•
Altitude
•
EMC
•
Safety
•
Protection Class
•
Storage Temperature : -10
•
Operation Temp.
•
Weight
•
Key
•
Torque for screwing : Max. 0.5 N.m
no: normally open
nc: normally closed
Gürbüzoğlu Elektronik San. ve Tic. Ltd. Şti.
Çamlıtepe Cad. No:297 / 3-4 Siteler, Ankara, Türkiye
Tel: +90-312-3503900, Fax: +90-312-3511117
PRESET UP/DOWN COUNTER
High Voltage, Double / Reinforced
Risk of
Electric Shock

TECHNICAL SPECIFICATION

: 48x48mm
: 45,5x45,5mm
: 2x4 Digits 7 Segment
: 2 x (Max:7500 Hz, 5-30V)
: 10ms (min), Positive input (PNP only) (5..30V)
: Out; Relay (O-NO-NC), 250VAC, 2A, Resistive load
open collector (NPN), 30V, 100mA max.
: PNP/NPN proximity switch - NPN/PNP/Totem-pole output encoder
: 20, 500, 2500, 7500Hz selectable
: Connect "npn select" to "+12V" to select NPN sensor for CP1 and CP2.
Reset input is always PNP. For totem pole or PNP type sensor "npn select"
left unconnected.
: 12VDC, 50mA max. (unregulated)
: 100..240VAC, 50-60Hz or 24Vac/dc (optional)
o
: 80% up to 30 C, then linearly decreases to 50% at 50
: < 2000 m
: EN 61000-6-1, EN 61000-6-3 (Only light industrial environment)
: EN 61010-1; Pollution degree 1, measurement category I, (Only light industrial
environment, double/reinforced isolated, non-conductive pollution environment)
: IP20; according to EN 60529
o o
C .. 60 C (no icing)
o
: 0 .. 50 C
: < 0.5 kg
: Micro switch
(*) Connect (**) Use free-
SS Out return wheeling diode to
pin directly to protect SS Out
GNG
(***) To select NPN option;
connect "npn select" to
"+12V".

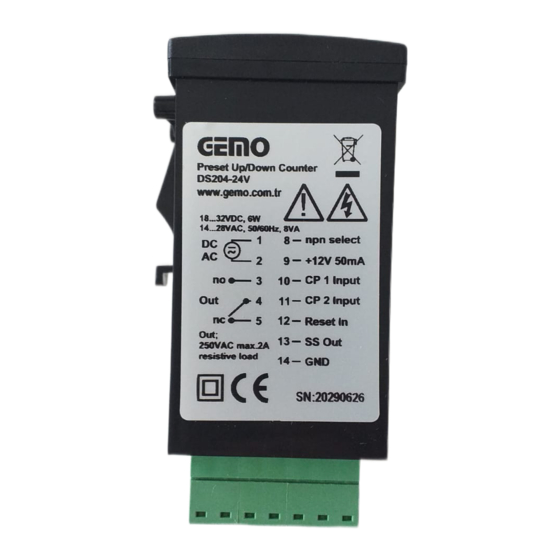

8 npn select
9 +12V 50mA
10 C.P.1 Input
11 C.P.2 Input
12 Reset In
13 SS Out
Gnd
14
NOT
Insulation Litter
8 npn select
9 +12V 50mA
10 C.P.1 Input
11 C.P.2 Input
12 Reset In
13 SS Out
14 Gnd
8
9
Sayma 1
10
(ör:Yukarı)
11
Sayma 2
12
(ör:Aşağı)
13
Reset
14
Switch
1
DS204
CE Mark
o
C (non-condensing)
+
Totem-Pole
Encoder
Out
Out
Reset
Switch
-
(*)
PNP/NPN Proximity
npn select
+
+12V 50mA
Out
C.P.1 Input
PNP/NPN Proximity
Out
C.P.2 Input
+
Reset In
SS Out
-
Gnd
http://www.gemo.com.tr
e-posta: info@gemo.com.tr
+
30Vdc
(Max)
(**)
Switch (***)
Switch (***)
Reset
Switch
