THE ELECTRIC WINCH HANDLE User manual Please read this manual before using the product Page 1...
Page 2
By telephone : +33 (0)9 72 83 17 65 By post : CHRYSADEV ZA du Palyvestre 9 Rue Nicéphore Niepce 83400 Hyères FRANCE By email : contact@Ewincher.com Find us online : www.Ewincher.com Follow us on social media : Ewincher @Ewincher Page 2...
Answers to all your questions on our site www.Ewincher.com Summary Quick start …………………………………………………………………………………………..…………… Page 4 Specifications and Description ..………………………………….……………………………………… Use ……………………………………….…………………………………….……………………………………… Battery - Use and charge …………………………………………….……………………………………… Special features and important information ………………………………….…………………… General safety instructions and declaration of conformity …………………………………...
With no actions on the buttons, you can position the handle everywhere on the winch to choose the best position for use. Ewincher is now ready. You can use your handle in one of his three modes : • Electric mode (full assistance) •...
Page 5
! Combined mode Manual mode When using the electric mode, Keep pressing the top button and use Ewincher you can also turn the handle like a regular handle just like a regular winch handle. Your maneuver will be...

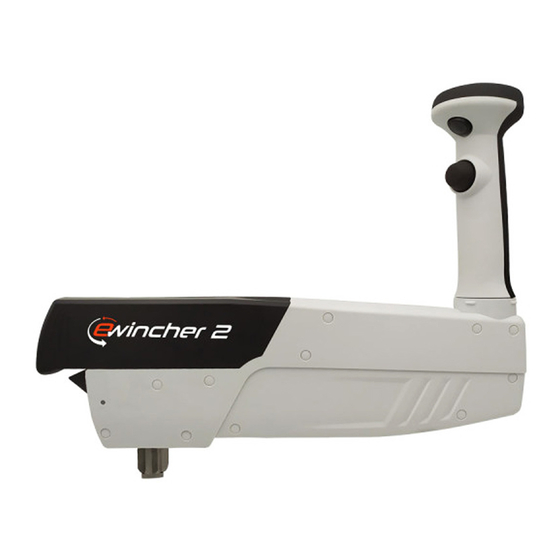

Congratulations You have just purchased Ewincher, the first power-assisted and connected winch handle. With the Ewincher, you're embarking "muscle" on board that you can use at all of your boat's stations. Your maneuvers will become faster and more powerful, while allowing you to remain in an ideal position.
Ewincher, as shown in the circular image. 3. Check that everything is in place Make sure that Ewincher is locked in : it must be fully inserted into to the bottom of your winch and resting on top of it.
Page 8
The best position to use Ewincher To use Ewincher in power-assisted mode, you must hold it firmly, as you would an electric screwdriver. There are two important rules to follow to hold Ewincher with the least amount of effort : 1.
Page 9
Choose the direction of rotation If you pull EWINCHER towards you and swivel the handle to the other side of the winch, the handle will automatically change its direction of rotation. You can easily choose your winch speed this way. The direction of rotation that you choose is indicated by the...
Ewincher can connect to a smarphone via Bluetooth, using the Torque limiter Ewincher app available at the Play Store and Apple Store. You can adapt your handle by adjusting the maximum effort you wish to exert (between 10kg and 36kg of effort on the handle). You can also consult a range of usage information, such as duration of use, maximum effort applied, etc..
When the internal temperature of the handle is too high, the safety mechanism turns on and the red LED light stays on. Wait a little while and you'll be able to use your Ewincher again once the temperature has gone down enough. To power it on, remove and insert the battery.
3. Your Ewincher is tight but it is always preferable to put in a dry environment, when you do not use it (we avoid the negative effects of humidity by condensation).
Page 13
2. Use Ewincher solely with its specific battery. Use of other batteries carries the risk of bodily injury or fire.
Page 14
General safety instructions Declaration of conformity • These chargers are not designed for any other purpose besides charging the rechargeable batteries sold by Chrysadev. Any other use presents a risk of fire, electric shock, or electrocution. • Do not expose the charger to rain or humidity. •...
Page 15
Declaration of conformity MACHINERY DIRECTIVES Ewincher, electric power-assisted winch handle Chrysadev certifies that the Ewincher product complies with directives 2006/42/EC, 2014/53/EU, 2011/65/EU, and 2012/19/EU. The product is also compatible with Directives 2014/30/EU and 2014/35/EU. For more information, please contact Chrysadev at the address here after.
Environmental protection Warranty Ewincher Handle Separate collection. Do not throw this product out with normal household waste. At the end of your handle's useful life, or if it is of no further use to you, do not throw it out with household garbage, but in the appropriate separate collection container.
