Summary of Contents for Digilin WebColour

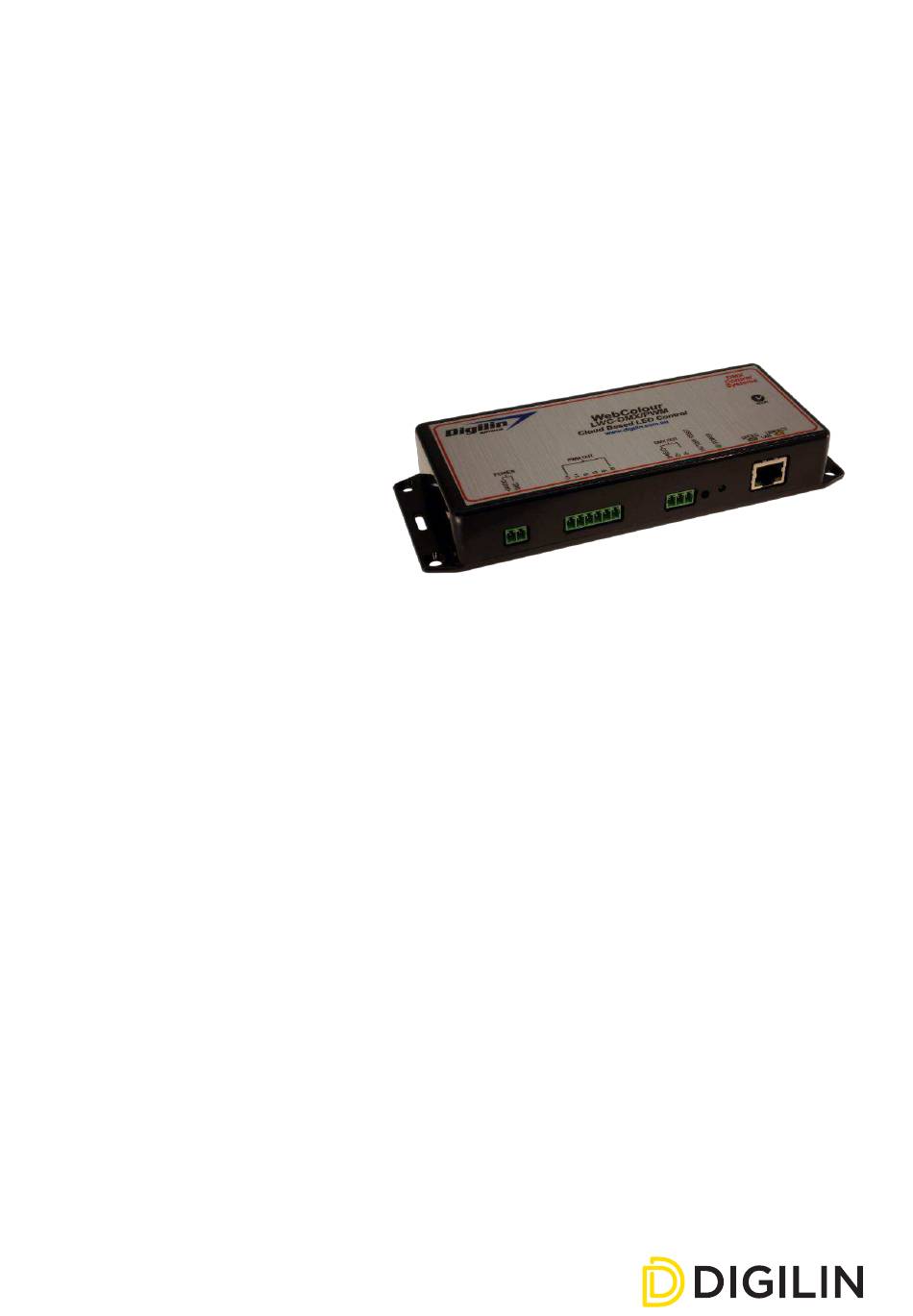

- Page 1 WebColour Web Based LED Control User Manual ©2020 Digilin Technologies Document Rev: 7.0 - 23 November 2020 Product specifications are subject to change without notice...
-
Page 2: Table Of Contents
WebColour - Web Based LED Control User Manual 7.0 - 23 November 2020 Table Of Contents Notes ............................................................. 2 Introduction ........................................................3 Specifications ......................................................3 Physical ........................................................3 Inputs ..........................................................3 Outputs ........................................................3 Installation ........................................................4 Quick Start Guide................................................... 4 Determining the IP Address .............................................. -
Page 3: Introduction
7.0 - 23 November 2020 Introduction The WebColour is a web-based interface to control RGB or RGBW LED light installations. The user can access the interface from any device that includes a modern web browser, this includes computers, laptops, smart phones, tablets, smart TVs and gaming systems. The WebColour includes triggering options for power-up and 10 alarms that can be configured to occur on individual days, and uses NTP for accurate time keeping. -
Page 4: Installation
Right Arrow This allows the WebColour to set it’s time from an internet source. It is only necessary to disable this if the WebColour will not have a permanent internet connection. Click the right arrow again to bring up the System settings. -
Page 5: Determining The Ip Address
To do this, open a command prompt window, and enter the command “ping unitname”. The result will include the IP Address of the WebColour. An example of this is given in Figure 1, where the Unit Name is webcolour and the returned IP address is 192.168.0.8. - Page 6 WebColour - Web Based LED Control User Manual 7.0 - 23 November 2020 C:\Users\Craig.DIGILIN>ping 192.168.0.255 Pinging 192.168.0.255 with 32 bytes of data: Request timed out. Request timed out. Request timed out. Request timed out. Ping statistics for 192.168.0.255: Packets: Sent = 4, Received = 0, Lost = 4 (100% loss), C:\Users\Craig.DIGILIN>arp -a...
-
Page 7: Operation
WebColour - Web Based LED Control User Manual 7.0 - 23 November 2020 Operation Accessing the User Interface The user interface can be accessed through a modern web browser by entering either the Unit Name (as per the system settings) or IP address into the address bar eg http://webcolour http://192.168.0.8... -
Page 8: Toggling Power
User Manual 7.0 - 23 November 2020 Toggling Power To turn the LEDs controlled by the WebColour off, simply press the power button. To turn the LEDs controlled by the WebColour on, press either the power button or the show button. -
Page 9: Favourites
Press the load button. The selected favourite will load immediately. Saving To save over a favourite: Configure the output of the WebColour to the desired settings. Figure 6. Favourites page Click on the favourites button Select the favourite you wish to save over from the drop-down box. -
Page 10: Configuration
WebColour - Web Based LED Control User Manual 7.0 - 23 November 2020 Configuration Alarms Set an Alarm Bring up the Alarms Configuration Page. Select the alarm you want to configure from the drop-down box. Select the days on which the alarm is to occur. If no days are selected, the alarm is disabled. -
Page 11: Clock
The Copy System Time to WebColour button becomes enabled when NTP is disabled. It allows the user, as it says, to copy the time from the system they are using to access the WebColour to the WebColour. In this way, the time on the WebColour can be set when NTP is disabled. -
Page 12: System
Netmask and Gateway as it was set by DHCP. Output Mode The Mode option select if the WebColour is outputting control for RGB (3 channels) or RGBW (4 channels). If RGB is selected the output on the fourth channel is turned off. -
Page 13: Reset To Factory Settings
WebColour - Web Based LED Control User Manual 7.0 - 23 November 2020 Reset to Factory Settings If it is required, the system can be reset to factory settings by pressing and holding the factory reset button for 2 seconds. This will set the parameters back to default, as per Table 1... -
Page 14: Shows
User Manual 7.0 - 23 November 2020 Shows Shows are a sequence of colours over a time period. On the WebColour they are broken into 3 groups; Subtle, Dynamic and Smart. Subtle Subtle Shows feature colour transitions that may not necessarily be noticeable, allowing the colours to shift and dance in the background. - Page 15 WebColour - Web Based LED Control User Manual 7.0 - 23 November 2020 RGB Mix 2 RGB colour cycle 2 with fade Total Show Length: 50 seconds RGB Mix 2 RGB colour cycle 2 with fade Total Show Length: 100 seconds 10.
- Page 16 WebColour - Web Based LED Control User Manual 7.0 - 23 November 2020 Red and Pink mix Total Show Length: 18 seconds 17. Warm Mix Warm Colour mix Total Show Length: 30 seconds 18. Cool Mix Cool Colour Mix Total Show Length: 30 seconds 19.
- Page 17 WebColour - Web Based LED Control User Manual 7.0 - 23 November 2020 25. Smooth Mix Smooth Colour Mix with no dominant green or red Total Show Length: 30 minutes 26. Smooth Mix Smooth colour mix with no dominant red or green, with 1 minute hold on each colour Total Show Length: 26 minutes, 24 seconds 27.
-
Page 18: Dynamic
WebColour - Web Based LED Control User Manual 7.0 - 23 November 2020 Warm Colours twinkling/sparkling effect Total Show Length: 8.65 seconds 34. Twinkle White White twinkling/sparkling effect Total Show Length: 8.65 seconds 35. Twinkle RGB RGB twinkling/sparkling effect Total Show Length: 39.25 seconds... - Page 19 WebColour - Web Based LED Control User Manual 7.0 - 23 November 2020 RGB Mix 2 RGB Colour cycle 2, with 3 second fade and 5 second hold Total Show Length: 1 minute, 4 seconds RGB Mix 2 RGB Colour cycle 2, with 3 second fade and 30 second hold...
- Page 20 WebColour - Web Based LED Control User Manual 7.0 - 23 November 2020 Maroon & Blue, with 2 second hold & 1 second fade Total Show Length: 10 seconds 15. Traffic Lights Traffic Light Sequence Total Show Length: 15 seconds 16.
-
Page 21: Smart
WebColour - Web Based LED Control User Manual 7.0 - 23 November 2020 23. Magenta Pulse Pulsing magenta Total Show Length: 3 seconds 24. White Pulse Pulsing white Total Show Length: 3 seconds 25. RGB Pulses Pulsing RGB colour cycle... - Page 22 WebColour - Web Based LED Control User Manual 7.0 - 23 November 2020 8. Random Randomly generated colour sequence, with each second being held for 2 minutes and a 5 second fade between colours. 9. Random Randomly generated colour sequence, with each second being held for 5 minutes and a 5 second fade between colours.
- Page 23 WebColour - Web Based LED Control User Manual 7.0 - 23 November 2020 24. Compliment Flash Flash between the selected static colour and its direct opposite on the palette, 30 second hold, no fade. 25. Compliment Pulse Pulse between the selected static colour and its direct opposite on the palette, 5 second hold, 5 second fade.
-
Page 24: Appendix A. 4Ch Cv Led Control Wiring Diagram
WebColour - Web Based LED Control User Manual 7.0 - 23 November 2020 Appendix A. 4CH CV LED control Wiring Diagram digilin.com.au Page 24 of 25 +617 3899 1267... -
Page 25: Appendix B. Wiring Diagram To Dmx
WebColour - Web Based LED Control User Manual 7.0 - 23 November 2020 Appendix B. Wiring diagram to DMX digilin.com.au Page 25 of 25 +617 3899 1267...
