USER'S MANUAL
FLEXIBLE WATER TANK
Rain water recovery
Read carefully and keep for further reference.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the CAPSULEO and is the answer not in the manual?

Questions and answers

Summary of Contents for AQUALUX CAPSULEO

  • Page 1 USER’S MANUAL FLEXIBLE WATER TANK Rain water recovery Read carefully and keep for further reference.
  • Page 2 PREAMBLE WARNING The system must be installed in compliance with these document recommendations in order to ensure a proper functioning. Each owner can use the rain water fell on his/her soil according to the 641 article of the French Code Civil.

  • Page 3: Equipment Supplied

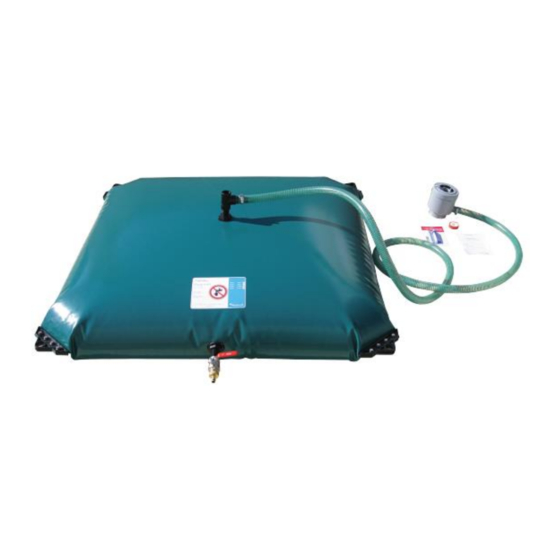

    1 – EQUIPMENT SUPPLIED Référem3) Volume Volume Length Width Height Weight Reference (litre) (kg) 105804 1.40 1.45 In the box you will find: 1 flexible tank equipped with a thread overflow 1 ” and a thread output 1” 1 non-assembled parts sachet (repair kit, sluice gate…) 1 flexible pipe (ref GLA32376)
  • Page 4 Composition of the sachet GLOSSARY Aqualux MARKER reference DESIGNATION TECTEF12 TEFLON ROLLER 12MX12MM 200199 REPAIR KIT 25G PIECE OF FABRIC (30cm x 30cm square) 106183 TE 90° TAR 1''1/4 PG 106182 FLUTED THREAD END PIECE 1-1/4X32 COLSX143252 SERFLEX COLLAR SX 14+ 32-52...

  • Page 5: Tank Installation

    Sachet of the gutter device composition MARKER DESIGNATION Gutter recovering device Pipe adaptor Adaptor DN 70/80 Adaptor DN 70/80 2 – TANK INSTALLATION WARNING ! Do not open the box with a sharp tool which can damage the flexible water tank The floor must be resistant enough to support the full flexible water tank without caving in.
  • Page 6 Step 1: Set up of the brass sluice gate -ref: 102948- and the tap nose (ref: 103004). We advise to put TEFLON (pictures below) Set up of the tap nose Warning: When there is a problem with the opening direction of the sluice gate handle. You can switch it by unscrewing the screw above the sluice gate and invert the handle.
  • Page 7 Step 2: Assembly of the fluted adaptor with the 90° T Installation of the TEFLON Step 3: Assembly of the 90° T with the overflow – on top of the tank Installation of the TEFLON. Screw the assembled parts on the tank. Warning: you must hold the overflow above the tightening screw.
  • Page 8 Result: Step 4: Assembly of the glanaflex and the fluted end piece with the tightening collars...
  • Page 9 Step 5: Assembly of the flexible pipe on the recovering device with a tightening collar. Step 6: Installation of the device on the gutter Features of the device: keep the water unspoiled by the roof Avoid mud Well-spread filtering surface thanks to a stainless steel filtering grid.
  • Page 10 Installation:...

  • Page 11: Maintenance

    3 – FILLING AND DISTRIBUTION The user is responsible for the compliance with the regulations of his/her installation. FILLING Tank without pack The filling is made through the T which is also used as overflow and vent hole. You must connect the tank with flexible pipes in order to tolerate the water level variations. Do not tense the pipes.
  • Page 12 This guarantee will apply in France only. In the scope of this warranty, AQUALUX' only obligation will be (at AQUALUX' choice) the free replacement or repair of the product or component recognized as defective by AQUALUX' services. All other fees will be at buyer’s cost.

This manual is also suitable for:

105804
