Summary of Contents for A&A Tech EMS DAQ R02.01
- Page 1 Operators and Maintenance Manual Page 1/18 Measuring module EMS DAQ R02.01 Operators and Maintenance Manual Measuring module EMS DAQ R02.01 Rev. 01 – May 2017 Copyright: Auto & Aero Technologies Sp. z o.o. Mazowiecka 10/5, 20-723 Lublin, Poland ■ email: info@aatech.pl ■ www.aatech.pl...
-
Page 2: Table Of Contents
Operators and Maintenance Manual Page 2/18 Measuring module EMS DAQ R02.01 Table of Contents Introduction ....................3 General information ................5 Handling in transport and storage ............6 Installation ..................... 6 3.1. Environmental specifications ............6 3.2. Dimensions .................. 7 3.3. -
Page 3: Introduction
Fuel level; Pitch and roll trim position. The purpose of EMS DAQ R02.01 type measuring module is to collect input, analyse it in terms of threshold levels, and record selected information. Measured values are communicated to the pilot by means of the following displays type EEM MOT 01 FE…. - Page 4 The module is designed to work with ROTAX 912 UL, 912 ULS and 914 engines. A list of signals processed by the module together with sensor types is presented in Table 1. Tab. 1 Sensors providing input for EMS DAQ R02.01 Module Parameter Sensor...
-
Page 5: General Information

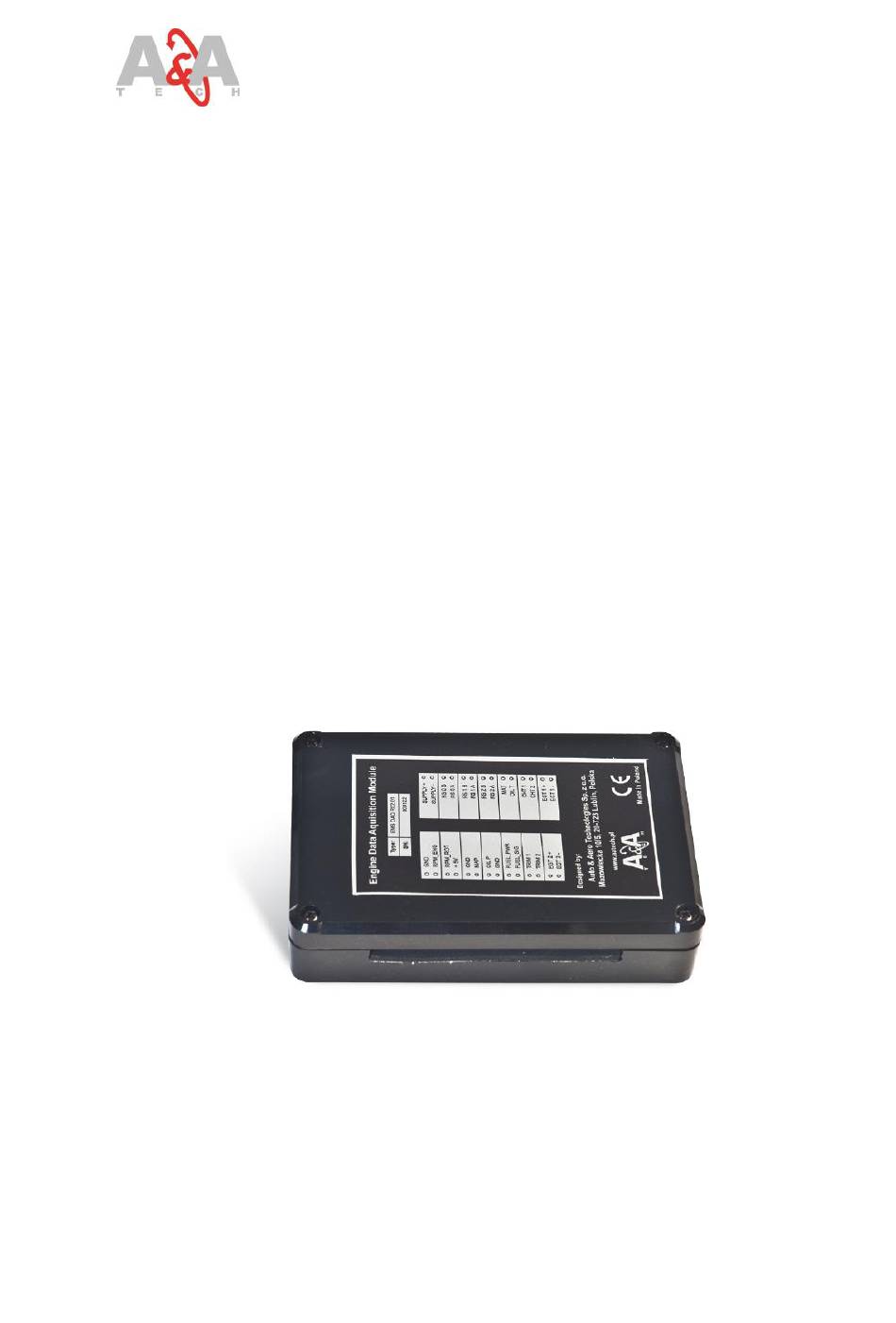

Page 5/18 Measuring module EMS DAQ R02.01 Fig. 1. EMS DAQ R02.01 module (complete casing and casing with lid removed) 1. General information This manual contains binding information, guidelines and warnings for safe handling and maintenance of this particular instrument before installation, during installation and in its operating phase. -
Page 6: Handling In Transport And Storage
3. Installation 3.1. Environmental specifications The EMS DAQ R02.01 module has been designed to be installed in engine compartment of ultralight aircrafts of ceiling not exceeding 3 000 m (10 000 ft). Acceptable ranges of operating parameters are listed below: ... -
Page 7: Dimensions
3.4. Power and wiring The EMS DAQ R02.01 module is powered from the aircraft power system. Power specifications: nominal supply voltage 12V, acceptable supply voltage range 8 ÷ 30V, current < 80mA. - Page 8 Operators and Maintenance Manual Page 8/18 Measuring module EMS DAQ R02.01 The module is connected to the system by means of screw connection terminal blocks attached to printed circuit plate inside the casing. A schematic diagram of the connection is shown in Figure 3.
- Page 9 Operators and Maintenance Manual Page 9/18 Measuring module EMS DAQ R02.01 Fig. 1 EMS DAQ R02.01 Module connections Copyright: Auto & Aero Technologies Sp. z o.o. Mazowiecka 10/5, 20-723 Lublin, Poland ■ email: info@aatech.pl ■ www.aatech.pl...
-
Page 10: Operation And Maintenance
Total engine running time (HOOBS) ± 1 min 4.2. Signal analysis The EMS DAQ R02.01 Module analyses and records instances and duration of the signals’ exceeding threshold values for selected engine parameters Copyright: Auto & Aero Technologies Sp. z o.o. - Page 11 (HOOBS) until the occurrence. Tab. 3 Types of threshold crossings recorded by EMS DAQ R02.01 Module Signal Threshold levels Engine speed >...
- Page 12 These logs (all or selected) can be cleared by the supplier of the aircraft and by the user. The EMS DAQ R02.01 Module analyses and records statistics of selected parameters of engine and aircraft operation. These parameters are listed in Table 4.
-
Page 13: Additional Functionalities
Operators and Maintenance Manual Page 13/18 Measuring module EMS DAQ R02.01 to 20 to 40 to 60 Oil temperature (°C) poniżej 0 from 0 from 20 from 40 (if rotor speed > to 20 to 40 to 60 200 rpm) -
Page 14: Service, Diagnostics And Repairs
Operators and Maintenance Manual Page 14/18 Measuring module EMS DAQ R02.01 5. Service, diagnostics and repairs 5.1. Service life a) TBO of the module is not defined. b) In the case of failure or error, the module must not be used any more. -
Page 15: Troubleshooting
Operators and Maintenance Manual Page 15/18 Measuring module EMS DAQ R02.01 5.4. Troubleshooting a) If information is not displayed on some of the monitors (type FE…) when power is applied (Fig. 8), check connection inside measurement module. Check: power connection; ensure that your power supply is capable of supplying at least 8 volts, and no more than 30 V. -
Page 16: Re-Programming
Operators and Maintenance Manual Page 16/18 Measuring module EMS DAQ R02.01 The module does not contain any user-serviceable parts. Unauthorized repairs or modifications may result in permanent damage to the equipment and void the warranty. If the module fails, return the device to the Manufacturer with description of the failure circumstances and symptoms. - Page 17 Operators and Maintenance Manual Page 17/18 Measuring module EMS DAQ R02.01 labour. The customer is, however, responsible for any transportation cost. The repair or replacement will be completed within 30 days from delivery of the product to Auto & Aero Technologies Sp. z o.o.
- Page 18 Operators and Maintenance Manual Page 18/18 Measuring module EMS DAQ R02.01 The information in this document is subject to change without notice and should not be construed as commitment by Auto & Aero Technologies Sp. z o.o. These technical data and the information embfromied therein are the property of Auto &...
