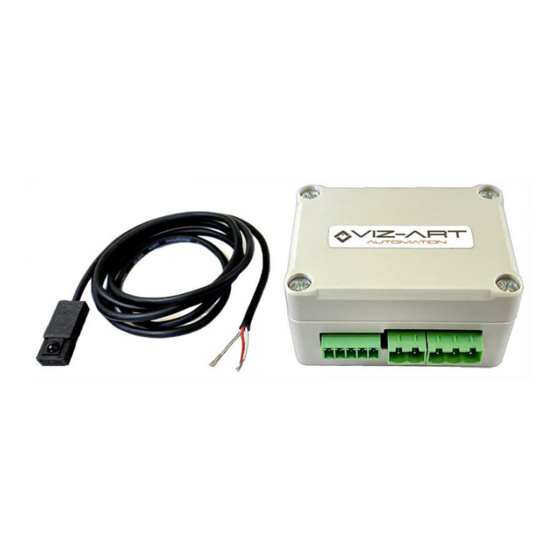

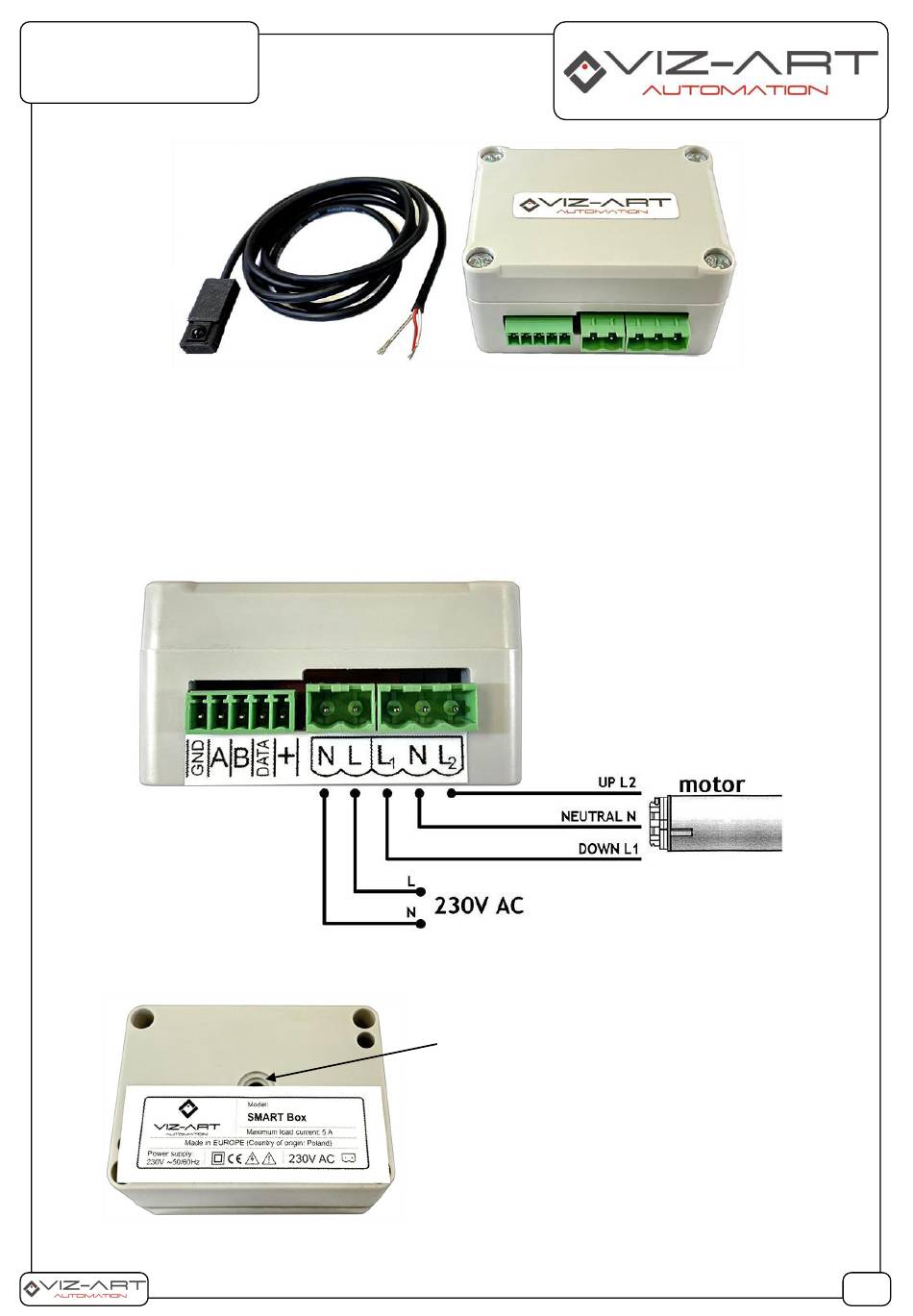

- Page 1 SMART Box 2.0 Device controller Programming the controller set SMART Box 2.0 consisting of: • IR receiver • RS232 • Low Voltage Control - TRIGGER 5-30V • Potential Free Control (Dry Contact Control) PROGRAMMING BUTTON...
- Page 2 Before turning on the power, press and hold the programming button and then turn on the power (button still pressed). Count the LED flashes. 3 flashes: the device will receive signals from the IR infrared remote control 6 flashes: the device will receive codes from the RS232 serial port (logical '1' -5V, logical '0' + 5V) 9 flashes: the device will receive codes from the UART serial port (logical '1' + 5V, logical '0' 0V) CONNECTION DIAGRAM RS232 control/UART PIN 5 CONNECT TO GND...
- Page 3 Programming IR infrared remote control code: PROGRAMMING BUTTON After turning the power on, press shortly the programming button once. The LED diode will light up. It is waiting for the code from the IR remote control switching on the '1' direction. After receiving the code, the LED diode will blink fast several times and light up again.
- Page 4 I hereby declare, with sole responsibility, that the products: TRIGGER 5-30V DC ; TRIGGER 230V AC (RF); remote control VIZMOTE1; remote control VIZMOTE2; Radio Receiver RF; SMART BOX; SMART BOX 2.0; EXTEND IR they comply with the following main requirements: 1999/5/EC Radiocommunication Equipment Directive (R&TTE),...
