Summary of Contents for Dragonfly Rio Mobility

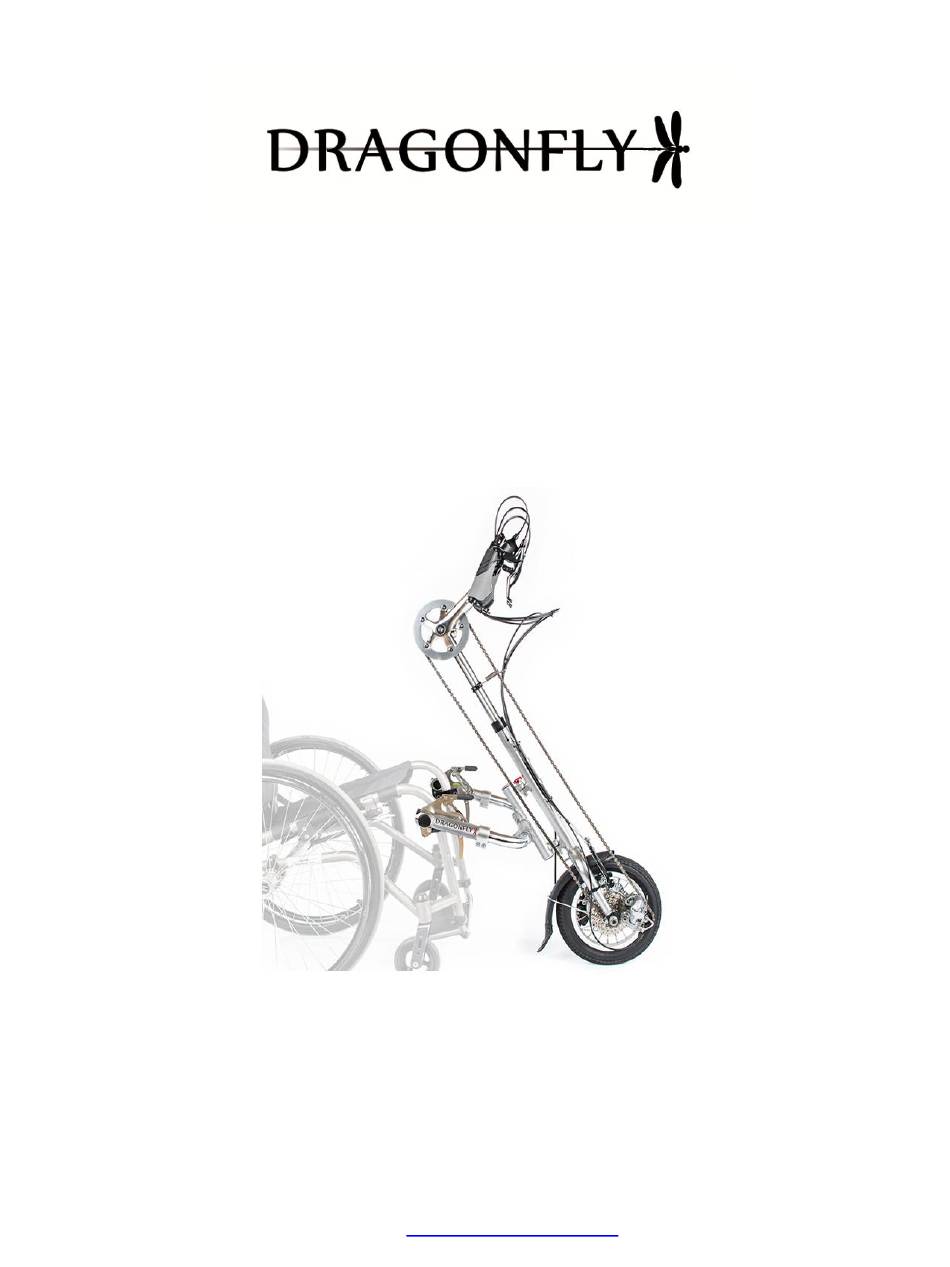

- Page 1 Manual Handcycle User Manual Rio Mobility Phone: 415-552-6277 Email: sales@riomobility.com Website: www.riomobility.com...
- Page 2 IMPORTANT! Consult with your health care professional to determine if the Dragonfly is appropriate for you. DO NOT OPERATE THIS EQUIPMENT WITHOUT FIRST READING AND UNDERSTANDING THIS MANUAL. IT IS RECOMMENDED THAT INITIAL SETUP OF THIS HANDCYCLE BE PERFORMED BY A QUALIFIED TECHNICIAN, SUCH AS A WHEELCHAIR OR BICYCLE MECHANIC.
-
Page 3: Wheelchair Requirements

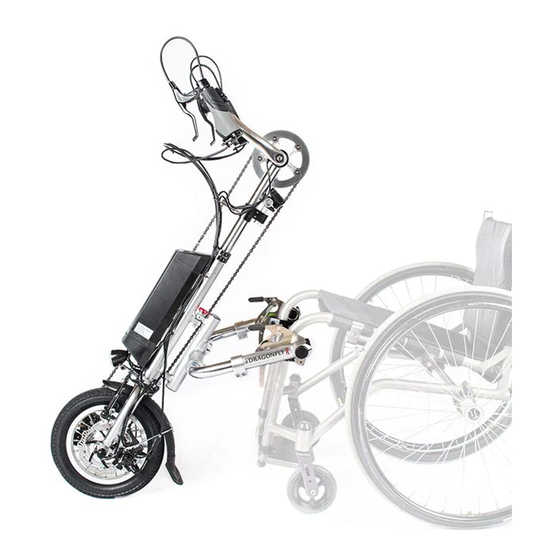

1. Wheelchair Requirements The Dragonfly is compatible with almost all wheelchairs without the need for any special adapters. For a complete listing of compatible wheelchairs, visit Wheelchair riomobility.com. If your wheelchair is not listed, please contact Frame customer service at sales@riomobility.com. - Page 4 2. Installing The Dragonfly Visit www.riomobility.com for the Dragonfly installation video: The installation of the clamp and frame system for the Dragonfly is the same as the Firefly. The handcranks can be moved to the closest position, like the handlebars on the Firefly.
- Page 5 3. Controls DISC BRAKE LEVER V - BRAKE AND SHIFTER LEVERS REMOVABLE HANDLES...
-
Page 6: Maintenance
We recommend keeping the box your Dragonfly was shipped in; it makes a handy container for storage of your handcycle, your handcycle accessories, the included tools, and the manual for storage and travel. It can also be used to ship the unit to the factory in case of maintenance... -
Page 7: Troubleshooting
5. Troubleshooting When climbing a hill, the front wheel slips. The front wheel is too far forward of your center of gravity. Please adjust the handcycle so that the f ront wheel is as close as possible to the footrest without interfering w h i l e driving straight or turning. - Page 8 ▫ Check to make sure all nuts and bolts are tight and all latches are secured. ▫ Make sure the hand brakes work properly before riding your handcycle. ▫ Do not add any parts or accessories not authorized by Rio Mobility to your handcycle. Any addition could be unsafe and will void your warranty.
- Page 9 Be aware of road surfaces, especially on inclines and declines. Watch out for water, ice, and oil film. Transferring DO NOT attempt to transfer into or out of your chair with the Dragonfly attached. You MUST detach the handcycle before transferring.
-
Page 10: Limited Warranty
7. Limited Warranty Rio Mobility warrants the Dragonfly for one (1) year from the date of initial consumer purchase. This warranty covers any defects in materials and workmanship. This warranty is only available for the original owner or purchaser and is non- transferable.
