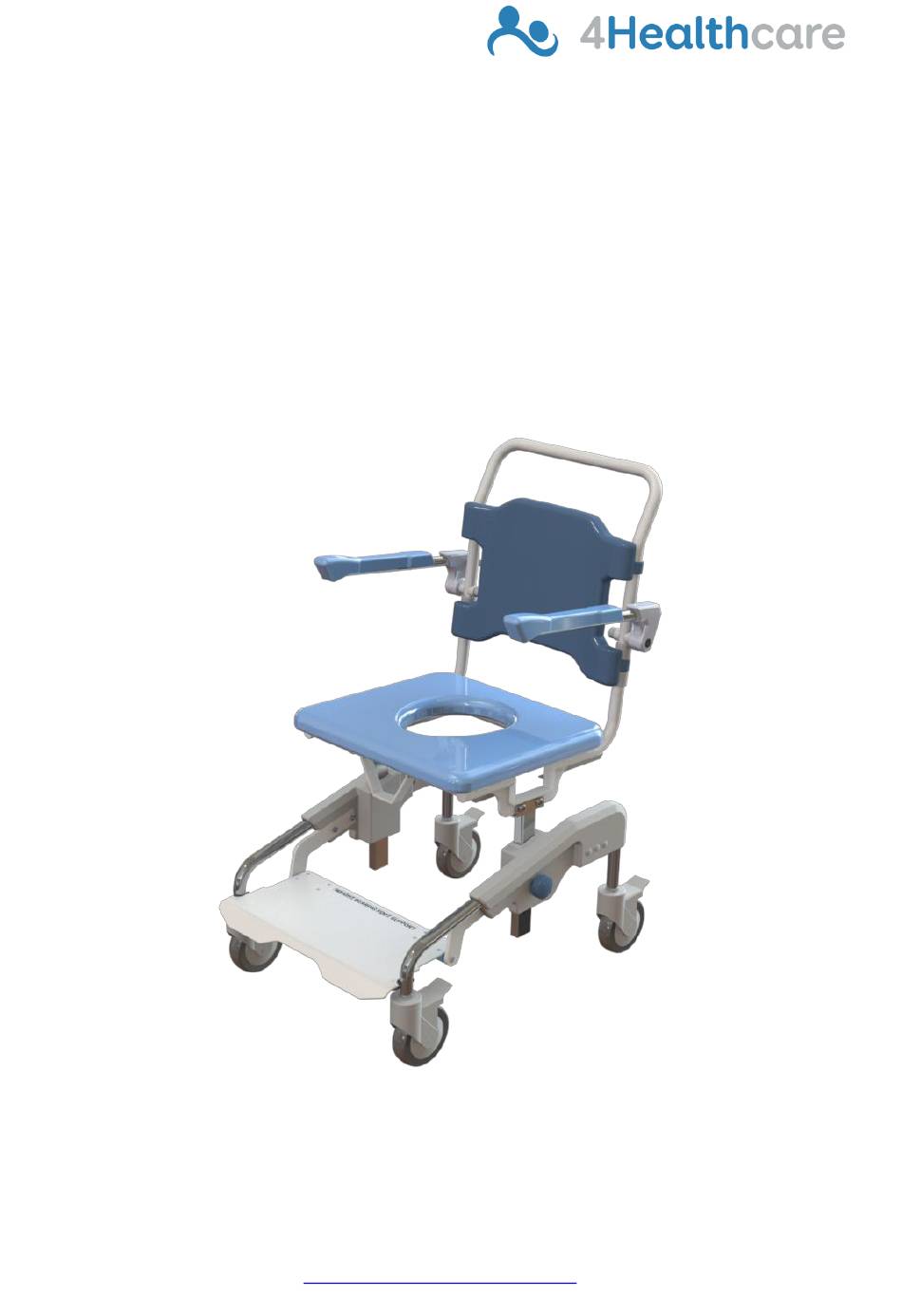

- Page 1 Revision: IR Date: 15 February 2018 User Instruction Manual 4H413 Shower Commode Weight Bearing Footplate 6 Welsh Place Landsdale WA 6065 Tel: (08) 9302 4757 Fax: (08) 9302 4524Website: www.4healthcare.com.au Email: Page 1 of 10 customerservice@4healthcare.com.au ABN 51 156 666 161...
-
Page 2: Table Of Contents
Revision: IR Date: 15 February 2018 Table of Contents PRODUCT DESCRIPTION .................... 3 SPECIFICATIONS ......................3 ASSEMBLY INSTRUCTIONS………………………………………………………………….4 OPERATING INSTRUCTIONS ..................5 SAFETY PRECAUTIONS ....................9 CARE & MAINTENANCE INSTRUCTIONS ..............9 OPTIONS ........................9 WARRANTY ........................9 9. SPARE PARTS ......................10 6 Welsh Place Landsdale WA 6065 Tel: (08) 9302 4757... -
Page 3: Product Description
Revision: IR Date: 15 February 2018 1. PRODUCT DESCRIPTION This Shower Commode has been designed to comfortably position the occupant in the most desirable seating position by using its adjustable features including seat height, armrest height, padded back height and seat depth. It has simple to use swing-up arms with padded armrests and adjustable seat height. -
Page 4: Assembly Instructions
Revision: IR Date: 15 February 2018 3. ASSEMBLY INSTRUCTIONS • Remove the contents from the box and remove the packaging and place in the appropriate bin. • Lay out the parts and inspect for any damage. • Locate the supplied allen key and remove the two bottom button head screws on the backrest frame. -
Page 5: Operating Instructions
Revision: IR Date: 15 February 2018 4.OPERATING INSTRUCTIONS 1. Swing up Arms • To swing up the arm hold it around the tube and padded armrest and lift it up untill it clears the backrest. • When lowering the armrest make sure to gently lower the arm untill it stops. - Page 6 Revision: IR Date: 15 February 2018 Flip down Weight Bearing Footplate • To flip it down place your foot on top of the plate and pull it towards you. Once the footplate is past centre it will lower down on its own in a controlled manner.
- Page 7 Revision: IR Date: 15 February 2018 Seat depth adjustment • Use a 3mm Allen key to unscrew the fasteners on the pan runner. There are 2 positions spaced at 25mm, select desired hole and screw fasteners in place. Note, seat optional Padded seat fitment –...
- Page 8 Revision: IR Date: 15 February 2018 Padded backrest removal • To remove the padded backrest firstly flip up the footplate and stand in front of the commode facing the backrest. Grab hold of the backrest by a top corner then pull it towards you until the clip is off the frame, repeat process on the bottom corner then do the other side.
-
Page 9: Safety Precautions
Revision: IR Date: 15 February 2018 4. SAFETY PRECAUTIONS The Maximum Occupant Weight for the shower commode is 180kg. Only use the commode indoors and on flat even surfaces. DO NOT use in swimming pools, intended for shower use only. Ensure all brakes are engaged when transferring the client in and out of the commode. -
Page 10: Spare Parts
Revision: IR Date: 15 February 2018 10. SPARE PARTS 6 Welsh Place Landsdale WA 6065 Tel: (08) 9302 4757 Fax: (08) 9302 4524Website: www.4healthcare.com.au Email: Page 10 of 10 customerservice@4healthcare.com.au ABN 51 156 666 161...
