Installation Manual
HighEfficiencyHalf-CellModule

Introduction

This manual contains information about electrical and
mechanical installation of the solar panels: DNA-120
and DNA-144 Series

Disclaimer of Liability

Installation techniques and methods of this product is
beyond Aptos Solar Technology's control. AST doesnot
assume responsibility of loss or damage resulting from
improper installation, handling or use. AST disclaims liability
for damage, loss, expense arising out of, or in any way
connected with installation, use or maintenance by using this
manual

Regulation Information

This certified product meets the UL1703 standard for
maximum system voltage of 1500V with maximum
overcurrent protection rating of 20A. The installer or system
integrator is assumed the responsibility to ensure compliance
with all local electrical codes which may be applicable.
Warnings & Safety
Solar panels generate electricity when exposed to light,
which can cause lethal shock and burnhazards.
Only authorized, qualified and trained installers should
handle these solar panels. Do not touch live terminals with
bare hands. Work only in dry weather with dry solar panels
and tools.
Do not make connections while under load. Do not
disconnect under load. Use insulated tools for electrical
connections. Do not step or stand on the solar panel. Do not
disassemble the solar panel or junction box.
Carry panel with two or more person. Do not carry by its
wires or junction box. Wear non-slip, suitable gloves and
protective clothing.
Do not install the solar panel where flammable vapors or
gasesare present. Do not install in corrosive environment.
Do not direct artificially concentrated sunlight on solar panel.

Fire Rating

If mounted over a roof, the solar panel shall be mounted
over a fire resistant roof covering rated for the application.
Refer to local authority for guidelines and regulations for
building fire protection and required slope. The module
fire performance rating is Type I.
www.aptossolar.com | info@aptossolar.com

Installing the Panel

Aptos Solar Technology panels may be installed invarious
applications. The particular mounting is to be defined by
the system designer. Installer must handle and mount the
modules to prevent any impact on front surface, back
surface, and frames as this could result in damage.
Support structures used to support AST DNA panels should
be wind rated and approved for use by the appropriate
codes prior to installation. In addition, they must be
designed from materials that retain structural integrity over
the 25 years lifespan of the panels they support.
AST DNA panels may be installed in portraits or landscape
orientation.
A minimum of tilt angle of 5 degrees is required to ensure
drainage and enable rain water.
The junction box edge should be at the top when mounted
in portrait orientation.
Specific rails and frame clips approved by AST are listed in
Table 1. Alternative rails and frame clips/fasteners need to
be approved by AST to ensure compliance toUL1703 safety
standard.

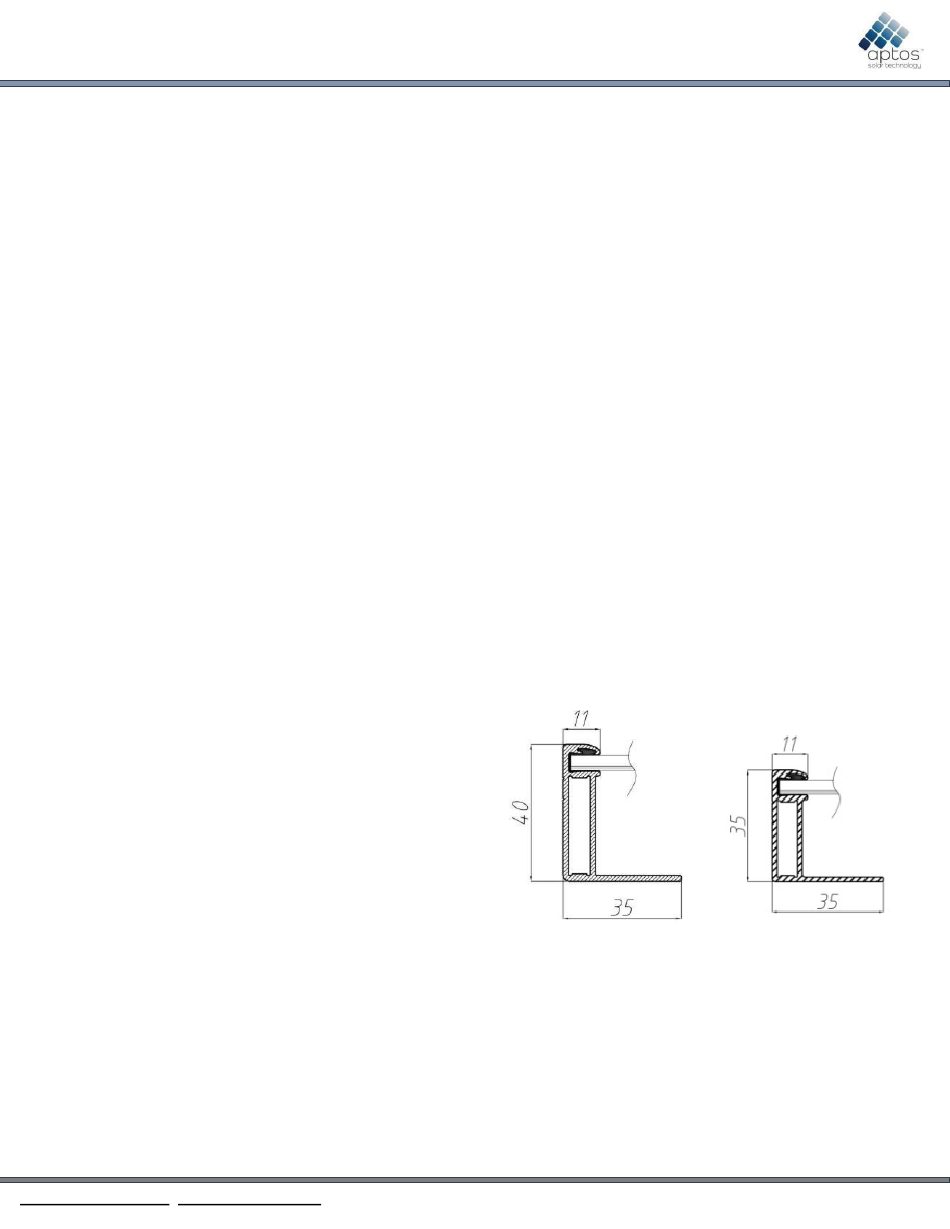

Frame cross-section

Module Wiring

AST DNA panels are pre-wired and terminated withMC4-
compatible connectors.
Connections to other panels should use compatible
connectors that comply with Code requirements
ASTrecommends that all wiring be double insulated with a
minimum rating of 90 C, and wiring should use flexible
copper conductors where minimum size should be
determined by theapplicable Codes.
Page1
All Rights Reserved. DNA-120/144 Installation Manual Rev 0.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DNA-120 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for aptos DNA-120 Series

  • Page 1 HighEfficiencyHalf-CellModule Introduction Installing the Panel This manual contains information about electrical and Aptos Solar Technology panels may be installed invarious mechanical installation of the solar panels: DNA-120 applications. The particular mounting is to be defined by and DNA-144 Series the system designer. Installer must handle and mount the...
  • Page 2 Installation Manual HighEfficiencyHalf-CellModule The cables and connectors are UV and weather resistant Specifications from -40 C to +90 C, and rated for1500VDC The electrical characteristics are within ± 10 % of the indicated values of Isc, Imp, Vmp, and Voc and ± 3 %of Panels may be wired in series or parallel to obtain the indicated value Pmax under standard testing desired voltages and current, but must not exceed the...
  • Page 3 DNA390 – 415W Installation Manual HighEfficiencyBifacial Half-CellModule Mechanical Drawings Mounting Methods Installers must use pre-drilled mountingholes on the Mounting holes are 14mm by9mm. frame. M8 bolt andfasteners Torque value is 12.5 Nm – 18 Nm Frame clip must have minimum height dimensionas Rails can run perpendicular or parallel to panel length shown.
  • Page 4 DNA390 – 415W Installation Manual HighEfficiencyBifacial Half-CellModule Page4 www.aptossolar.com | info@aptossolar.com All Rights Reserved. DNA-120/144 Installation Manual Rev 0.0...
  • Page 5 Installation Manual HighEfficiencyBifacial Half-CellModule DNA-144 390 Vmax 48.17 ± 3% 48.26 ± 3% 48.35 ± 3% 48.45 ± 3% 48.56 ± 3% 48.64 ± 3% Imax 10.14 ± 3% 10.23 ± 3% 10.32 ± 3% 10.42 ± 3% 10.51 ± 3% 10.61 ±...
  • Page 6 DNA 320 – 345W Installation Manual High Efficiency Bifacial Half-Cell Module DNA-120 320 Vmax 40.21 ± 3% 40.30 ± 3% 40.39 ± 3% 40.46 ± 3% 40.60 ± 3% 40.70 ± 3% Imax 10.06 ± 3% 10.15 ± 3% 10.25 ± 3% 10.34 ±...
  • Page 7 Installation Manual High Efficiency Bifacial Half-Cell Module Jbox information Overcurrent protection type: none # of bypass diodes: 3 Diameter of cables: every modules have 2 cables whose diameter is 4mm for any one of them, and it can endure 90 C insulation and can be exposed under sun light.
