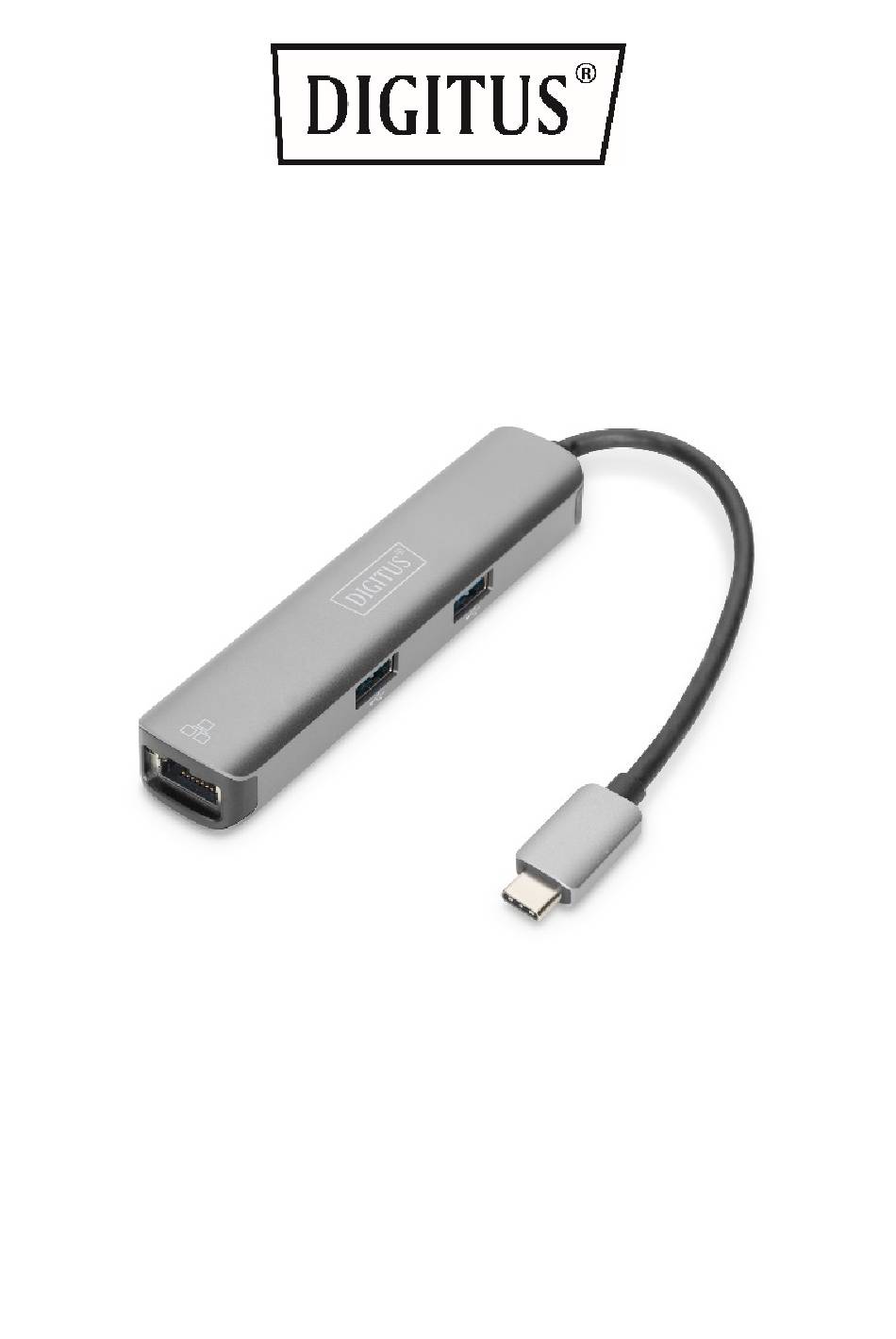

- Page 1 USB-C™ Dock, 5 Port Manual DA-70892...
- Page 2 CONTENTS 1.0 INTRODUCTION ................3 2.0 FEATURES ..................3 3.0 SPECIFICATIONS ................4 4.0 PACKAGE CONTENTS ..............4 5.0 CONNECTOR DESCRIPTION ............5 7.0 EXAMPLE OF APPLICATION ............6 DEAR CUSTOMER Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or using this product.
- Page 3 1.0 INTRODUCTION With the DIGITUS® USB-C™ Adapter, you have the option of connecting an additional HDMI® display to your existing device with a USB-C™ port. This allows you to reproduce your content on a large monitor, projector or TV in 4K resolution, for example – easy streaming with minimal effort.
- Page 4 3.0 SPECIFICATIONS Input: 1 x USB-C™ • • Connections: 3 x USB 3.0, 1 x HDMI®, 1 x Gigabit RJ45 (LAN) RJ45 Port: 10/100/1000 Mbps • Supports USB 3.0 SuperSpeed (5 Gbps max.) • • HDMI® version: 1.4b HDCP version: 1.4 •...
- Page 5 5.0 CONNECTOR DESCRIPTION 1) HDMI® Out Connect this port to an HDMI® display to reproduce your content on a large monitor 2) USB 3.0 Connect this port to additional peripheral equipment 3) RJ45 Connetion to your network 4) USB Type-C™ Connection to source device...
- Page 6 USB Stick Router HDMI® Source (Notebook) Hereby ASSMANN Electronic GmbH declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address.
