Summary of Contents for SecureSpot STATEMENT

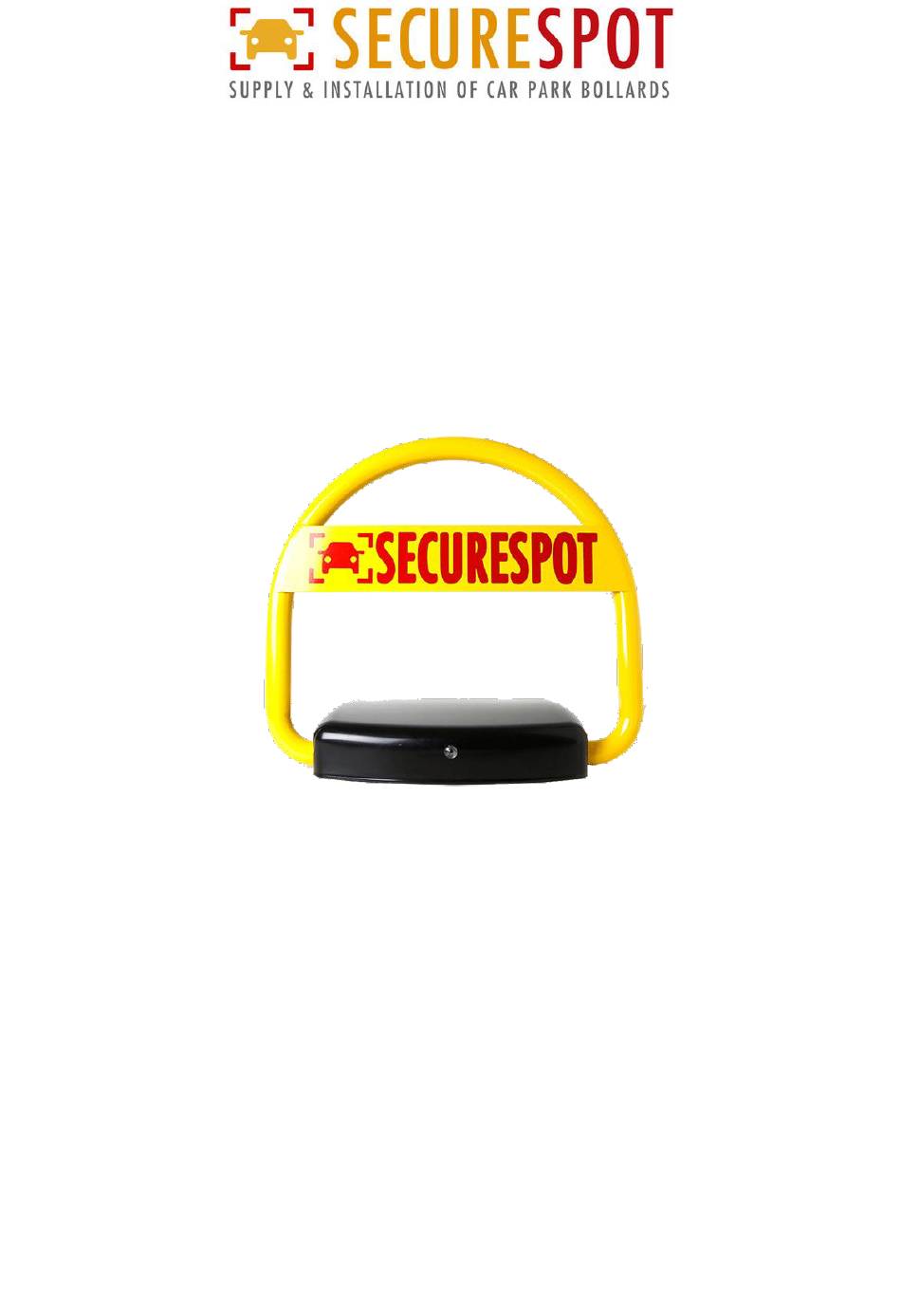

- Page 1 INSTALLATION & USER GUIDE THE “STATEMENT” BOLLARD Proud to be Australia’s only supplier for this model...
-
Page 2: Table Of Contents
TABLE OF CONTENTS GETTING TO KNOW YOUR BOLLARD DESCRIPTION WHAT’S IN THE BOX DIMENSIONS & SPECIFICATIONS FUNCTION & FEATURES INSTALLATION GUIDE OPERATION MAINTENANCE CHARGING THE BATTERY WARRANTY SUPPORT... -
Page 3: Getting To Know Your Bollard
GETTING TO KNOW YOUR BOLLARD ACCESSORIES INCLUDED: RECHARGEABLE BATTERY, WALL CHARGER, 3 X KEYS, 2 X REMOTE CONTROLS... - Page 4 1. Bollard Arm | 2. Protective Cover | 3. Reflective Cover | 4. Alarm | 5. Battery | 6. Circuit Board | 7. Drive Shaft | 8. Reset & Driving Units | 9. Arm Rotators...
-
Page 5: Description
DESCRIPTION Our “Statement” automatic remote-control bollard is one of the tallest fold-down bollards on the market. It stands at 530mm high, which is over half a metre tall! Its’ sleek rounded shape makes for a bollard that looks good and protects your car space with authority. -
Page 6: Dimensions & Specifications
DIMENSIONS & SPECIFICATIONS RATED VOLTAGE DC6V WORKING CURRENT 3.5A ENVIRONMENT TEMPERATURE -5 C - 55 C RAIN / FLOODING CAPACITY 15MM RUNNING TIME TO RAISE / LOWER REMOTE CONTROL RANGE <15M BOX WEIGHT 13.1KG BOX DIMENSIONS 63 X 63 X 14CM BOLLARD WEIGHT DIMENSIONS –... -
Page 7: Function & Features
FUNCTION & FEATURES PRESSURE RESISTANCE The Statement bollard can withstand 500kg rolling compact when lowered MANUAL OPERATION When the battery loses charge, or failure happens, you can gently and slowly raise or lower the yellow arm manually. WATERTIGHT SEAL The Statement bollard is guarded against rain water completely, and flooding up to 15mm. -
Page 8: Installation Guide
INSTALLATION GUIDE CONCRETE INSTALL YOU’LL NEED: • 8mm Drill Bit • 8mm Dynabolts x 3 (supplied) • Washers x 2 (supplied) STEP BY STEP GUIDE: 1. Carefully remove bollard from box and 2. place bollard in car space. The bollard should be central to the car space and the front of it should be 1-1.2m in. - Page 9 ASPHALT INSTALL YOU’LL NEED: • 10mm Drill Bit • 10mm Plugs x 3 • 8mm Screws x 3 • Washers x 3 STEP BY STEP GUIDE: 1. Carefully remove bollard from box and place bollard in car space. The bollard should be central to the car space and the front of it should be 1-1.2m in.
-
Page 10: Operation
OPERATION If you chose to have your bollard installed by a SecureSpot technician, your bollard will be setup for you, ready to use. Point your remote control in the direction of your bollard and press the left “lock” button to raise your bollard into the upright position, to secure your car spot. -
Page 11: Charging The Battery
CHARGING THE BATTERY To remove your bollard battery for charging, you can follow these simple steps: 1. Raise the bollard in the upright position. You can do this using your remote control, or if your battery is completely depleted, you can manually raise your bollard, ensuring you do so very gently and slowly. -
Page 12: Warranty
Warranty becomes void effective immediately if faults or damage is caused by using an incompatible battery, circuit board or remote control not supplied by SecureSpot, or if the battery has not been charged using a compatible wall charger as supplied by SecureSpot. -
Page 13: Support
SUPPORT VISIT OUR WEBSITE FOR ACCESSORIES, FAQs, TROUBLESHOOTING & MORE. WWW.SECURESPOT.COM.AU FOR FURTHER SUPPORT, PLEASE CONTACT US info@securespot.com.au / 1300 583 231 Thank you for choosing SecureSpot...
