Summary of Contents for Shur-Co AutoGate

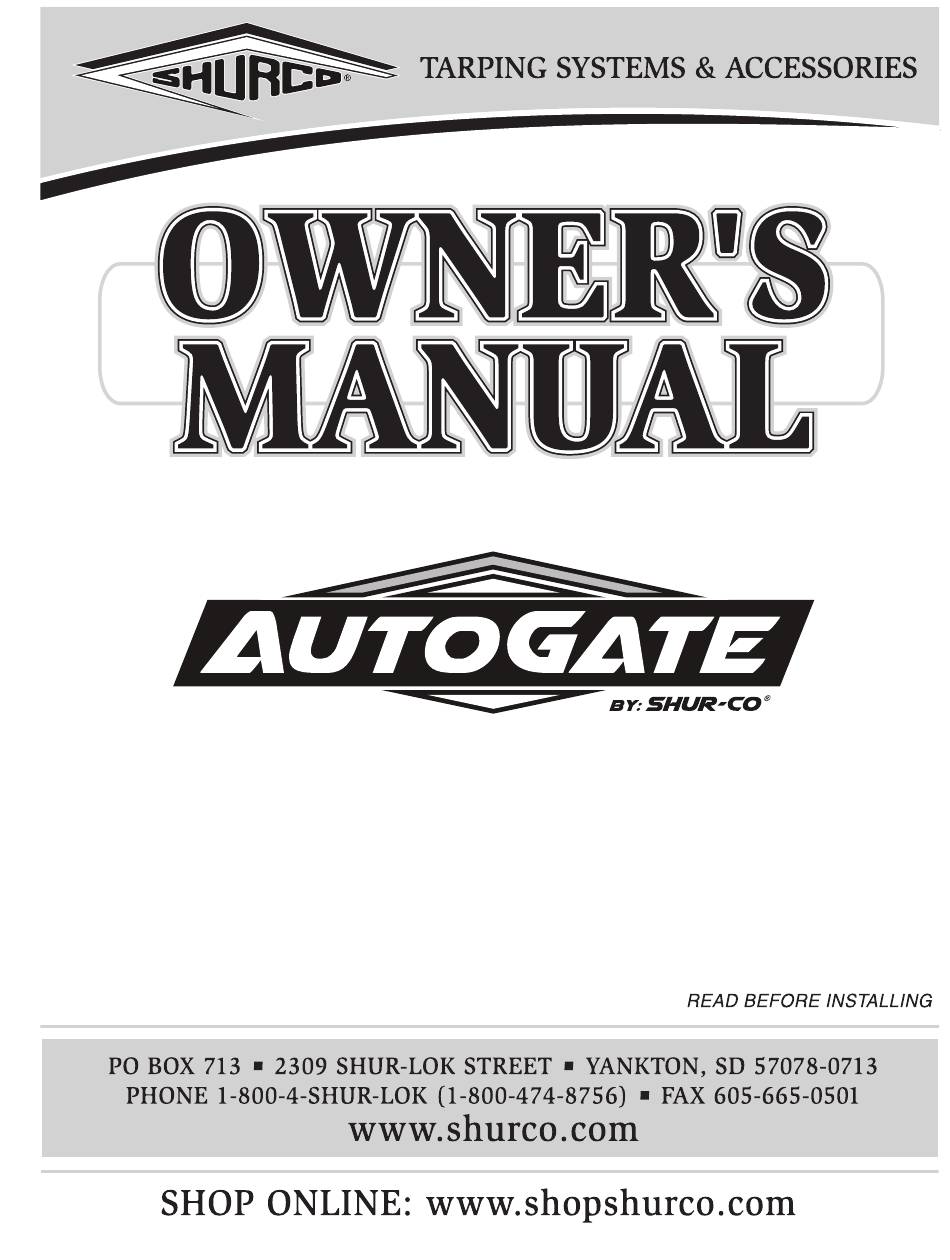

- Page 1 P/N 1128479 Rev. A AutoGate™ Electric Farm Swing Gate (Trickle-Charge Version)
- Page 2 Shur-Co , LLC products will void this product warranty. ® at 866-748-7435, and sent, with freight paid by us, to Shur-Co , LLC, 2309 ® *Certain products have specifi c warranties that differ from this warranty, for example motors and elec- Shur-Lok St., PO Box 713, Yankton, SD 57078.
-
Page 3: Table Of Contents
AutoGate™ P/N 1128479 Rev. A MESSAGE TO OWNERS TABLE OF CONTENTS Thank you for buying this product from Shur-Co . We appreciate your ® Mounting Hardware ................1 confidence in our products. Please read and thoroughly understand this manual before installing and/or operating this system. -
Page 4: Mounting Hardware
Mounting Hardware P/N 1128479 Rev. A 1704416 Hex Head Cap Screw - 5/16" x 1" 1700419 Nylon Lock Hex Nut - 5/16" 1706068 U-Bolt - 5/16" 1-1/2" x 1-1/8" x 2-3/8" 1706072 Hex Head Cap Screw M10 x 1-1/2" 1705361 Nylock Hex Nut - M10 1700407 Hex Nut - 3/8"... -
Page 5: System Components
System Components P/N 1128479 Rev. A Item Description Control Box Outer Slide Hinge Bracket Inner Slide Hinge Bracket Actuator Gate Bracket Stop Plate Mounting Bracket Stop Plate Trickle Charger Extension Cable Locate components in desired mounting locations. NOTE: System can be mounted on left- or right-side hinge. System is a "push-to-open"... -
Page 6: Stop Plate And Brackets Installation
Stop Plate and Brackets Installation P/N 1128479 Rev. A STOP PLATE GATE BRACKET STEP 1: If gate does not make contact with far post when STEP 5: Select appropriately sized U-bolts for gate closed, install stop brackets. crossbar. Install gate bracket and 5/16"... - Page 7 Stop Plate and Brackets Installation - continued P/N 1128479 Rev. A STEP 7: Place actuator between hinge bracket and gate STEP 9: Drill holes and install fasteners. For wooden posts, use bracket . Use screw and pin to temporarily either carriage bolts or lag screws. For metal posts, hold actuator.
-
Page 8: Control Box Installation
Control Box Installation P/N 1128479 Rev. A STEP 1: Mount control box above hinge bracket. Drill holes STEP 4: Remove electrical tape from positive battery terminal. and install fasteners. For wooden posts, 3/8" lag Connect red wire to positive battery terminal inside screws can be used. -
Page 9: Actuator Installation
Actuator Installation P/N 1128479 Rev. A STEP 1: Connect actuator cable to control box STEP 4: Tighten U-bolt nuts to secure gate bracket. If U-bolts cannot be used, drill 5/16" holes into gate and fasten gate bracket using 3/8" self-tapping screws bolt NOTE: U-bolts may not have enough holding power on some thin-walled tubes. -
Page 10: Trickle Charger Installation
Trickle Charger Installation P/N 1128479 Rev. A STEP 1: Plug extension cable into trickle charger . Make STEP 3: Remove extra pair of bullet connections from cable sure red wire with female bullet connector is con- exiting bottom of control box nected to male pin on trickle charge connector. -
Page 11: Final Adjustments
Final Adjustments P/N 1128479 Rev. A HINGE BRACKET FRONT PANNEL STEP 1: Finalize hinge bracket adjustment. Use buttons on STEP 6: Replace front panel and secure with #10 cap screws control box to open gate. Watch actuator to make sure removed earlier. -
Page 12: Replacement Parts
Replacement Parts P/N 1128479 Rev. A Item Part # Description Item Part # Description 1128511 Trickle Charger 19. 1706073 Carriage Bolt - 3/8" x 7" - For Metal Posts 1700400 Self-Tapping Screw - 3/8" x 1" - For Metal Posts 20. - Page 13 Notes P/N 1128479 Rev. A...
- Page 14 Notes P/N 1128479 Rev. A...
- Page 15 Notes P/N 1128479 Rev. A...
