Key features

1. Connects NGFF B+M Key motherboard to mSATA SSD
2. Compliant with PCI Express M.2 specification 1.0.
3. Compliant with SATA III specification.
4. Supports data transfer up to 6.0Gb/s.
5. Supports 27mm half-height & 50mm full-height mSATA SSD
6. Supports socket 2 (B Key) & socket 3 (M Key).
7. One mSATA Mini PCI-E socket and one NGFF M.2 B+M Key male connector available.
8. 3 screw holes 2242/2260/2280 available to fix PCB board
9. 4 screw holes available to fix mSATA SSD.
10. Easy installation & no driver required.
11. Support boot function.
12. Supports any OS, like Windows, WinCE & Linux etc.
*
Please note that it supports mSATA Mini PCI-E SATA SSD only. It does NOT support Mini PCI-E (PATA),
1.8" Micro SATA & Airbook SSD. *

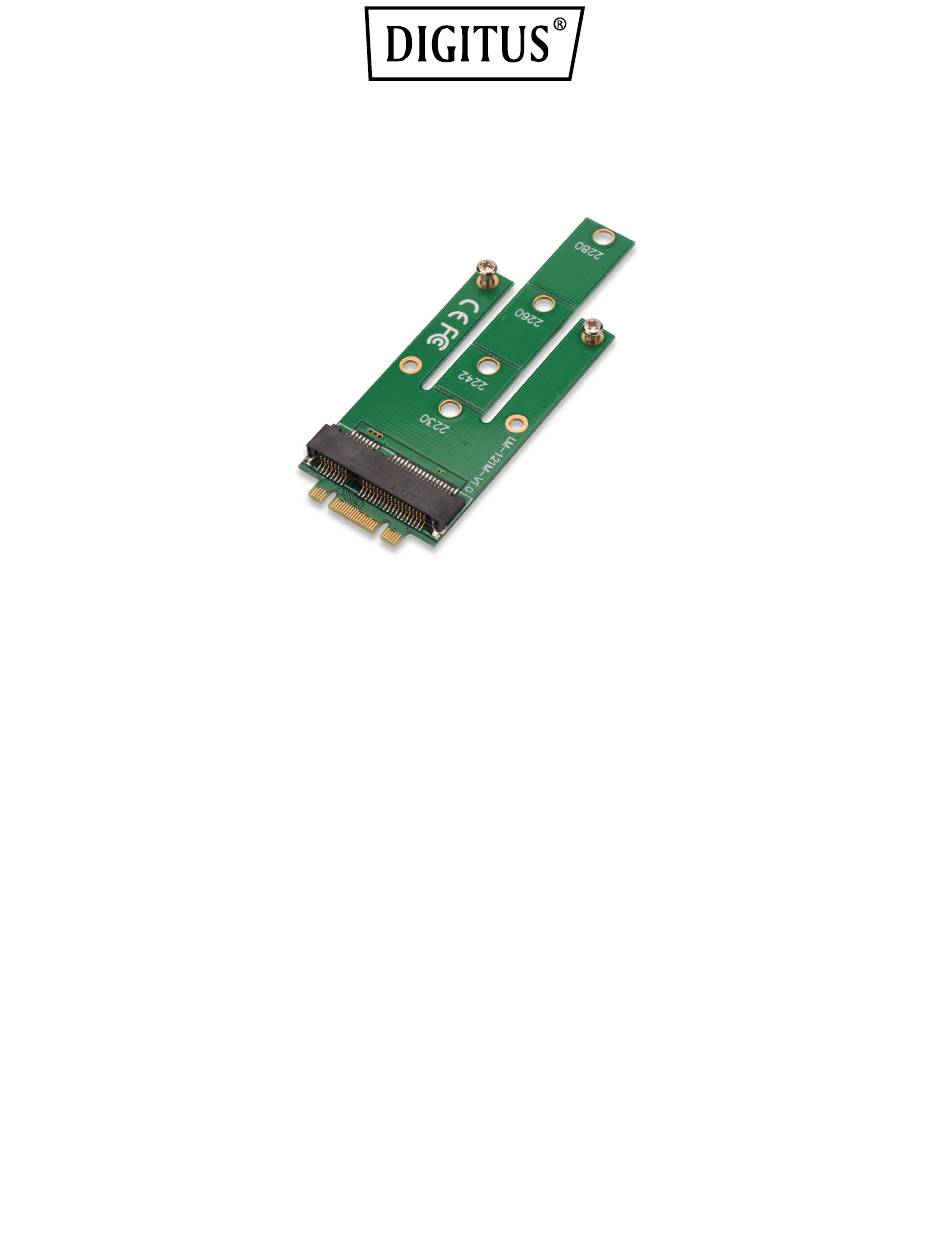

NGFF (M.2) to MSATA PCIe Card
Manual DS-33154
