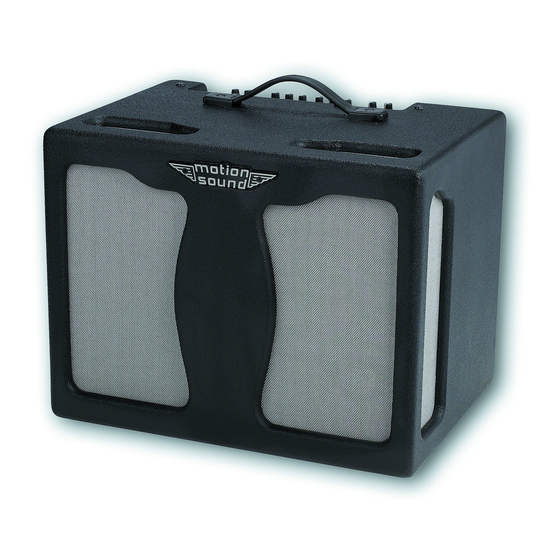

Motion Sound AR-112 Manual
  1. Manuals
  2. Brands
  3. Motion Sound Manuals
  4. Musical Instrument Amplifier
  5. AR-112
  6. Manual

Motion Sound AR-112 Manual

Hide thumbs
1
2
3
4
5
Table of Contents

Advertisement

Quick Links

Download this manual
The AR-112 can produce high sound pressure levels. Hearing protection is advised.
The AR-112 MUST be earthed and connected to a correct power source.
Tube: 12AX7EH (selected) /7025/5751
Power Amplifier: 100-watt RMS
Speaker: 12" 150-watt Eminence Legend 121, 8 ohms
Dimensions: 19.5" W, 21.5" H, 17" D
Power
Voltage
US
117 VAC
Europe
230 VAC
Japan
100 VAC
Fuse Location: The fuse is located in the power inlet module. Use only recommended fuse
rating!
AR-112
SIDEWINDER

-WARNING-

-SPECIFICATIONS-

Weight 42 lbs.
Frequency
50/60 Hz
50/60 Hz
50/60 Hz
Watts
Fuse (slo blow)
200
2.5 amp
200
1 amp
200
2.5 amp
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AR-112 and is the answer not in the manual?

Questions and answers

Summary of Contents for Motion Sound AR-112

  • Page 1 AR-112 SIDEWINDER -WARNING- The AR-112 can produce high sound pressure levels. Hearing protection is advised. The AR-112 MUST be earthed and connected to a correct power source. -SPECIFICATIONS- Tube: 12AX7EH (selected) /7025/5751 Power Amplifier: 100-watt RMS Speaker: 12” 150-watt Eminence Legend 121, 8 ohms Dimensions: 19.5”...
  • Page 2 12” speaker. When the rotor is turning, sound is partially deflected through the top, sides, and front of the cabinet and spreads round the room/stage. Ceilings, floors and walls can make each room sound a little different as they reflect the lush 3D sound from the AR-112 around you and your audience.
  • Page 3 12AX7 too much. You may set the control flat or to remove highs or lows. Volume: Sets the overall loudness of the AR-112 by controlling the volume of the 100 watt solid state power amplifier. A “line voltage tracking” compressor helps prevent solid state overdrive.
  • Page 4 The fuse is located inside the AC power inlet connector (remove cord for access). -TUBES- The AR-112 is supplied with a 12AX7EH tube. These tubes are selected by Motion Sound and must meet strict gain and noise specifications. If you change the tube, performance can degrade if the tube does not meet these specifications.
