Summary of Contents for SP ORKA HR

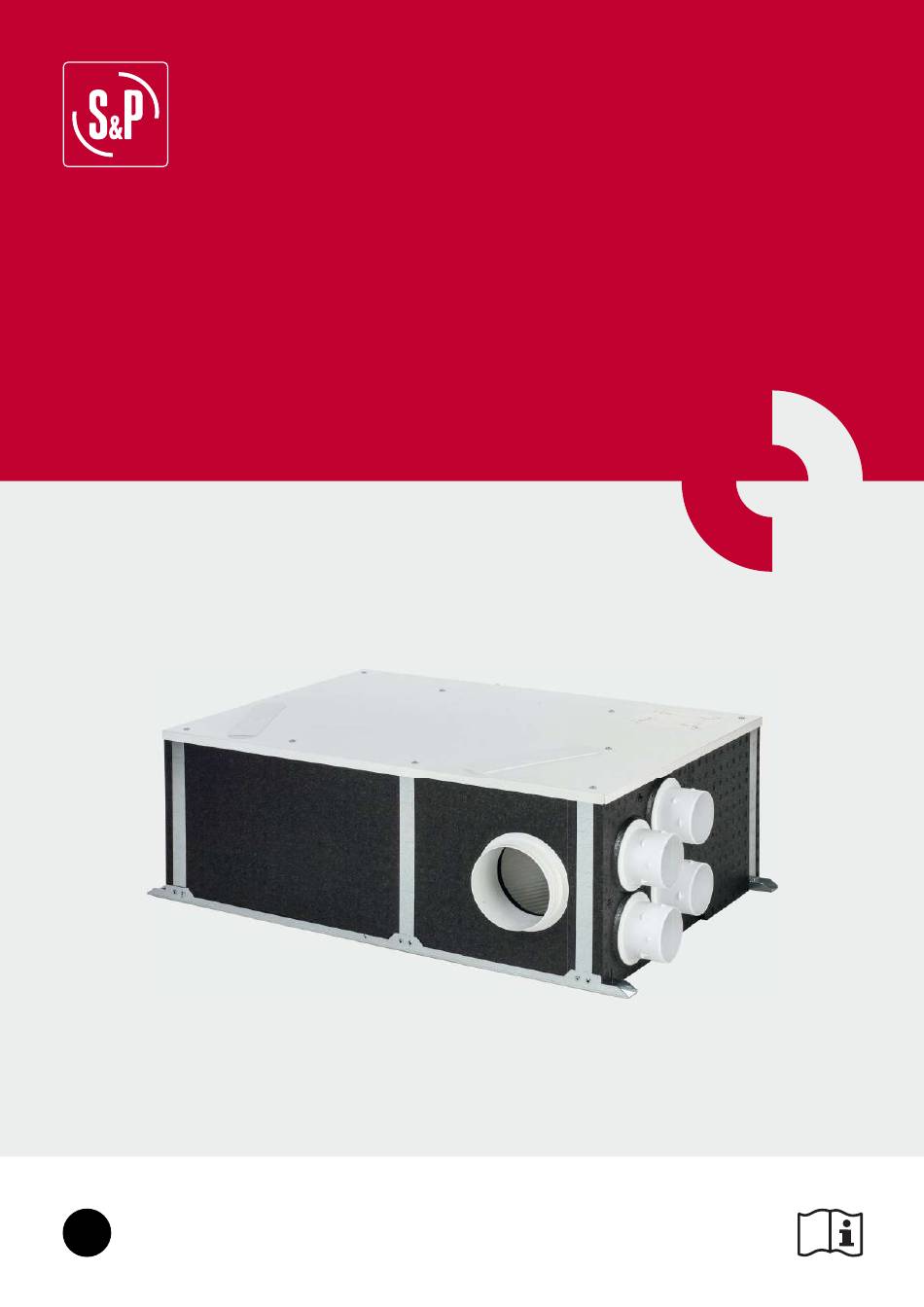

  • Page 1 ORKA HR...
  • Page 3 This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruc- tion concerning use of the appliance in a safe way and understand the ha- zards involved.

  • Page 4: Table Of Contents

    7. Maintenance 8. Putting out of service and recycling 9. ECODESIGN Technical sheet The following items are included: 1. 1 x ORKA HR 2. 1 x remote control 3. 1 x condensate drain tube + support 4. 3 x positioning accessories 5.

  • Page 5: General Information

    1. GENERAL INFORMATION 1.1. INTRODUCTION This manual is intended for the use of the central balanced-fl ow high effi ciency ORKA HR and its peripherals (duc- twork, vents, controllers). It is designed to provide clear and safe guidance for the design, installation and use of the product.
  • Page 6 ORKA HR has a 100% bypass that allows fresh air from outside to be introduced directly, without receiving the heat energy from the extraction air, generating free cooling. It is a manual activation.
  • Page 7 Discharge of extract air: Connected to the discharge duct to the outside This duct must be well sealed and thermally insulated to avoid condensation both on the inside and outside. By-pass: The 100% by-pass system of the ORKA allows the introduction of cooler fresh air (during the evenings and in the night) avoiding the heat exchanger and thus without it being tempered by the outgoing warm air which has accumulated in the house during the day.

  • Page 8: Installation

    3. INSTALLATION The equipment must be installed in a heated room in the home (>10ºC) if this is not possible, the condensate outlet must be thermally isolated In areas that regularly have negative temperatures (<-2ºC) a pre-heating battery must be installed. Operating temperature (<-2ºC, 45ºC) Ducts must be thermally insulated and correctly installed Uninsulated Insulated...
  • Page 9 3.A. MOUNTING IN A FALSE CEILING To ensure correct installation, it is necessary to place the supplied positioning accessories as indicated: Extraction: without accessories The condensate outlet that is not used must be plugged with the supplied plug. The condensate tube must maintain the slope throughout its length.
  • Page 10 3.B. MOUNTING IN A FLOOR To ensure correct installation, it is necessary to place the supplied positioning accessories as indicated: discharge side: without accessory The condensate outlet that is not used must be plugged with the supplied plug. The condensate tube must maintain the slope throughout its length.
  • Page 11 SAMPLE “MIXED DISTRIBUTION” ASSEMBLY The use of fl exible duct must be reduced to short sections and must be correctly stretched. Kitchen It is recommended not to put th RDR fl ow regulator on a branch, both in extraction (kitchen) and in supply (living room) to take advantage of the peak fl...
  • Page 12 SAMPLE “PLENUM DISTRIBUTION” ASSEMBLY Kitchen The use of fl exible duct must be reduced to short sections and must be correctly stretched. BDO or BOAP 125 It is recommended not to put th RDR fl ow regulator on a branch, both in extraction (kitchen) and in supply (living room) to take advantage of the peak fl...
  • Page 13 SAMPLE “DISTRIBUTION” ASSEMBLY The use of fl exible duct must be reduced to short sections and must be correctly stretched. Toilets It is recommended not to put th RDR fl ow regulator on a branch, both in extraction (kitchen) and in supply (living room) to take advantage of the peak fl...

  • Page 14: Characteristics And Electrical Connections

    4. CHARACTERISTICS AND ELECTRICAL CONNECTION Power: Single phase 230V-50Hz Max.Power: 145 W Max. current: 0,7 A Maximum ambient temperature: 50ºC Electrical protection: 2 A (curve C) Maximum fl ow temperature: 45ºC Confi guration A: Confi guration B:...

  • Page 15: Control Of Orka

    5. CONTROL OF ORKA 5.1. INSTALLATION 5.1a. Airfl ow selection The equipment has 2 confi gurations (A and B) for low speed depending on the connection (see chapter 4). The peak airfl ow (high speed) function is common to both confi gurations. Peak 5.1b.

  • Page 16: Commissioning The Orka

    5.2. DURING USE The remote control allows the user to: • Activate the peak airfl ow • Activate the by-pass 100% Low airfl ow By-pass OFF By-pass ON Peak airfl ow Low airfl ow: Activates the low airfl ow corresponding to curve A or B depending on the confi guration chosen in the electrical connection.

  • Page 17: Maintenance

    7. MAINTENANCE In order to take advantage of the equipment’s services throughout its useful life, it is essential to carry out mainte- nance tasks correctly. • Every 12 months: change the fi lters. The supply fi lter M5 can be replaced by a G4 fi lter if required (sold as an accessory). Alarm Reset of the fi...

  • Page 18: Ecodesign Technical Sheet

    9. ECODESIGN TECHNICAL SHEET Ecodesign Commission regulation (EU) N°1253/2014 of July 2014 Information requirements (Annex V) ORKA HR Trade mark S&P Identifi er 5153833000 SEC average climate (kWh/(m .an)) -26,2 SEC class SEC cold climate (kWh/(m .an)) -62,8 SEC warm climate (kWh/(m .an))
  • Page 20 S&P SISTEMAS DE VENTILACIÓN, S.L.U. C. Llevant, 4 Polígono Industrial Llevant 08150 Parets del Vallès Barcelona - España Tel. +34 93 571 93 00 Fax +34 93 571 93 01 www.solerpalau.com Ref. 9023090600...
