● Primary use in the
transport technology
controls of roller
transport lines.
● Capacitive sensor sys-
tem with differential
signal comparison.
● Detection of metallic
and other conductor
objects.
● Minimal function in-
fluence from the pres-
ence of impurities,
metal dust or abra-
sives.
● Optional memory
function: Power on
with the last valid
operational parame-
ters without adjust-
ments. Unmoved ob-
jects on previous
power down keep on
recognized.
Connections
Stecker
Pin Anschluss
X1
1
24V
2
3
X2
1
2
3
X3
1
Core
2
Shield
UNICONTROL Electronic GmbH
Freinsheimer Straße 3
D-68219 Mannheim
www.unicontrol-gmbh.de
Resumed Manual
Supply Voltage
AC/DC
PE
Electric reference po-
tential for the evalua-
tion unit.
C
Relay common contact
NO
Relay normally open contact
NC
Relay normally closed contact

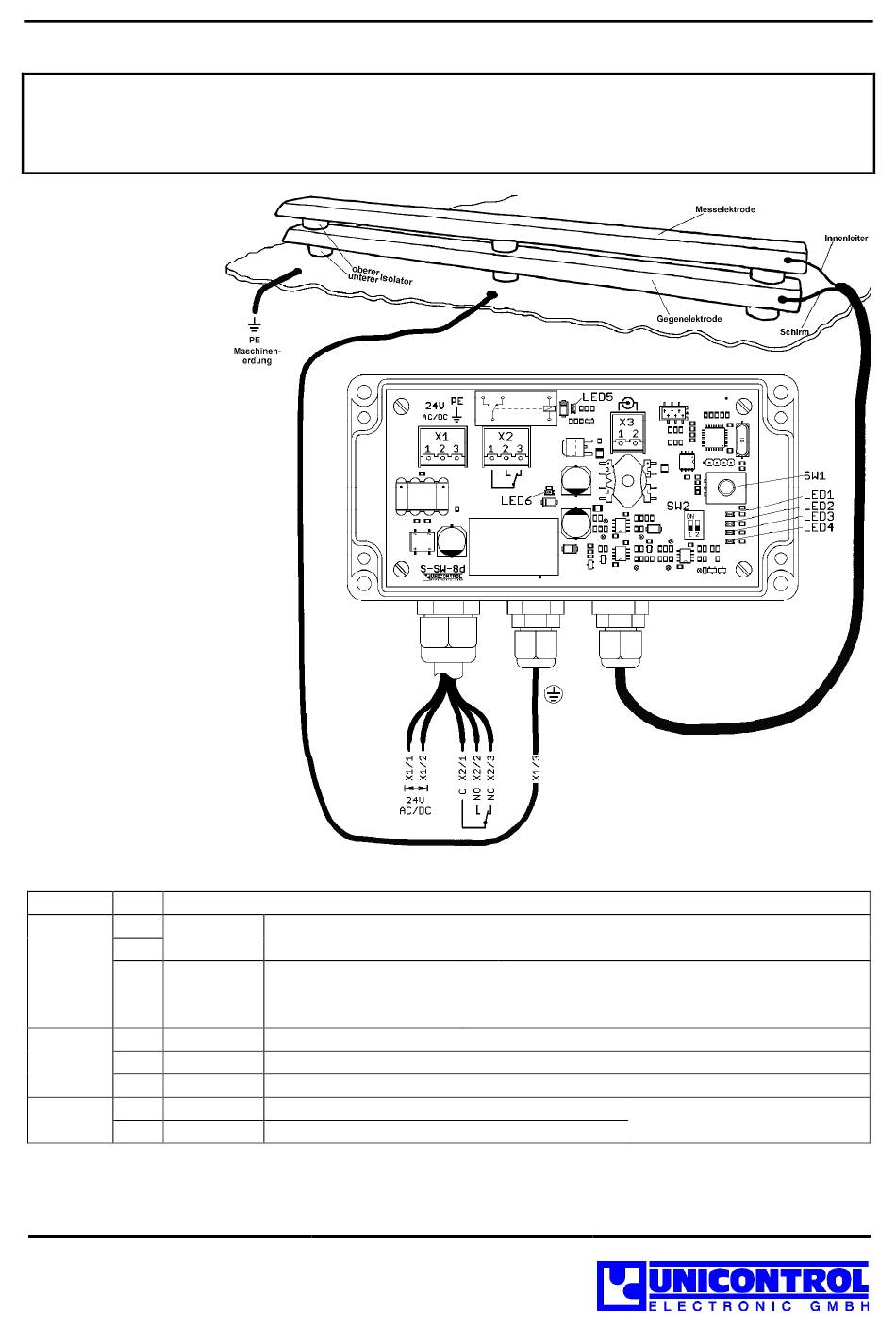

Connecting in the measuring electrode (up).
Connecting in the opposite electrode (down).
Tel.: 0621 87982 0
Fax: 0621 87982 35
S-SW-8, Resumed Manual
S-SW-8
Switchable polarity.
Connect to the sensor's mounting plate!
!
The mounting plate must be connected to
(safety) earth potential.
1
/2
Use of coaxial cable.
11-17-2020
