Summary of Contents for Auvi PCIP05
- Page 1 ® ® PCIP05 USB Phone Instruction Manual www.auvivoip.com www.auvivoip.com...
-
Page 2: Table Of Contents
Section 3: Hardware Connection Connect the PCIP05 Section 4: Software Installation Install Skype™ Create a Skype™ username Add a Skype™ contact Install the PCIP05 driver Test the PCIP05 Section 5: Operations Make a Skype™ call Receive a Skype™ call End a call Mute the PCIP05 Make a SkypeOut™... -
Page 3: Section 1: Notices
Notices Regulatory Compliance Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 4: Trademarks
Trademarks © 2006 Auvi Electronics N.A., LLC. All rights reserved. Auvi Electronics N.A. “Auvi” shall not be liable for any errors contained herein, or for any damages arising out of, or related to, this document or the information contained herein, even if Auvi has been advised of the possibility of such damages. -
Page 5: Overview

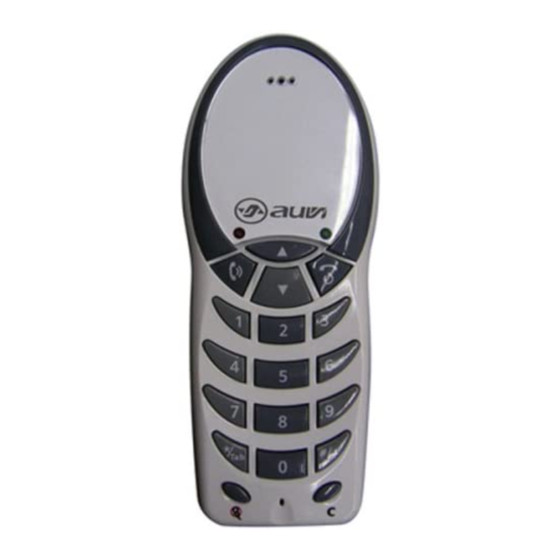

Section 1 Overview The PCIP05 is a high-quality USB hand phone with 4-polyphonic ring tones. Its fashionable appearance, easy-to-use design, and euphoni- ous melody will set any user apart from others. Just plug it into the PC or laptop, and enjoy the full features of Skype™. -
Page 6: Section 2: Introduction Pcip05 Diagram
Introduction PCIP05 diagram Red LED Red LED Indicator Headphone Jack Earphone Jack Answer/Dial Button Answer/Dial Button */Tab Button */Tab Button Mute Button Mute Button Microphone Microphone Menu Scroll Down Button Menu Scroll Down Button Fully-Functional Key Pad Section 2 Earphone... -
Page 7: Package Contents
Package contents PCIP05 System requirements Microsoft Windows® 2000/XP Pentium 400MHz or above processor 128MB RAM 16MB RAM available hard disk space One USB port available Section 2 Software CD Mini USB cable Earbud Quickstart guide... -
Page 8: Section 3: Hardware Connection
Hardware Connection Connect the PCIP05 to the PC This section explains how to correctly connect the PCIP05 to any PC. Follow the steps provided below to correctly connect your new PCIP05 to your computer. Section 3 Plug the mini-USB cable... -
Page 9: Section 4: Software Installation Install Skype
If you don’t have the latest version, please follow the steps below. Note: You must have Skype™ Version 1.3.0.55 or later to use the PCIP05. 1) Access the web and go to http://www.skype.com. 3) Once downloaded, double-click the icon to start the installation. -
Page 10: Create A Skype™ Username
Install Skype™ (Continued) 7) In the next window, set up additional tasks, if needed, then click NEXT. Create a Skype™ username 1) In the New Users Create a Skype Account tab, enter the required information. Click NEXT. Section 4 8) Click FINISH in the last window to complete the installation. -
Page 11: Add A Skype™ Contact
Add a Skype™ contact 1) Once logged-in to your account, go to the main Skype™ account window. 3) Enter the name of another Skype™ user in the appropriate text box, then click NEXT. Section 4 2) From the menu at the top of the window, select Tools, and then Add a Contact. -
Page 12: Install The Pcip05 Driver
Installing the PCIP05 Driver Install the PCIP05 USB phone driver by either: 1) Inserting the CD supplied with the PCIP05 USB phone or; 2) Go to the download section of www.auviusa.com and download the latest driver for your PCIP05. -
Page 13: Test The Pcip05
Test the PCIP05 1) To test your PCIP05, click Add Contact and enter Echo123. 3) Input “Call me” in the text area in the chat window and press ENTER on your keyboard. Call me Section 4 2) After selecting “Echo 123” from your Skype™... -
Page 14: Section 5: Operations
Operations Basic functions of the PCIP05 How to make a Skype™ call - Use the Scroll up and Scroll down buttons contact you want to call and then press Receive a Skype™ call - Press the button to receive calls . -
Page 15: Section 6: Troubleshooting Troubleshooting
Troubleshooting For the latest information about troubleshooting and FAQ, please visit www.auviusa.com. Q1: Why did I see the icon What is wrong with the driver software? If you see the icon 1) Check to see whether Skype™ is running at the moment. - Page 16 2) Privacy > Related Task: Man age other program’s access to Skype™ . 4) Choose “Allow this program to use Skype”. Section 6 3) Choose “Change”.
- Page 17 Q2: After turning on the computer, I see this icon There are two possible causes if you see this icon 1) The PCIP05 failed to communicate with your PC. Check to see whether the USB port is in a normal state.
-
Page 18: Device Manager
Device Manager USB Audio Device USB Composite Device If there is a question mark or an exclamation mark next to any one of these devices, please follow the guidelines on the next page to make the necessary adjustments. Section 6... - Page 19 USB Composite Device Right click the device and choose “Uninstall”. Once the driver is uninstalled, unplug the PCIP05 from the USB port on the computer. Once unplugged, simply plug the PCIP05 back into the computer’s USB port. Windows® will automatically reinstall the device driver.
-
Page 20: Updating The Pcip05 Driver
The PCIP05 driver needs to be updated regularly. The driver can be updated by right clicking the Call button and then checking for updates. If there is a new driver for the PCIP05, the update will automatically download and install without any further actions. Or... -
Page 21: Safety Instructions
Incorrect reassembling can cause electric shock when the appliance is subsequently used. 8) Do not use the PCIP05 to report a gas leak, while in the vicinity of the leak. 9) Only put the handset of your PCIP05 next to your ear when it is in normal talk mode.
