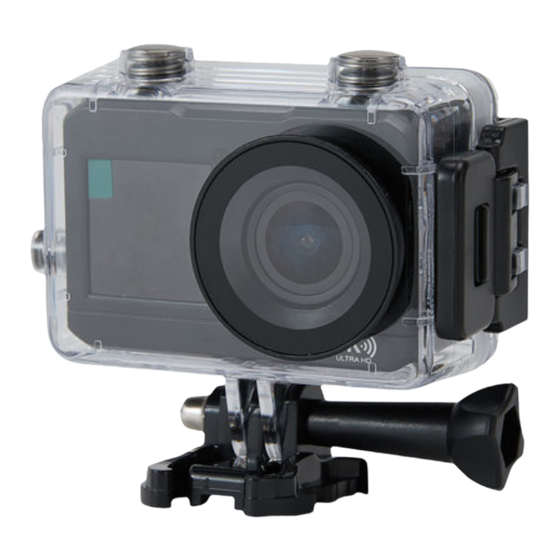

4K Digital Action Camera
Keycode:42990208
Instruction Manual
SAFETY INSTRUCTIONS
●Do not leave the camera in high temperature environments (over 35°C), especially in a parked car
with the windows closed in summer. High temperatures may shorten the life span of the electronic
device, damage the battery or melt plastic parts
●To reduce the risk of damaging components, do not expose this product to dusty, dirty, or sandy
areas
●Do not operate in or expose the HD Action Camera to the following condlitions: direct sunlight,air
conditioners, heaters or any other extreme temperatures. Avoid violent vibration.
●Never store next to a heat source or in dirty, humid or wet places
●Exposing the HD Action Camera to open flames can cause an explosion
●Do not expose the HD Action Camera to water or other fluids. Use in dry locations only
●Do not operate the product with wet hands. Doing so may cause an electric shock
●Keep the camera clean. To maintain, regularly wipe with a clean, dry, lint free cloth.
●Make sure that the product is installed correctly
●Press the buttons gently. Pressing too hard can damage the product
●Do not subject the HD Action Camera to harsh impacts. Do not drop the HD Action Camera
●Do not attempt to dismantle, modify or repair the unit yourself. Doing so may cause fire, electric
shock, or malfunction. Send the camera or any other accessories to a professional service centre for
maintenance if and when required
●Do not use a damaged or modified USB cable. Damaged or modified power cords may cause an
explosion, fire, or malfunction
●Never short-circuit the battery
●This product is intended for household use only and is not intended for commercial use.
●This camera works with Max voltage 5V, and electric current 1A for USB charging, and it will be
damaged if charging is done beyond this max voltage and current
●Keep out of reach of infants, children, or pets. There is a risk of them swallowing small
components, and/or their saliva may get into the product, causing an explosion or malfunction
●No responsibility will be taken for damages suffered by the user or third parties as a result of
inappropriate handling or use of the product, its accessories or by operational failure. We reserve
the right to make changes to this product and its accessories without prior notice
●The ilustrations included in this user manual are for reference only
●The supplier is NOT responsible for the loss of any data/content during operation
●Attention should be drawn to the environmental aspects of battery disposal
●Only use this HD Action Camera in moderate climates

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 42990208 and is the answer not in the manual?

Questions and answers

Summary of Contents for anko 42990208

  • Page 1 4K Digital Action Camera Keycode:42990208 Instruction Manual SAFETY INSTRUCTIONS ●Do not leave the camera in high temperature environments (over 35°C), especially in a parked car with the windows closed in summer. High temperatures may shorten the life span of the electronic device, damage the battery or melt plastic parts ●To reduce the risk of damaging components, do not expose this product to dusty, dirty, or sandy...
  • Page 2: Parts List

    ●DO NOT store batteries with hazardous or combustible material; store in a cool, dry, ventilated area away from excessive heat, direct sunlight or fire ●CAUTION: Danger of explosion if battery is incorrectly replaced. Replace ony with the same or equivalent type PARTS LIST Your HD Action Camera has the following accessories QUICK START GUIDE...
  • Page 3: Product Overview

    PRODUCT OVERVIEW Description of function of keys: > Power/Mode button Function 1: ON/OFF. long press 2-3 second to turn the camera ON or OFF. Function 2 - Mode selection. Short pressing the Mode/ Power button switches between 5 modes; video ,photo , slow motion , play back...
  • Page 4: Wifi Button

    WiFi button ●In video /photo /slow motion mode , short press button to swap front screen and back screen ,long press this button to active the WiFi function. ●In play back mode /setting mode , short press this button can see the files and choose setting menu.
  • Page 5: Setup And Operation

    SETUP & OPERATION Charging the batteries 1. Plug the Micro USB end of the supplied Micro USB cable into the Micro USB Port of the camera 2. Plug the Standard USB end into a USB wall charger. 3. The charging indicator red LED light will flashing. When the battery is fully charged the charging indicator light will stay on.
  • Page 6: Video Setup

    4. To exit a setting, press the power/mode button to go back 5.After setting done,press power/mode button to “X”,then press shutter to exit setting mode. There are 3 Video settings available. VIDEO SETUP FUNCTION Select the desired video resolution quality. [4K 30FPS]/ Video Resolution [2.7K 30FPS] / [1080P 60FPS] / [1080P 30FPS] / [720P 120FPS]/ [720P 60FPS]/ [720P 30FPS]...
  • Page 7 Slow motion Setting 1. Press power/mode button to setting mode,press shutter button to access video setting menu 2. To cycle through the settings, short press WiFi button. 3. To select a setting, short press the shutter button 4. To exit a setting, press the power/mode button to go back 5.After setting done,press power/mode button to “X”,then press shutter to exit setting mode.
  • Page 8 LightSource Frequency Switch between 50Hz and 60Hz refresh rate. LED indicator light Choose to open LED light[Choose],[Not choose] Auto Screen Saver Saves battery power by automatically turning off your LCD screen after a selected period of time. [10S][20S][30S][Off]] (Note - HD Action Camera will remain on, only the screen will turn off.) Auto Shutdown Saves battery power by automatically turning off your HD...
  • Page 9 1. In video/photo/slow motion mode to long press WiFi button to open WiFi. Camera will show window of the WiFi name and password, WiFi SSID is “ anko Action Cam ”, WiFi password is “12345678”. 2. Search the WiFi name on your smart phone, connect the WiFi name and enter password to connect the WiFi and camera.
  • Page 10: Using The Mounts

    TRANSFER / SAVE FOOTAGE TO OTHER DEVICES To transfer files to other devices (e.g. your computer), plug the Micro USB cable into the HD Action Camera and the standard USB end into a computer or laptop. When the HD Action Camera is connected correctly, there will be three options.
  • Page 11 Q: Unclear video footage A: Check if there is any dirt or fingerprints on the lens.Use a clean, dry, lint free cloth to clear the camera lens. Q: Black image when recording sky or water scene A: Scenes with a lot of contrast may influence the automatic exposure function of camera. Adjust the exposure settings to compensate.
