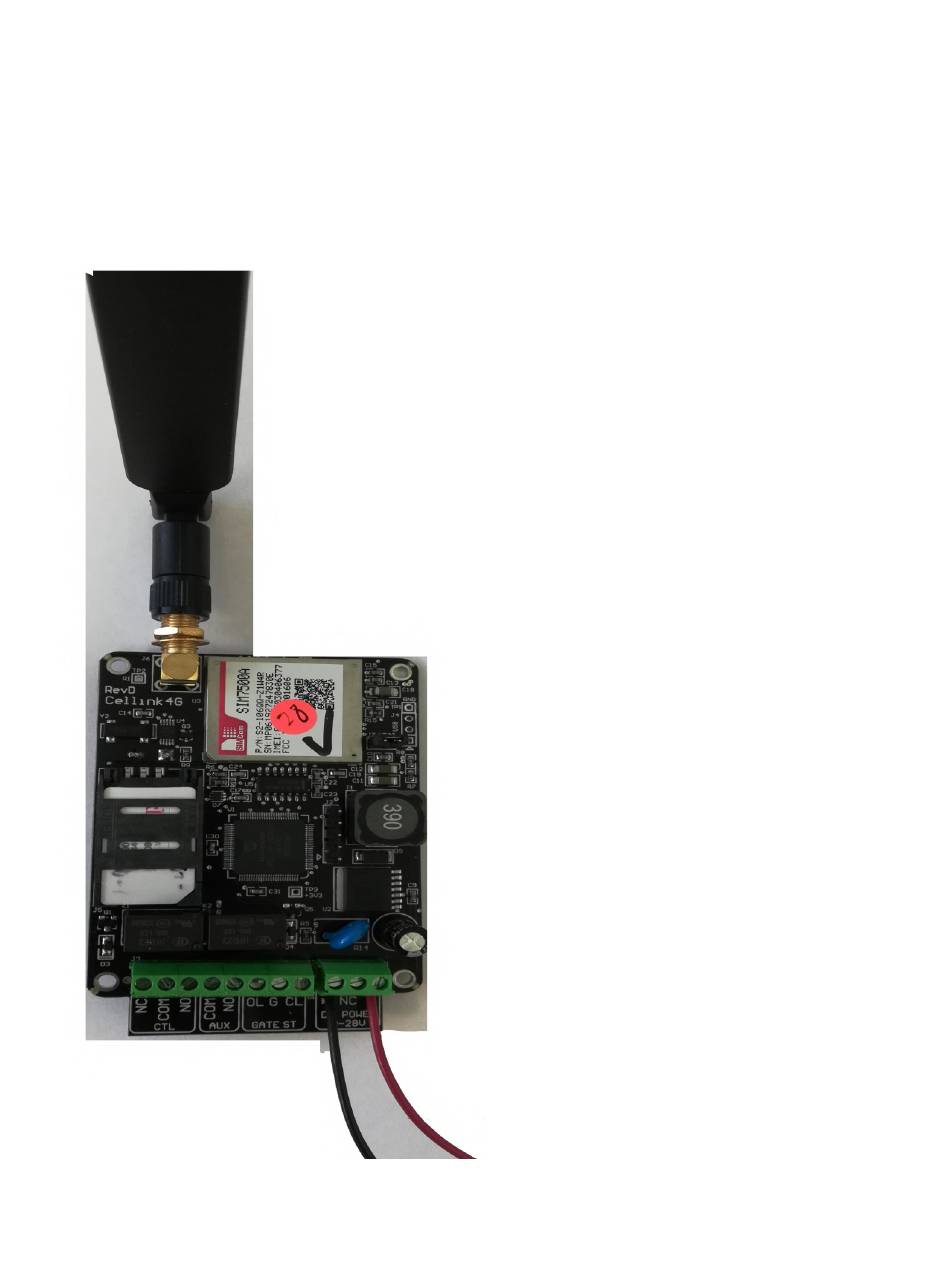

Cellink4G-Plus Quick Installation Instruction
1. Connect Antenna.
2. Connect T-Mobile/AT & T SIM card.
3. Connect Unit N.O to STRIKE on operator main board. Connect unit COM to GND on operator
main board.
4. Connect Power adapter output 15VDC, 2A to the unit power input.
Advertisement
Summary of Contents for Platinum Access Systems Cellink4G-Plus
- Page 1 Cellink4G-Plus Quick Installation Instruction 1. Connect Antenna. 2. Connect T-Mobile/AT & T SIM card. 3. Connect Unit N.O to STRIKE on operator main board. Connect unit COM to GND on operator main board. 4. Connect Power adapter output 15VDC, 2A to the unit power input.
- Page 2 5. Power up the power adapter. 6. The orange color light will blink in about 6 seconds.
- Page 3 7. The blue color light will blink in about 1 minute.
- Page 4 8. Search and download smartphone APP “Platinum Access” from Apple Store for iPhone, or from Amazon APP Store for Android phones. 9. Follow instruction and install the Platinum Access APP in your smartphone. 10. Once you have installed the APP successfully, you will see the ACCESS icon on the phone screen. 11.
- Page 5 18. Tap the SEND icon to send out the text command “set master pn xxxxxxxxxx” (The SIM Card#). 19. If Cellink4G-Plus unit is working, you will receive “Done, thank you!” text message in about 5-10 seconds. If you have received the “Done, thank you!” text message. You can go to the step 20.
- Page 6 21. Tap ‘Enable Cloud” icon. 22. Tap the SEND icon to send out the “en cloud xxxxxxxxxx” text command. 23. If Cellink4G-Plus unit working, you will receive “Done, thank you!” text message in about 5-10 seconds 24. Go to the APP Home page.
