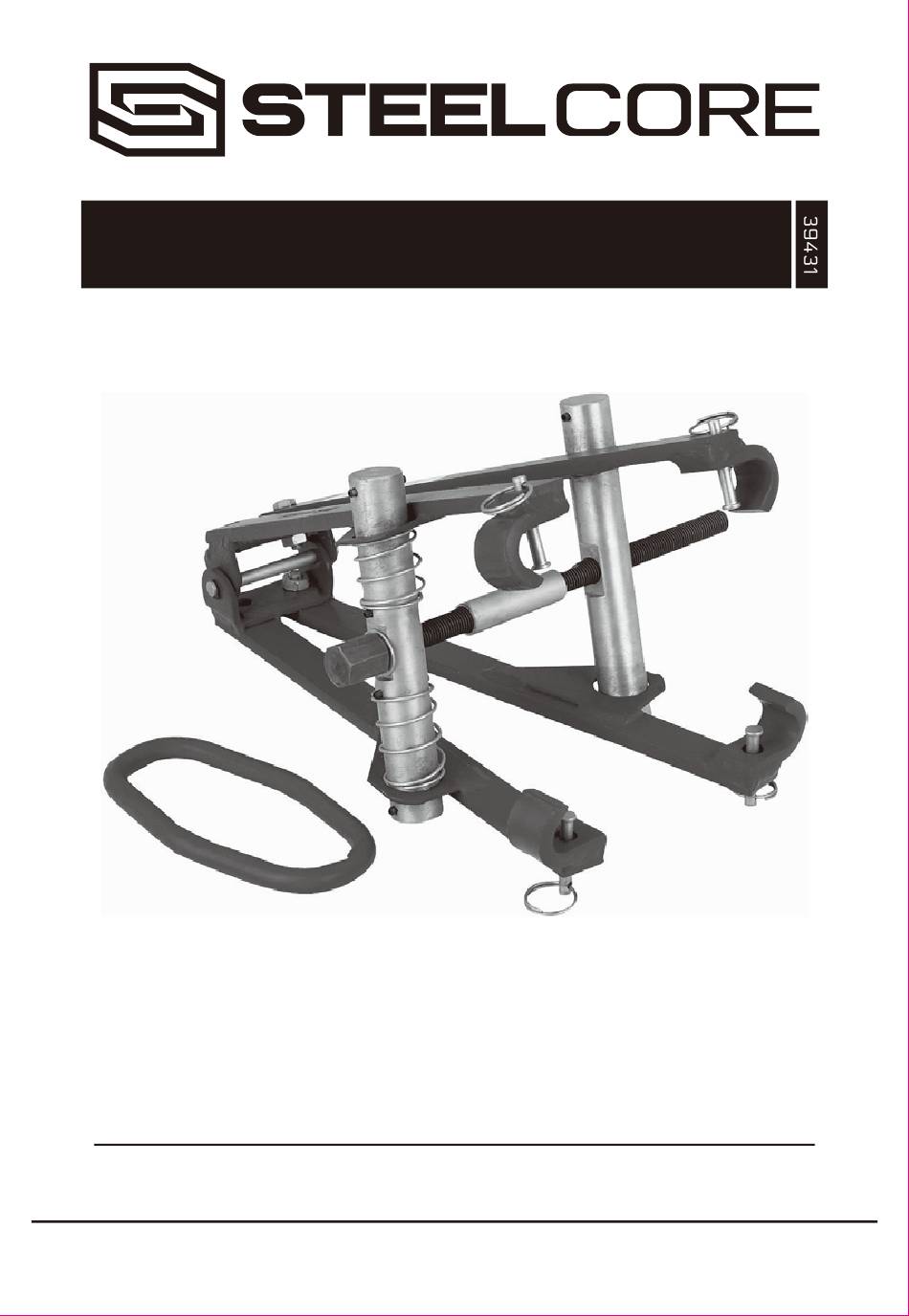

STRUT SPRING COMPRESSOR
*Actual product may vary slightly
Please carefully read and save these instructions before attempting to assemble, maintain, install, or operate this product.
Observe all safety information to protect yourself and others. Failure to observe the instructions may result in property
damage and/or personal injury. Please keep instructions for future reference.
For warranty purchases, please keep your dated proof of purchase. File or attach to the manual for safe keeping.
For Customer Service, Call 1-800-348-5004
39431
01/2017
or e-mail customerservice@focus-ontools.com
Advertisement
Table of Contents
Summary of Contents for Steel Core 39431
- Page 1 Observe all safety information to protect yourself and others. Failure to observe the instructions may result in property damage and/or personal injury. Please keep instructions for future reference. For warranty purchases, please keep your dated proof of purchase. File or attach to the manual for safe keeping. For Customer Service, Call 1-800-348-5004 39431 01/2017 or e-mail customerservice@focus-ontools.com...
- Page 2 SPECIFICATIONS Capacity 7″ Coil Spring Diameter Maximum Opening 8″ Lead Screw Torque 15 ft-lb minimum Compressor Type MacPherson Struts Only SAVE THIS MANUAL You will need the manual for the safety warnings and precautions, assembly instructions, operating and maintenance procedures, parts list and diagram. Keep your invoice with this manual.
- Page 3 5. Wear ANSI-approved safety goggles and heavy-duty work gloves during use. 6. Inspect before use; do not use if parts loose or damaged. 7. Observe work area conditions. Keep work area clean and well lit. 8. Use the right tool for the job. Do not attempt to force a small tool or attachment to do the work of a larger industrial tool.
- Page 4 ASSEMBLY Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this document including all text under subheadings therein before set up or use of this product. 1. Insert the Adjustment Bolt (6) with the Hex end up, through the hole in the center of the Plain Axle (13).
- Page 5 7. Position the top hooks over the strut springs and tighten the Adjustment Bolt (6) so that the lower hooks will fit over the spring. See Figure A. Low Hook Figure A: Lower Hook 8” Max. 8. Make sure the same number of coils are between the hooks on each of the spring.
- Page 6 MAINTENANCE Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this document including all text under subheadings therein before set up or use of this product. 1. Grease the Adjustment Bolt (6) threads regularly. 2. An annual Strut Spring Compressor inspection is recommended. Only qualified service technicians should inspect this tool.
- Page 7 PARTS LIST AND ASSEMBLY DIAGRAM Part Description Qty. Part Description Qty. Bolt Threaded Axle Hook Retaining Ring Spring Hinge Axle Plain Axle Hook Adjustment Bolt Holding Pin Hook Pin Ring Axle Pin Safety Ring Hook Compression Spacer customerservice@focus-ontools.com 1-800-348-5004...
- Page 8 Limited Manufacturer Warranty FOT makes every effort to ensure that this product meets high quality and durability standards. FOT warrants to the original retail consumer a 1-year limited warranty from the date the product was purchased at retail and each product is free from defects in materials.
