Summary of Contents for Rotem RPBS-1

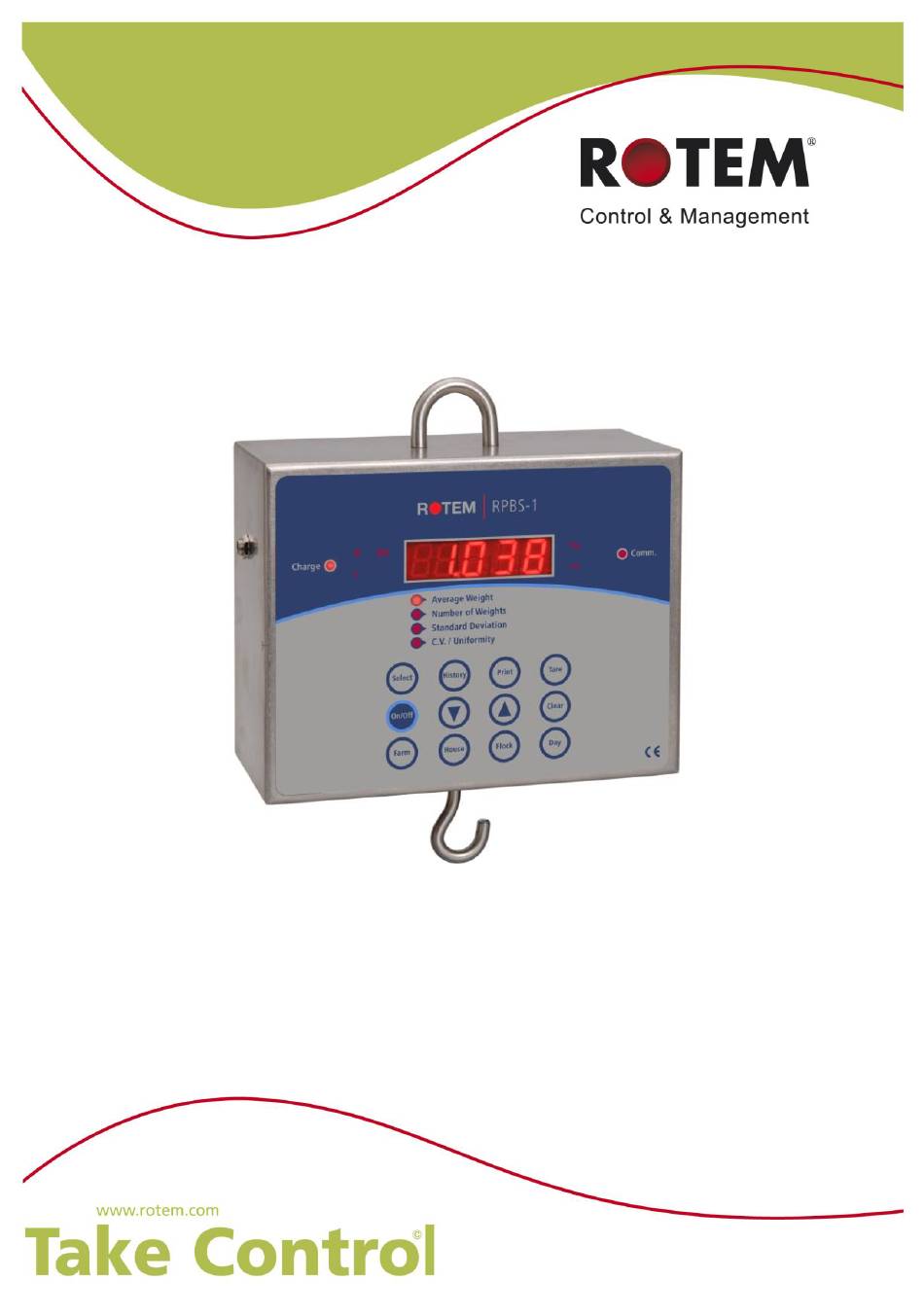

- Page 1 RPBS-1 Portable Scale User Guide...
- Page 2 In no event will ROTEM be liable to a user or any third party for any direct, indirect, special, consequential or incidental damages, including but not limited to any damage or injury to...
-
Page 3: Table Of Contents
A/D Count Test .......................13 Hidden Parameters ................14 Hidden Parameters Description ................14 Accessing Hidden Parameters ................15 Maintenance ..................16 Charging the RPBS-1 .....................16 Factory Default Settings ..................16 Replacement Part List ...................17 Concepts ....................18 Standard Deviation ....................18 Coefficient of Variation ..................19... -
Page 4: Getting Started
The RPBS-1 is a portable poultry scale system for weighing broilers and breeders. The RPBS-1 is easy to operate and user friendly. You can weigh birds individually, or by batch using the special curved metal hook. It is recommended to hang the RPBS-1 in a convenient place and height to perform the bird weighing process. -
Page 5: Physical Attributes
Physical Attributes The RPBS-1 interface is designed to be intuitive and easy to work with. The following are included in this section: Exterior Features Faceplate Detail Exterior Features The RPBS-1 scale exterior is detailed in Figure 1. Figure 1: RPBS-1 Scale Exterior Features... -
Page 6: Faceplate Detail
Faceplate Detail The RPBS-1 scale faceplate is detailed in Figure 2. Figure 2: RPBS-1 Scale Faceplate Detail RPBS-1 PORTABLE SCALE 2.0... -
Page 7: Quick Guide
4. Press the SELECT button several times to cycle through the hidden parameter options and exit the menu Initial Startup Upon initial startup of the RPBS-1 it is important to perform a tare procedure and clear the device’s memory. To initially startup the RPBS-1: 1. -
Page 8: Scale Calibration
12. To recalibrate the RPBS-1, see Scale Calibration on page 8. NOTE: The RPBS-1 queries you to perform the tare procedure after every power on, 300 weights or changing a flock/house/farm. To not perform the tare procedure, take the first weight measurement without pressing on the TARE button and the message stops. -
Page 9: Operating Principles
Print Farm, House, Flock, Day You can use the RPBS-1 on a daily basis to manage your flock and easily view a sample of your bird’s weight and receive an overall picture of the flock throughout the growth period. -
Page 10: History
4. To exit, press the HISTORY button and “-ESC-“ appears. Communication The RPBS-1 can be connected to a computer and be controlled via RPBS-1 communication program. The ROTEM RPBS-1 communication program is an easy to operate MS Windows based environment program and required for this connection. -
Page 11: Print
Print The RPBS-1 can connect and print reports directly from a special serial printer available from your dealer. You can select from the following for printed reports: Flock House Farm To print data reports: 1. Press the PRINT button. “PRINT no” is displayed. -
Page 12: General Features
Setting Up Bird Classification This feature enables you to manage flock weight and provides an overall flock view. The RPBS-1 can automatically classify bird weights in to four user-defined groups. To create deferent groups follow the next easy instructions: 1. Simultaneously press the UP directional arrow and HISTORY buttons. -
Page 13: A/D Count Test
A/D Count Test The RPBS-1 can display A/D counts on the main screen. To display A/D count: 1. Press the UP directional button and the CLEAR button simultaneously. 2. Place a weight in the weight pan and notice if the A/D count changes. If the A/D count does not change, restart the system and repeat Step 1 and Step 2. -
Page 14: Hidden Parameters
Default value is 6500. C. Number of individuals per weighing (1-10). To weigh more than one bird at a time, change this value and the RPBS-1 calculates the individual weight of each bird. Default value is 1. -
Page 15: Accessing Hidden Parameters
Accessing Hidden Parameters NOTE: To display the hidden parameters, the RPBS-1 must be on average weight display. To enter the hidden parameters menu: 1. Press the UP and DOWN directional arrow buttons simultaneously until a blinking “-A->0” message is displayed. This indicates parameter A, weight unit. -
Page 16: Maintenance
Factory Default Settings Perform a Cold Start to reset the RPBS-1 to the factory default settings. Perform a Scale Calibration after a Cold Start. Refer to Page 8. To perform a Cold Start: (or after changing EPROM): 1. -
Page 17: Replacement Part List
Replacement Part List RPBS-1 replacement parts are listed in Table 1. Table 1: RPBS-1 Replacement Parts Part Number Description C-RPBS1 RPBS-1 card C-RPBS1-BC-V1 RPBS-1 battery charger 115V C-RPBS1-BC-V2 RPBS-1 battery charger 230V C-RPBS1-CASE RPBS-1 case C-RPBS1-CC RPBS-1 car charger cable... -
Page 18: Concepts
Bird weight. Y-Axis The number of weights for each value on the X-Axis. Standard Deviation states: Where n – Number of weights General rule: The smaller number the value in standard deviation indicates a more uniform flock. RPBS-1 PORTABLE SCALE 2.0... -
Page 19: Coefficient Of Variation
CV does. The formula for Uniformity is calculated by the following formula: number of birds within ±10% of average Uniformity= X 100 number of weights RPBS-1 PORTABLE SCALE 2.0...
