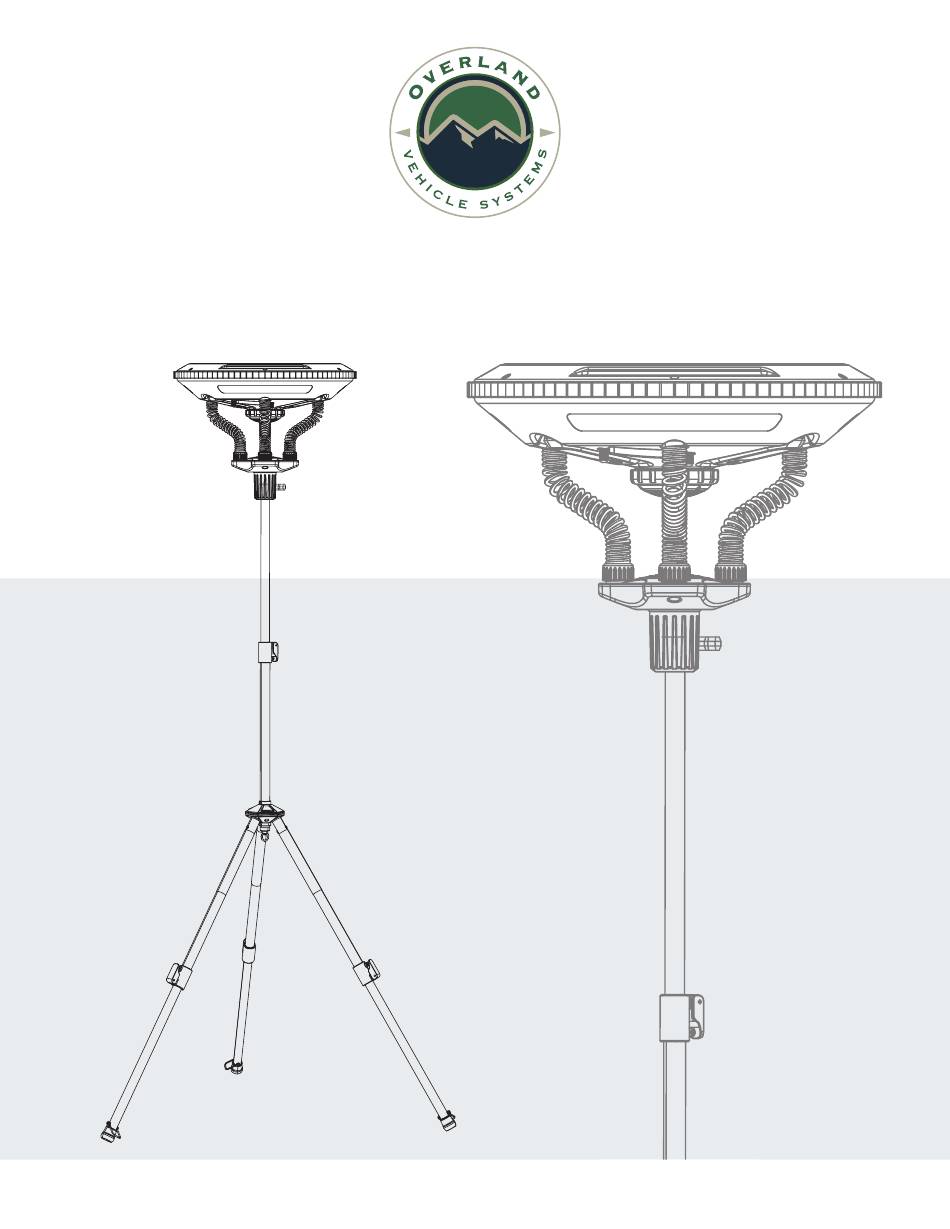

- Page 1 UFO Solar Camp Light & Speaker...
-
Page 2: Table Of Contents
INSTRUCTION MANUAL + Before using, please read the instruction manual carefully first. + Please keep this manual, Can be consult at any time. + Please on the basis of fully understanding, used correctly. I.PRODUCT SPECIFICATION 1. Main lamp specifications 2. Side lamp specifications 3. -
Page 3: Main Lamp Specifications
MAIN LAMPS SPECIFICATIONS Solar panel specifications: 5.5V/1.3A (248x248) Polysilicon Main lamp Li-ion battery capacity: 3. 7V 10400mAh Main lamp power(W): 6.5W/4.5W/3.2W Main lamp luminous(LM): 700lm/480lm/350lm Main lamp usage time: BH/11 H/14H(Li-ion) Solar charging time: 16H DC charging time: 1OH USB input: 5V/2A (Compatible adapter) USB output: 5V/1A Whole lamp height: 1.Sm-2.1 m(Height adjustable) Color rendering index: RaB0... - Page 4 UFO Camp Light & Speaker SET-UP & CARE INSTRUCTIONS PRODUCT DETAILS TOP POLYSILICON SOLAR PANEL TRIPOD HEAD PORTABLE BLUETOOTH SPEAKER SPRING PORTABLE BLUETOOTH SPEAKER ADJUSTABLE MAIN LAMP HEIGHT SIDE LAMP ALKALINE DRY BATTERY COVER Optional external battery cover: By toggling the switch to external battery mode (D size batteries [3]) the unit can continue to function accordingly.
-
Page 5: Main Lamp Details
UFO Camp Light & Speaker SET-UP & CARE INSTRUCTIONS MAIN LAMP FEATURES 1. The main lamp and side lamp will be charged while charging with DC input or Solar power in sufficient power stats. 2. Main lamp has Double color indicator(red and green),the states as follows: LIGHTING STATS CHARGING POWER... -
Page 6: Ufo Component Details
UFO Camp Light & Speaker SET-UP & CARE INSTRUCTIONS UFO COMPONENT DETAILS USB OUTPUT INTERFACE Mobile phone and other (5V/1A) electrical components can be charged using the USB port on the UFO. Insert USB and charging will begin automatically. USB charging will shut off automatically after 20 min of non-use. -
Page 7: Side Lamp Details
UFO Camp Light & Speaker SET-UP & CARE INSTRUCTIONS SIDE LAMP DETAILS LED PANEL LIGHT SIDE LAMP CHARGING INDICATOR LIGHT When side lamp is in charging mode, a red light will appear. When battery is fully charged, the red light will disappear. SIDE LAMP ON/OFF SWITCH PANEL LIGHT HIGH BRIGHTNESS, THEN PRESS IT LIGHTLY TO SWITCH DIFFERENT FUNCTION IN ORDER:... -
Page 8: Bluetooth Speaker
UFO Camp Light & Speaker SET-UP & CARE INSTRUCTIONS PORTABLE BLUETOOTH SPEAKER: 1. Press on/off switch for more than 5sec, this will turn on the bluetooth speaker, connect the speaker (BT06) to your mobile device via bluetooth. 2. Holding on/off switch for 1-2 sec will pause the music 3. -
Page 9: Installation Instructions
UFO Camp Light & Speaker SET-UP & CARE INSTRUCTIONS INSTALLATION INSTRUCTIONS TRIPOD ASSEMBLING 1. First, insert supporting feet to tripod axis via the slot 2. Second, screw in the ring to tripod axis TRIPOD ASSEMBLING 3.Install the springs into the sockets on the UFO lamp the springs have special key ways that need to inserted into the UFO base. - Page 10 UFO Camp Light & Speaker SET-UP & CARE INSTRUCTIONS TRIPOD HEAD ASSEMBLING 4. Screw tight tripod head with the spring. **Be careful to not strip the treading when SCREW TIGHT installing the springs in to the head unit. Be sure to line things up accordingly COMPLETE ASSEMBLY 5.
- Page 11 UFO Camp Light & Speaker SET-UP & CARE INSTRUCTIONS 6. The tripod is ajustable up to 2m height via the safety lock MOUNT ANY HEAVY ITEMS SUCH AS SANDBAG ETC. ADJUST TRIPOD HEIGHT INSTALL TENT STAKE REMARK: The stake is required for the tripod feet, and mounts heavy items under axis for more stable under windy conditions.
-
Page 12: Function And Usage Range
UFO Camp Light & Speaker SET-UP & CARE INSTRUCTIONS COMPONENTS USES 1. OUTDOOR Provide better lighting for outdoor are of camping, party etc. 2. USB POWER BANK The lamp has integrated USB power bank function, it can provide electricity for mobile accessories via USB port (5V1A), the charging function will be turned off after 20 second if the accessory has been removed. -
Page 13: Warranty Card
Warranty Card UFO Solar Camp Light & Speaker Product Name Model Number Date of production Factory Code Inspector Inspection Conclusion Telephone Name Address Purchase Date Purchase date 1. This product from the date of sale and warranty for one year. 2.
