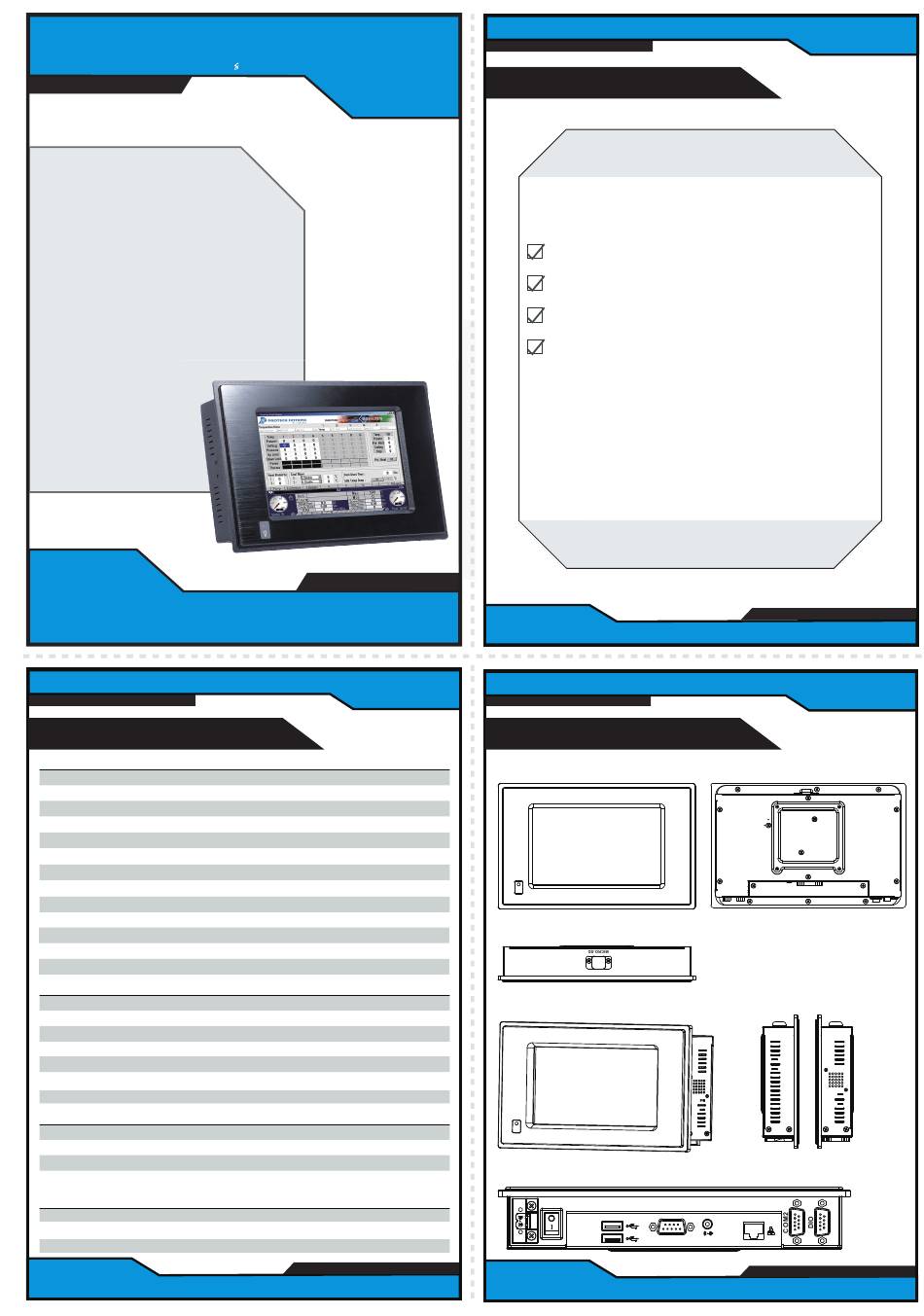

ELT PLP-P21208 Quick Reference Manual

PLP-P21208
Quick
Reference
Guide
Specifications
System
CPU Freescale™ ARM Cortex™ A8 i-MX515 800MHz
PMIC Freescale™ MC13892JVK
®
Operation System Windows CE 6.0
Memory Up to 512MB DDR2 SDRAM on board
Flash e-NAND 4GB
Panel Protection IP65 compliant
Power Requirement DC-in 12V (Optional: wide-ranged 9~36V DC-in)
WDT Built-in Freescale™ i.MX515 MPU
Construction Aluminum front bezel/Rugged metal housing
Mounting ARM (VESA 75 x 75)
System Weight 1.4 kg (3.1lb)
Dimension (WxHxD) 235 x 150 x 41.5 mm (9.25" x 5.9 x 1.6")
Certificate FCC/CE
I/O Ports
LAN 1 x 10/100MBps
USB 2 x USB 2.0
Serial Port COM 1: RS232 (+5V/+12V selectable); COM2: RS485
Audio 1 x Line out
Speaker 1 x 2 W international speaker
Digital I/O 3 in/3 out
Expansion Slot 1 x Micro-SD slot
Display
LCD Size 7"
Brightness (cd/m²) 500 cd/m²
Backlight & MTBF LED, 50,000 hrs
Touch screen Resistive type 4-wire
Environment
Operating Temp. 0 ~ 60°C (32 ~ 140°F)
Storage Temp. -20 ~ 80°C (-4 ~ 176°F)
Humidity 20 ~ 90%
Ver. Q2 Ver. Q2
All Rights Reserved. Copyright 2012
Packing Checklist
If you discover any item below damaged or lost,
please contact your vendor.
PLP-P21208
This Quick Reference Guide
Manual/Driver CD
Switch Cable
System View
Front View
Top View
Quarter View
I/O View
DC-IN
COM1
x1
x1
x1
x1
Rear View
Side View
