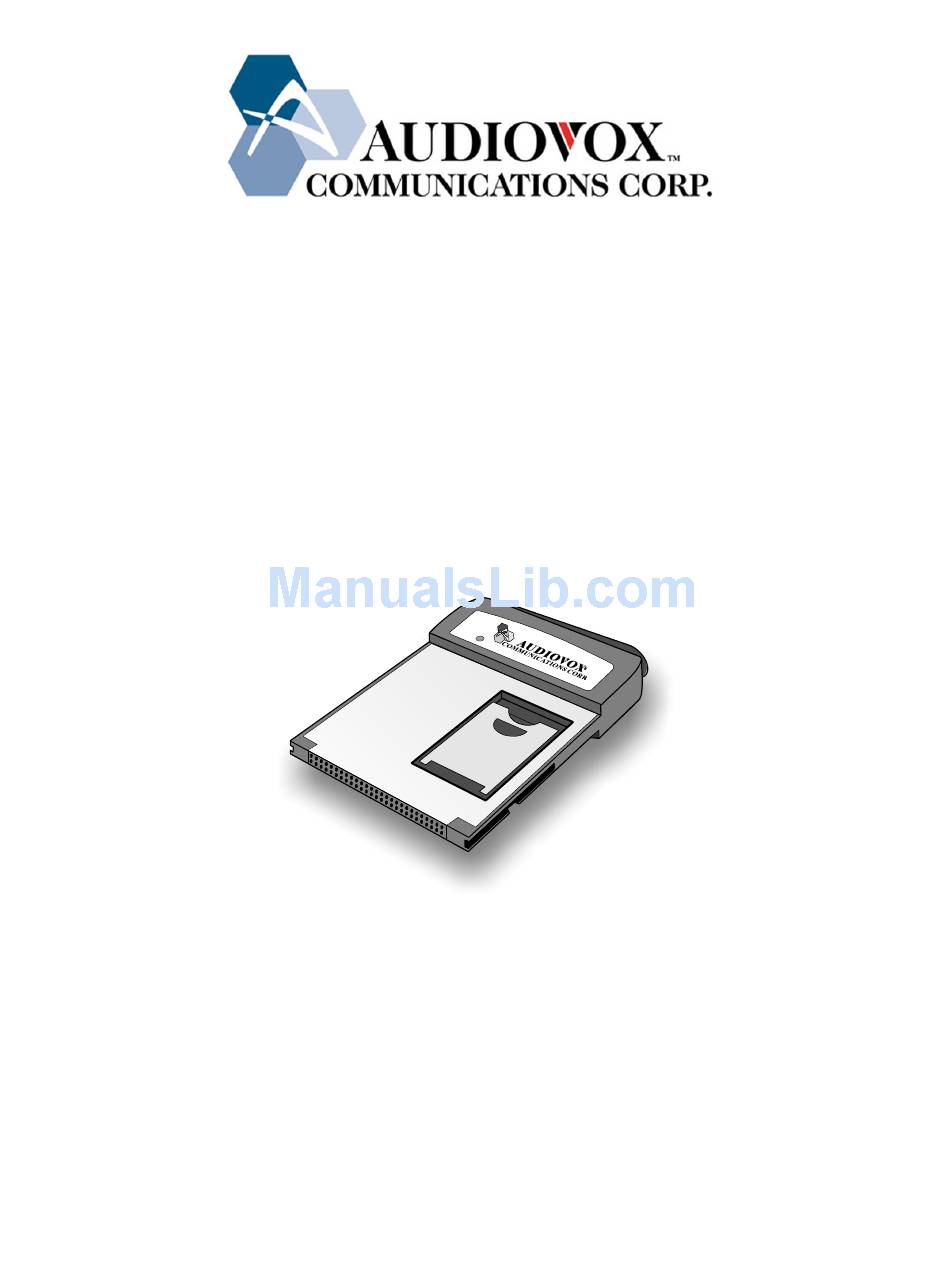

  • Page 1 RTM-8000D GSM/GPRS Compact Flash Owner’s Manual...
  • Page 2 Copyright Statement Copyright 2002 by Audiovox Communications Corp. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of Audiovox Communications Corp.
  • Page 3 2. This device must accept any interference received, including interference that may cause undesirable operations. Audiovox Communications Corp. stipulates that the antenna should be more than 1.5 cm (0.60”) from by-standers and 1.0cm (0.39”) from the user. When in use, the antenna should be fully extended upward at a 90-degree angle.

  • Page 4: Safety Information

    interference causing equipment standard entitled “Digital Apparatus,” ICES-003 of the Department of Communications. Cet appareil numerique respecte les limites de bruits radioelectriques applicables aux appareils numeriques de Classe B prescrites dans la norme sur le materiel brouilleur. “Appareils Numeriques,” NMB-003 edictee par le ministre de Communications.
  • Page 5 near medical equipment, life support equipment, or any equipment which may be susceptible to any form of radio interference. areas the CF Card-Model RTM8000D MUST BE POWERED OFF. It can transmit signals that could interfere with this equipment. Aircraft Do not operate the CF Card-Model RTM8000D in any aircraft whether the aircraft is on the ground or in flight.
  • Page 6 Attention Handle the product with care. Do not drop, bend or apply strong forces to the product. Otherwise, unrecoverable damages will occur in its internal components. There are no user serviceable parts inside this product. If this product appears to be broken, call a qualified service personnel or send this product to your original dealer.
  • Page 7 Tips When Using • Avoid using the product near metal structures (for example, large metal furniture or steel frames of a building). The transmission and reception of signal can be effected by these objects. • Avoid using the product near strong electromagnetic sources, such as microwave ovens, sound speakers, TV and radio.

  • Page 8: Table Of Contents

    SING IRELESS SING IRELESS SING IRELESS TROUBLESHOOTING & WARRANTY ROUBLESHOOTING Installation of the RTM-8000D is unsuccessful ... 38 Can not establish GPRS connection ... 38 GPRS connection is slow and unstable ... 38 12 M ONTH IMITED ARRANTY ... 3 ...

  • Page 9: Overview

    This manual will help you to better understand your RTM-8000D GSM/GPRS Compact Flash card as well as familiarize yourself quickly with how to use it.

  • Page 10: Appearance

    Note: Do not remove the antenna from the RTM-8000D. The Status Indicator The working status of the RTM-8000D is shown by the status indicator. Please refer to the table below for the blinking patterns of the indicator and the status...

  • Page 11: Installing And Configuring The Rtm-8000D

    Installing and Configuring the RTM-8000D System Requirements Check your hardware and software and see if they satisfy the requirements below. If you are not sure, please consult your dealer or operator. Hardware & software requirements A valid SIM card. A Type I Compact Flash Card slot or a PCMCIA (PC Card) slot and a...

  • Page 12: Installing Rtm-8000D On A Pocket Pc

    Install GPRS Settings Tool on your Pocket PC Configure GPRS settings. Inserting RTM-8000D into Pocket PC Refer to the illustration below to insert RTM-8000D into Pocket PC. Note: The way to insert RTM-8000D may be different from Pocket PC to...
  • Page 13 PDA using Pocket PC 2000 system, please refer to the file PPC2000setup.pdf on the CD-ROM for instructions. Before installing GPRS Settings Tool: Back up the data on your Pocket PC. Make sure your Pocket PC is connected to your PC and RTM-8000D is inserted.
  • Page 14 Insert the software CD-ROM into your CD-ROM drive and double-click the Setup.exe icon in the GPRS Setting Tool_PPC/PPC2002 2003 folder. The installer starts automatically. Follow the instructions on the screen to proceed. Configuring GPRS Settings Start, Programs. GPRS Settings. A new connection is established automatically when the GPRS Settings Tool is run for the first time.
  • Page 15 A new dialing location will also be created. Tap OK. Note: The new dialing location is created specially for GPRS connection. When you use other connections, remember to switch back to your original dialing location. The GPRS Settings window where you can configure GPRS parameters will appear.
  • Page 16 ne Number Enter the phone number to dial for data connections (such as *99#) in this field. This is specified by your operator. PIN Code Required If the PIN code of your SIM card is activated, check this checkbox. Enter your PIN code in the field and your PIN code again in the Confirm...

  • Page 17: Installing The Rtm-8000D On A Pc

    According to the operating system of your PC, install appropriate driver and then the RTM-8000D Compact Flash card. Configure the settings of the RTM-8000D Compact Flash card driver. Note: Be sure to install RTM-8000D driver before inserting the card into your PC. Installing RTM-8000D Driver:...
  • Page 18 Insert the CD-ROM into your CD-ROM drive and double-click the setup.exe icon in the GPRS Setting Tool_PC folder. Driver installation wizard will appear on the screen. Click Next. Click Next.
  • Page 19 The installation wizard will start copying files to your system. Click Finish. Insert RTM-8000D into your PC.
  • Page 20 PC to PC. Please refer to the documentation of your PC for details. RTM-8000D will be detected automatically as a GPRS Modem. The installation of RTM-8000D is complete. Follow the description of See Configuring the settings of RTM-8000D to configure the settings of driver.
  • Page 21 Installation procedure in Windows 2000 Insert the CD-ROM into your CD-ROM drive and double-click the setup.exe icon in the GPRS Setting Tool_PC folder. Driver installation wizard will appear on the screen. Click Next. Click Next.
  • Page 22 Click Next. Click Finish.
  • Page 23 Insert RTM-8000D into your PC. RTM-8000D will be detected automatically. Click Yes. The installation of RTM-8000D is complete. Follow the description of See Configuring the settings of RTM-8000D to configure the settings of driver.
  • Page 24 ation procedure in Windows XP Install Insert the CD-ROM into your CD-ROM drive and double-click the setup.exe icon in the GPRS Setting Tool_PC folder. Driver installation wizard will appear on the screen. Click Next.
  • Page 25 Click Next. The installation wizard will start copying files to your system.
  • Page 26 Click Finish. Insert RTM-8000D into your PC. Note: The way to insert the CompactFlash and PCMCIA card may be different from PC to PC. Please refer to the documentation of your PC for details. Found New Hardware Wizard will appear on the screen. Click Next.
  • Page 27 The computer will start detecting RTM-8000D. Click Continue Anyway. The wizard will continue installing.
  • Page 28 Click Finish. The installation of RTM-8000D is complete. Follow the description of See Configuring the settings of RTM-8000D to configure the settings of driver.
  • Page 29 Configuring the settings of RTM-8000D Click Start on Windows Taskbar and select GPRS Modem Tools, GPRS Modem Configuration to open the GPRS Modem Configuration Tool. The section below describes each setting item in the window. For actual setting parameters, please consult your operator.
  • Page 30 RTM-8000D to stop/close it down. Double click on this icon. Click When this is complete, you may remove the RTM-8000D from your Pocket PC.

  • Page 31: Using The Rtm-8000D

    Using the RTM-8000D Using Wireless Data Connection on Pocket PC 2000/2002 Tap Start , Settings. Connections tab.
  • Page 32 Connections icon. Tap Modify.
  • Page 33 Tap and hold the new submenu that appears. Connecting... dialogue box pops up. GPRS Connection and tap Connect on the...
  • Page 34 If connection is established successfully, the will appear. Now you are ready to surf the Internet using Pocket Internet Explorer or other applications. Note: To disconnect from the Internet, tap the two-arrow symbol on the top bar of your Pocket PC screen. When the dialog box appears, tap End.

  • Page 35: Onnection On W Indows M Obile 2003

    Using Wireless Data Connection on Windows Mobile 2003 Tap Start, Settings. Connections tab.
  • Page 36 Connections icon. Manage existing connections.
  • Page 37 Tap and hold the new submenu that appears. Connecting... dialogue box pops up. If connection is established successfully, appear. Now you are ready to surf the Internet using Pocket Internet Explorer or other applications. GPRS Connection and tap Connect Connected on the dialogue box will...

  • Page 38: Using Wireless Data Connection On Windows Mobile 2003

    Note: To disconnect from the Internet, tap the two-arrow symbol on the top bar of your Pocket PC screen. When the dialog box appears, tap Disconnect. Using Wireless Data Connection on WinCE Tap Start, Settings, Double tap Make New Network and Dial-up Connections.
  • Page 39 Type a name for the connection and tap Next. Select GPRS_Modem from the drop-dowm menu and tap Configure….
  • Page 40 Tap the drop-down menu of Call Options, enter +CPIN=”****”;+CGDCONT=1,”IP”,”APN” (where **** is your PIN code, and APN is the Access Point Name of your operator) in the Extra Settings field. IF the PIN code of your SIM card is not enabled, just enter +CGDCONT=1,”IP”,”APN”.
  • Page 41 Enter the phone number to dial for data connections and tap Finish. This phone number is specified by your operator. Double tap the new connection.
  • Page 42 Dial Properties…. Dialing Patterns…...
  • Page 43 Edit the dialing pattern for each type of call and tap OK. Tap Connect.

  • Page 44: Using Wireless Data Connection On Pc

    Connection is established successfully. Using Wireless Data Connection on PC The RTM-8000D driver creates a GPRS Modem Connection icon on your desktop. Double-click the icon and the connection dialogue box will appear on the screen.
  • Page 45 You can also open such dialogue box by clicking the Taskbar and selecting Programs, Connection Click Connect or Dial. Connecting... dialogue box will pop up on the screen. If connection is established successfully, appear. Now you are ready to use the connection with your favorite applications.

  • Page 46: Troubleshooting & Warranty

    Did you enter correct parameters (such as your PIN code if it is activated, or the APN of your operator) when installing the RTM-8000D? Did you insert the RTM-8000D all the way into the slot of your Pocket PC? Can not establish GPRS connection...

  • Page 47: 12 Month Limited Warranty

    Protect Your Warranty Audiovox Communications Corp. (the Company) warrants to the original retail purchaser of this Audiovox GSM/GPRS Compact Flash Card, that should this product or any part thereof during normal consumer usage and conditions, be proven defective in material or workmanship that results in product failure within the first twelve (12) month period from the date of purchase, such defect(s) will be repaired or replaced (with new or rebuilt parts) at the Company’s option, without charge for parts or labor...
  • Page 48 IN USA: AUDIOVOX COMMUNICATIONS CORP. 555 Wireless Blvd. Hauppauge, NY 11788 (800) 229-1235 IN CANADA: AUDIOVOX COMMUNICATIONS CANADA CO. 5155 Spectrum Way, Unit #5 Mississauga, Ontario L4W 5A1 (800) 465-9672...
