Summary of Contents for Audiovox Menace PX-300

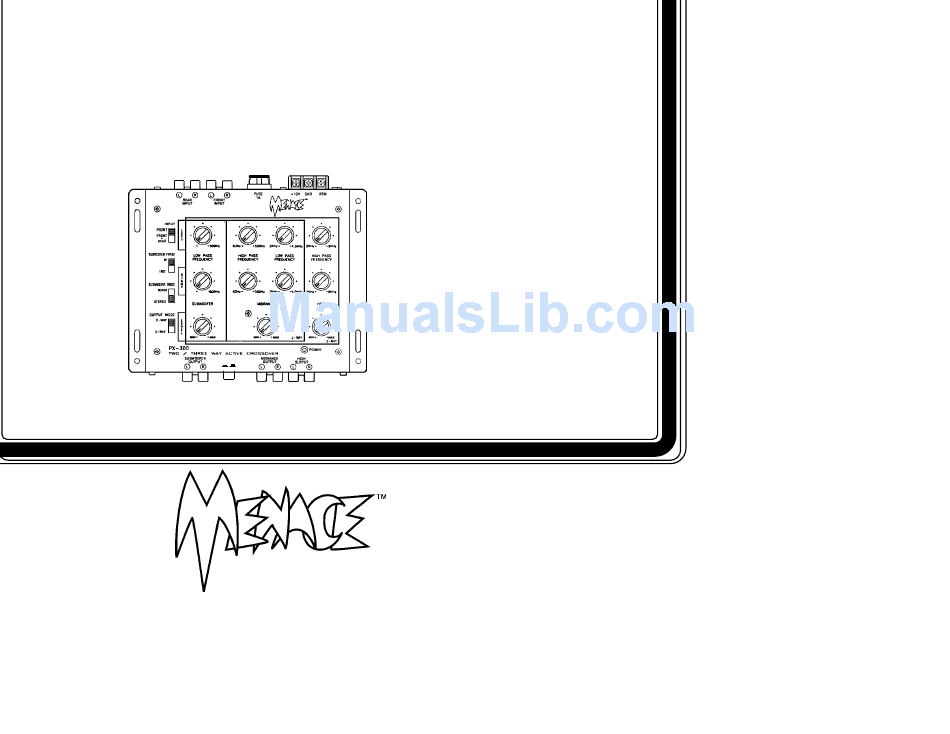

  • Page 1 30Hz 2/3-Way Active 30Hz BASS BOOST +B dB @ 45Hz PX-300 Crossover Owner's Owner's Owner's Owner's Owner's Manual Manual Manual Manual Manual...
  • Page 2: Table Of Contents

    INDEX Specifications ...1 Installation Instructions ...2 WiringInstructions...3 2-Way System Wiring Diagram ...4 - 5 3-Way System Wiring Diagram ...6 - 7 Operation ...8 - 9 Warranty... BackCover...
  • Page 3: Specifications

    Output Impedance: 100 ohms Bass Boost: + 8 dB @ 45 Hz. Crossover Slope: 18 dB/octave * Due to continuing improvement, Audiovox reserves the right to change features and design without notice. HELP! 1-800-645-4994 Monday-Friday Saturday Crossover Frequency Subwoofer Low-Pass: 30 - 500 Hz.
  • Page 4: Installation Instructions

    2. Place the crossover on the mounting surface and mark the locations of the four mounting holes as shown in the illustration. 3. Remove the crossover and drill a 1/8" hole at each of the four locations. CAUTION: Before drilling the holes, look at the underside of the mounting surface.
  • Page 5: Wiringinstructions

    Auto-Antenna lead, the remote turn-on lead may be wired to an "Accessory" or "Radio" terminal in the car's fuse block. This will turn the crossover on and off with the ignition key, regardless of whether the car stereo is on or off. The remote turn-on lead does not carry large currents, so #20 gauge wire may be used for this application.
  • Page 6: 2-Way System Wiring Diagram

    2-WAY SYSTEM WIRING USING 2 CHANNEL INPUT SET TO "FRONT" SET TO SET TO "STEREO" "MONO" SET TO 30Hz "2-WAY" MONO WOOFER AMPLIFIER MONO WOOFER CAR STEREO AUTO-ANTENNA LEAD LOW-LEVEL RCA OUTPUTS RIGHT LEFT 30Hz 30Hz BASS BOOST +B dB @ 45Hz 2-CHANNEL MIDRANGE / HIGH WOOFER AMPLIFIER...
  • Page 7 2-WAY SYSTEM WIRING USING 4 CHANNEL INPUT LOW-LEVEL RCA OUTPUTS SET TO "FRONT + REAR" SET TO "STEREO" SET TO "MONO" SET TO 30Hz "2-WAY" MONO WOOFER AMPLIFIER MONO WOOFER CAR STEREO AUTO-ANTENNA LEAD 30Hz 30Hz BASS BOOST +B dB @ 45Hz 2-CHANNEL MIDRANGE / HIGH WOOFER AMPLIFIER...
  • Page 8: 3-Way System Wiring Diagram

    3-WAY SYSTEM WIRING USING 2 CHANNEL INPUT SET TO "FRONT" SET TO SET TO "STEREO" "MONO" SET TO 30Hz "3-WAY" MONO WOOFER AMPLIFIER MONO WOOFER CAR STEREO AUTO-ANTENNA LEAD LOW-LEVEL RCA OUTPUTS RIGHT LEFT 30Hz 30Hz BASS BOOST +B dB @ 45Hz 2-CHANNEL MIDRANGE WOOFER AMPLIFIER...
  • Page 9 3-WAY SYSTEM WIRING USING 4 CHANNEL INPUT LOW-LEVEL RCA OUTPUTS SET TO "FRONT + REAR" SET TO "STEREO" SET TO "MONO" SET TO 30Hz "3-WAY" MONO WOOFER AMPLIFIER MONO WOOFER CAR STEREO AUTO-ANTENNA LEAD 30Hz 30Hz BASS BOOST +B dB @ 45Hz 2-CHANNEL MIDRANGE WOOFER AMPLIFIER...
  • Page 10: Operation

    +12 volts, thus turning on the crossover. INPUT SELECTOR This switch is used to select the inputs of the audio signal to the crossover. In the “FRONT” setting, only the input connected to the “FRONT INPUT” jacks will be processed. In the “FRONT + REAR” setting, both the inputs to the “FRONT INPUT”...
  • Page 11 “HIGH OUTPUT” jacks and no effect by adjusting the High Level Control FUSE The circuitry of the crossover is protected from damage by an automo- tive-type fast-blow fuse. If fuse replacement is necessary, use only fuses of the same ampere rating (1 Amp.) as originally supplied with the unit.
  • Page 12: Warranty

    AUDIOVOX CORPORATION (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product (at the Company's option) without charge for parts and repair labor.
