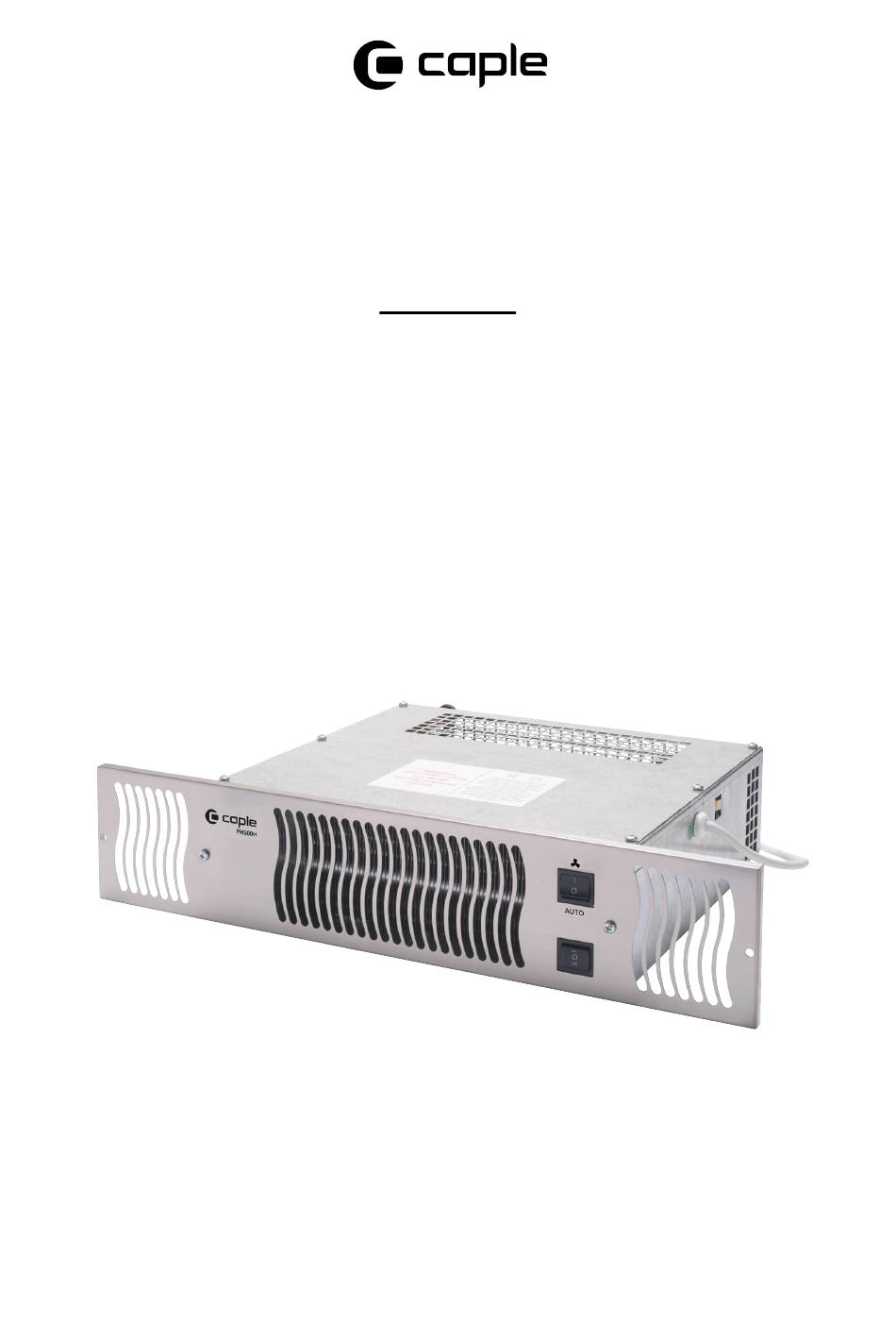

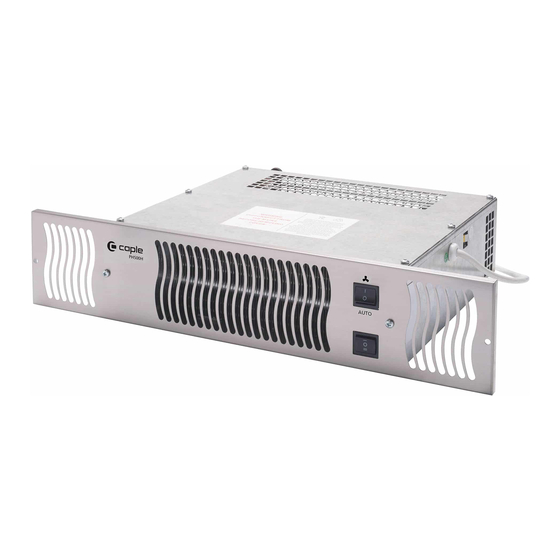

- Page 1 H y d r o n i c P l i n t h H e a t e r I n s t r u c t i o n M a n u a l PH 500H Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk...
-
Page 2: Table Of Contents
C O N T E N T S Safety Instructions Environmental Protection Fitting Instructions Troubleshooting Care and Maintenance Caple Contact Details Instruction manual PH500H Please keep this instruction manual for future reference... -
Page 3: Safety Instructions
- To prevent fire hazards do not block the ventilation grille. - Keep all flammable materials away from the appliance. - It is dangerous to alter or modify the specifications of the appliance in any way. Instruction manual PH500H Please keep this instruction manual for future reference... - Page 4 - Ensure that the supply cord is not wedged during the installation. If the supply cord is damaged, it must be replaced by a Caple service technician or similarly qualified persons in order to prevent a hazard. - Do not use harsh abrasive cleaners or sharp metal scrapers to clean the grille, as this may damage or scratch the surface.
-
Page 5: Environmental Protection
(placed on the inside of the appliance storage drawer). Registration can also be completed online by visiting www.caple.co.uk. Ensure you keep your warranty card safe, you may need to show it to Caple Service together with proof of purchase. -
Page 6: Fitting Instructions
It is recommended that there is a gap of 20mm between the top of the plinth and the shelf of the cupboard above to ensure adequate airflow. 360mm 96mm A = Width of cut out B = Height of cut out Floor mounting Plinth mounting Instruction manual PH500H Please keep this instruction manual for future reference... - Page 7 › Turn on the central heating water supply and the plinth heater isolation valves and check for any leaks. Tighten compression joints if required. Instruction manual PH500H Please keep this instruction manual for future reference...
- Page 8 Replace the plinth and pull the heater through the opening till the front edge projects 8mm through the plinth. Instruction manual PH500H Please keep this instruction manual for future reference...
- Page 9 “I” . In this position the fan will run until the unit is manually reset. FA N “I” Summer mode (fan only) “0” Auto Auto “I” Low “0” Off “II” Boost Instruction manual PH500H Please keep this instruction manual for future reference...
-
Page 10: Troubleshooting
› Check the unit is not air locked. Use bleed valve in front of the unit to release any air. › Balance the central heating system if installed on same circuit as panel radiators and increase the circulating pump speed if required. › Increase the boiler temperature. 10 Instruction manual PH500H Please keep this instruction manual for future reference... -
Page 11: Care And Maintenance
Before any maintenance is carried out on the unit the electrical supply must be isolated. Maintenance should be restricted to dust and lint removal around the unit. Do not tamper with any electrical parts. A Caple approved engineer should be used for other maintenance requirements. -
Page 12: Caple Contact Details
Caple Service Fourth Way Avonmouth T: 0117 938 1900 Bristol E: service@caple.co.uk BS11 8DW www.caple.co.uk...
