What's in the shipping package?

The package includes the following items:

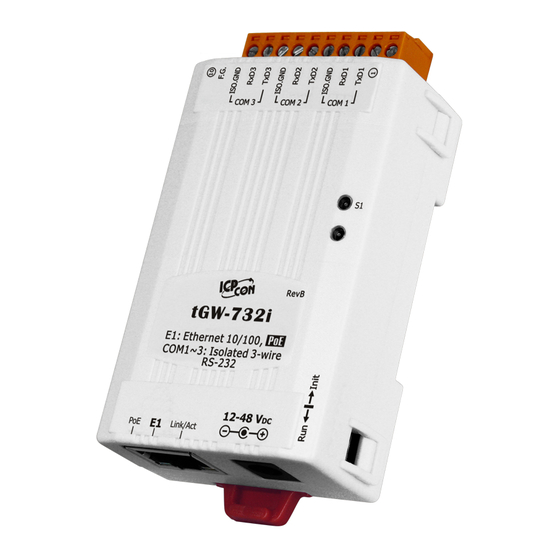

tGW-700 series

Preparations for devices

1. Power Supply:+12 ~ +48 V

2. Ethernet Hub or PoE Ethernet Switch.

3. Make sure your PC has workable network settings.

4. Disable or well configure your Windows firewall and Anti-Virus

firewall first, else the "Search Servers" on page 3 may not

work. (Please contact with your system Administrator)

Quick Start Guide

Software CD

(This Document)

tGW-700 Series Quick Start Guide

For tGW-700 Series

English/ MAR 2011/ Version 1.2

DC Connector

Power cable

Table of Contents

Need help?

Do you have a question about the tGW-700 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for TGW tGW-700 Series

Page 1 3. Make sure your PC has workable network settings. 4. Disable or well configure your Windows firewall and Anti-Virus firewall first, else the “Search Servers” on page 3 may not work. (Please contact with your system Administrator) tGW-700 Series Quick Start Guide...
Page 2 Connecting the Power and Host PC 1. Make sure the switch is placed in the “RUN” mode. 2. Connect both the tGW-700 and your computer to the same sub network or the same Ethernet Switch, and power the tGW-700 on.
Page 3 The software is located at: CD:\Napdos\software\eSearch\ http://ftp.icpdas.com/pub/cd/tinymodules/napdos/software/esearch/ Configuring Ethernet Settings 1. Click “Search Servers” button to search your tGW-700. 2. Double-Click the tGW-700 to configure the Ethernet Settings. 2. Double-Click your tGW-700 1. Click “Search Servers” tGW-700 Series Quick Start Guide...
Page 4 3. Contact your Network Administrator to get correct network configuration. 4. Modify the network settings and then click “OK”. The tGW-700 will restart it-self immediately. Testing your tGW-700 1. Wire the Modbus device (ex: M-7055D, optional) with your tGW-700 as follows:...
Page 5 Step 3: Click the “Every visit to the page” and then click the “OK” button in Settings box and Internet Options box. For more detail, please refer to the user manual (Page 54) C:\ Napdos\tGW-700\Document\ http://ftp.icpdas.com/pub/cd/tinymodules/napdos/tgw-700/document/ 3. Type the URL address of tGW-700 in the browser tGW-700 Series Quick Start Guide...
Page 6 4. Enter the password and click the “Submit” button to enter the configuration web page. (The factory default password: admin) 5. Select the same Modbus protocol for tGW-700 in according to the protocol of the Modbus device (ex: Modbus RTU/ASCII).
Page 7 7. Click on the “Client tools” >> “Modbus/TCP Client”. 8. Enter the IP address of tGW-700 and then click “Connect” button to connect the tGW-700. 9. Refer to the field "Protocol Description" at the top right part of the program to send a request command and confirm the response is correct or not.
Page 8 Related Information tGW-700 Series Product Page: http://www.icpdas.com/products/Industrial/pds/tgw-700.htm tGW-700 Documentations: CD:\Napdos\tGW-700\document\ http://ftp.icpdas.com/pub/cd/tinymodules/napdos/tgw-700/document/ tGW-700 firmware: CD:\Napdos\tGW-700\Firmware\ http://ftp.icpdas.com/pub/cd/tinymodules/napdos/tgw-700/firmware/ M-7055D and i-7520 Product Page (optional): http://www.icpdas.com/products/Remote_IO/m-7000/m-7055d.htm http://www.icpdas.com/products/Remote_IO/i-7000/i-7520.htm NS-205, NS-205PSE and CA-0915 Product Page (optional): http://www.icpdas.com/products/Switch/industrial/ns-205.htm http://www.icpdas.com/products/Switch/industrial/ns-205pse.htm http://www.icpdas.com/products/Accessories/cable/cable_selection.htm ICP DAS Web Site: http://www.icpdas.com Contact Us (E-Mail): service@icpdas.com , service.icpdas@gmail.com...
