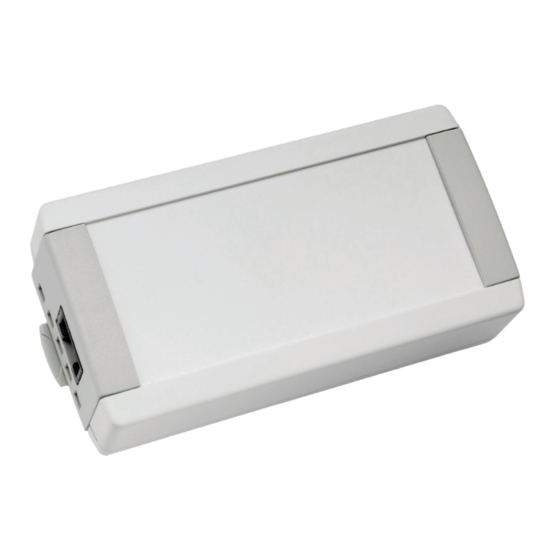

ISYGLT RS232-GW-02 Instruction Manual
  1. Manuals
  2. Brands
  3. ISYGLT Manuals
  4. Gateway
  5. RS232-GW-02
  6. Instruction manual

ISYGLT RS232-GW-02 Instruction Manual

Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

Technical Data / Instruction Manual
RS232-GW-02
Article no. 80087021
Gateway with RS232 interface bidirectionally parameterisable
1
Seebacher GmbH
www.seebacher.de
Phone: +49 (0) 80 41 / 77 77 6
Marktstrasse 57, 83646 Bad Tölz
info@seebacher.de
Fax: +49 (0) 80 41 / 77 77 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RS232-GW-02 and is the answer not in the manual?

Questions and answers

Summary of Contents for ISYGLT RS232-GW-02

  • Page 1 Technical Data / Instruction Manual RS232-GW-02 Article no. 80087021 Gateway with RS232 interface bidirectionally parameterisable Seebacher GmbH www.seebacher.de Phone: +49 (0) 80 41 / 77 77 6 Marktstrasse 57, 83646 Bad Tölz info@seebacher.de Fax: +49 (0) 80 41 / 77 77 2...

  • Page 2: Notes On Documentation

    These instructions are intended for qualified personnel who are fami- 1. Notes on documentation liar with the assembly, installation and operation of the ISYGLT system. It is essential that you read these operating instructions through before commissioning and keep them accessible for further use.

  • Page 3: Safety Instructions

    In addition to these safety instructions, you must also observe the and configuration of the ISYGLT module may only be carried out by special safety instructions listed in the individual chapters for the trained staff.

  • Page 4: Warranty

    These are limited to the intended use of the module and refer to the EU on waste electrical and electronic equipment at the local collection repair or replacement of the ISYGLT module. Please send the device points for waste electrical and electronic equipment! with an attached error description to our company address given below.

  • Page 5: Product Description

    Connections • 1 connection RJ45 for the operation voltage (Ub, 0V) and the subnet (BUS A and B, RS-485) • 1 connection SUB-D socket 9-pole (RS-232) potential free to the ISYGLT BUS Design • Plastic housing light grey, with fastening clip Special function DIP switch 1 •...

  • Page 6: 10. Technical Data

    12V to 35V DC or 12V to 27V AC Current consumption 24V DC 30mA Interface 1 RS-485 interface for ISYGLT BUS to communicate with modules Interface 2 RS-232 interface for the connection of PC / device Connection RJ45 and SUB-D socket 9-pole...
  • Page 7 View 102,00mm 30,00mm 11. Wiring diagram +24V BUS-A BUS-B Address RJ45 3 4 5 6 7 8 ISYGLT RS232-GW-02 Art.-Nr.: 80087021 9-pol.SUB-D socket SUB-D External device / e.g. beamer Misprints and technical changes reserved. Seebacher GmbH www.seebacher.de Phone: +49 (0) 80 41 / 77 77 6 Marktstrasse 57, 83646 Bad Tölz...
