Enabling Devices Ultimate Switch User Manual page 3

1. Clamping Options: Our mounting clamp is designed for mounting
to tubular (wheelchair, bedrail, walker, etc.) or flat surfaces such as
a table top or desk. For flat surface mounting use the included
wedge insert shoe stored in front of the locking knob on the clamp
(see Fig.1 & 2) Loosen locking knob slightly to remove wedge,
tighten knob once wedge has been removed.
2. Using the mounting clamp, attach the Ultimate Switch to a Wheel
Chair, Table or Desk. Tighten the clamp enough to hold the
Ultimate Switch securely, but do not over-Tighten the clamp.

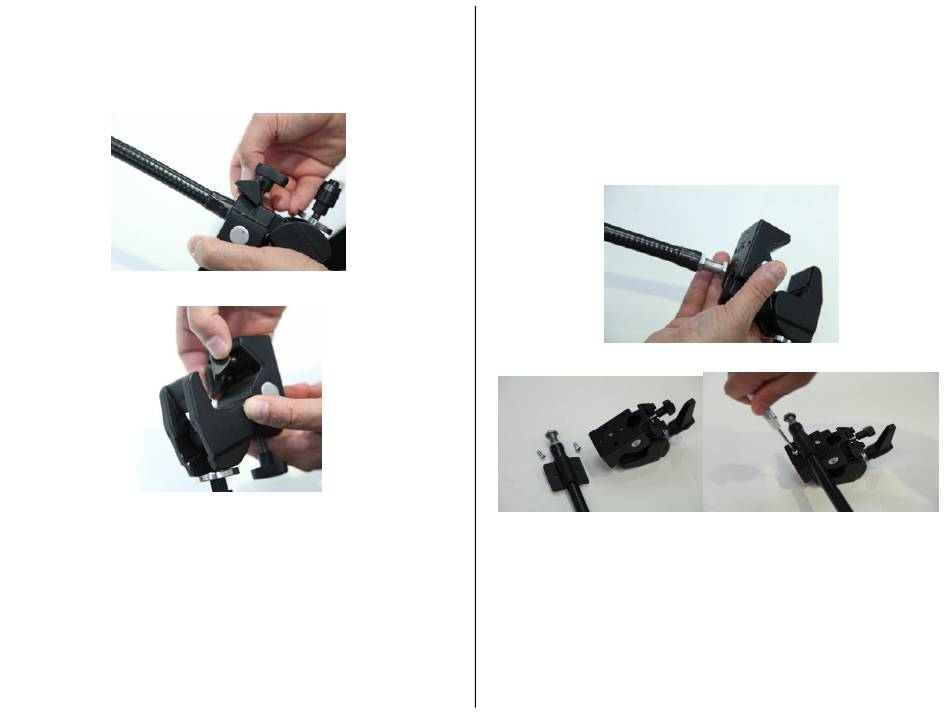

Fig.1
Fig. 2
3. For some mounting applications the clamp will need to be mounted
horizontally, we have included a Gooseneck clamp mount adapter
for this use. To use the adapter you first must remove the
Gooseneck from the clamp, do this by loosening the set knob on
the back of the clamp. This is the same knob that holds the clamp
wedge (shown in Fig.1). Next depress the spring loaded pin on the
side of the clamp and pull the Gooseneck from the clamp (see
Fig.3). Attach the adapter to the Gooseneck and secure with the
included mounting screws as shown in (Fig. 4 & 5).
Fig.4
Fig.3
Fig.5
8/17/11
