Summary of Contents for EverHot 252 Series

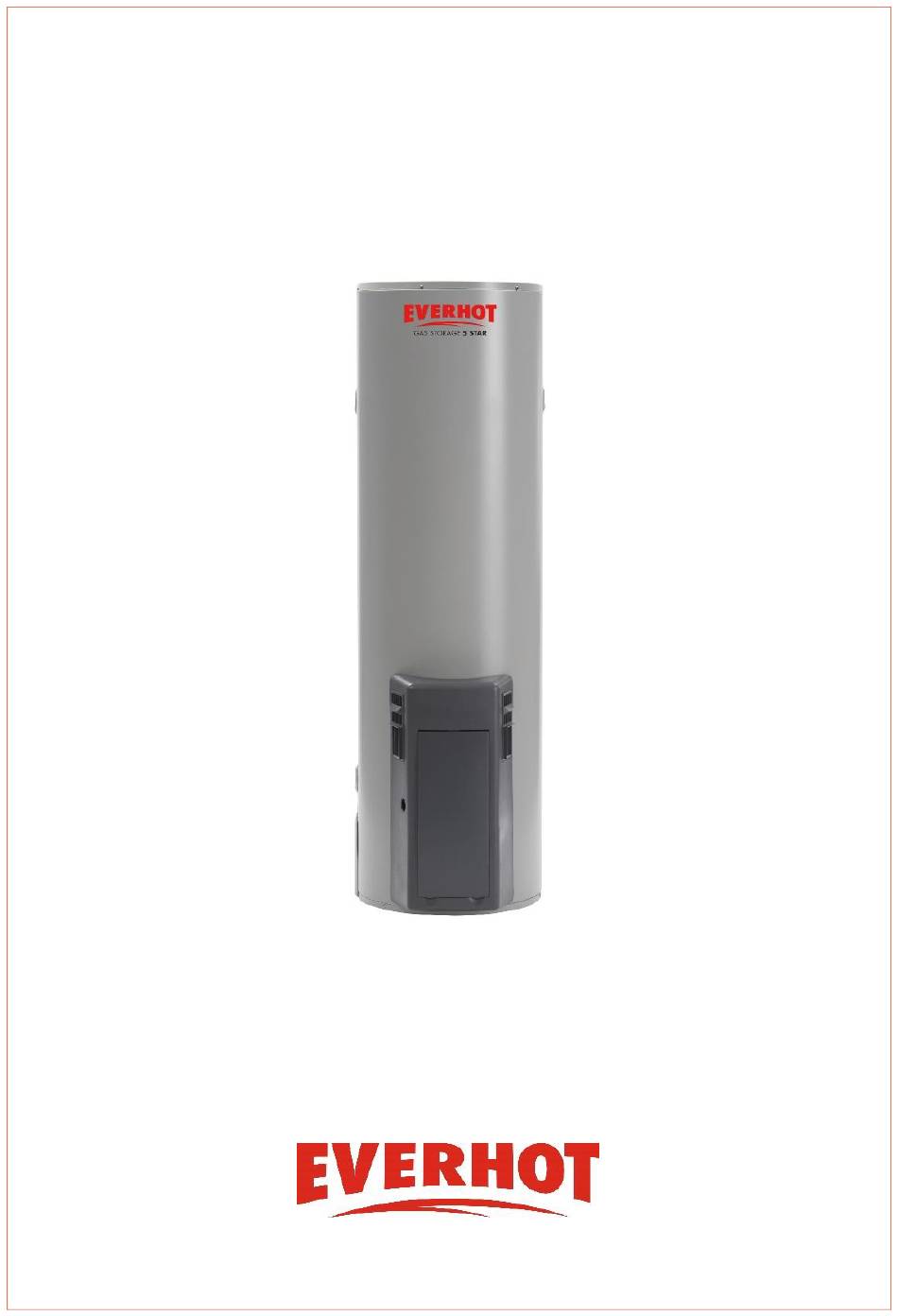

- Page 1 Owner’s Guide Installation Instructions Gas Domestic Outdoor Water Heater 252 series 265, 295 models This water heater must be installed and serviced by a qualified person. Please leave this guide with the householder.
- Page 2 Warning: Upon completion of the installation and commissioning of the water heater, leave this guide with the householder or responsible officer. DO NOT leave this guide inside of the cover of the water heater, as it may interfere with the safe operation of the water heater or ignite when the water heater is turned on.
-
Page 3: Table Of Contents
Everhot warranty. We recommend you read pages 8 to 24, and the terms of the Everhot warranty on pages 4 to 7. The other pages are intended for the installer but may be of interest. -
Page 4: Warranty
The decision of whether to repair or replace a faulty component is at Rheem’s sole discretion. If you require a call out and we find that the fault is not covered by the Everhot warranty, you are responsible for our standard call out charge. If you wish to have the relevant component repaired or replaced by Rheem, that service will be at your cost. - Page 5 This warranty only applies to the original and genuine Everhot water heater in its original installed location and any genuine Everhot replacement parts.
- Page 6 2.10 If the water heater is not sized to supply the hot water demand in accordance with the guidelines in the Everhot water heater literature, any resultant fault will not be covered by the Everhot warranty. 3. WHAT IS COVERED BY THE EVERHOT WARRANTY...
- Page 7 You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. The Everhot warranty (set out above) is in addition to any rights and remedies that you may have under the Australian Consumer Law.
-
Page 8: Safety, Warnings, Installation Notes
The water heater must not be operated unless each of these devices is fitted and is in working order. The Everhot warranty may not cover faults if relief valves or other safety devices are tampered with or if the installation is not in accordance with these instructions. - Page 9 SAFETY, WARNINGS, INSTALLATION NOTES • The water heater will operate until a water temperature of up to 65°C is reached, depending upon the thermostat setting. “How Hot Should The Water Be?” “Temperature Refer to on page 12 and Adjustment” on page 13. •...
- Page 10 SAFETY, WARNINGS, INSTALLATION NOTES Valve Operation Continuous leakage of water from either valve and its drain line may indicate a “Temperature Pressure Relief Valve or problem with the water heater. Refer to Expansion Control Valve Running” on page 23. Warning: Never block the outlet of either valve or their drain lines for any reason.
- Page 11 SAFETY, WARNINGS, INSTALLATION NOTES INSTALLATION NOTES This water heater must be installed: • by a qualified person, • in accordance with the installation instructions, • in compliance with the Plumbing Code of Australia (PCA) and Plumbing Standard AS/NZS 3500.4, ▪ This water heater is suitable for outdoor installation only. ▪...
-
Page 12: About Your Water Heater
The model is a 252 series 5 star natural gas water heater. Water is stored in a vitreous enamel lined steel cylinder and heated by a gas burner located under the cylinder. - Page 13 ABOUT YOUR WATER HEATER HOTTER WATER INCREASES THE RISK OF SCALD INJURY This water heater can deliver hot water at temperatures up to 65°C depending upon the thermostat setting, sufficiently hot to cause severe scalding. Water at these temperatures may have been plumbed to fixtures where water hotter than 50°C is allowed, such as the kitchen and laundry.
- Page 14 ABOUT YOUR WATER HEATER PRECAUTIONS The water heater must be maintained in accordance with the Owner’s Guide and “Maintenance Requirements” Installation Instructions. Refer to on page 16 and “Anode Inspection and Replacement” on page 19. If this water heater is to be used where an uninterrupted hot water supply is necessary for your application or business you should ensure that you have back-up redundancy within the hot water system design.
- Page 15 ABOUT YOUR WATER HEATER DOES THE WATER CHEMISTRY AFFECT THE WATER HEATER? The water heater is suitable for most public water supplies, however some water chemistries may have detrimental effects on the water heater, its components “Water Supplies” and fittings. Refer to on page 18.
-
Page 16: Maintenance Requirements
Phone Rheem Service or their nearest Accredited Service Agent. Note: The service and routine replacement of any components, if required, are not included in the Everhot warranty. A charge will be made for this work. Only genuine replacement parts should be used on this water heater. - Page 17 Note: The major service and routine replacement of any components, such as an anode and relief valve(s), are not included in the Everhot warranty. A charge will be made for this work. Only genuine replacement parts should be used on this water heater.
-
Page 18: Water Supplies
Everhot warranty to apply. ANODE The vitreous enamel lined cylinder of the water heater is covered by the Everhot warranty when the total dissolved solids (TDS) content in the water is less than 2500 mg/L and when the correct colour coded anode is used. If an incorrect colour coded anode is used in the water heater, any resultant faults will not be covered by the Everhot warranty. - Page 19 WATER SUPPLIES TOTAL DISSOLVED SOLIDS (TDS) mg/L 2500 (CONDUCTIVITY - μS/cm) (60) (215) (570) (860) (3570) Green Black Blue Blue above 2500 mg/L (3570 μS/cm), warranty applies to a vitreous enamel lined water heater cylinder if the correct coloured anode no warranty applies to a is used for the TDS / conductivity level of the water vitreous enamel lined...
- Page 20 Where the saturation index exceeds +0.40, the water is very scaling. An expansion control valve must be fitted on the cold water line after the non-return valve to protect and for the Everhot warranty to apply to the temperature pressure relief valve and water heater cylinder.
- Page 21 The water heater and its components are not suitable for certain water chemistries. Those chemistries are listed below. If the water heater is connected at any time to a water supply with the following water chemistry, the Everhot warranty will not cover any resultant faults on the components listed below:...
-
Page 22: Save A Service Call
SAVE A SERVICE CALL Check the items below before making a service call. You will be charged for attending to any condition or fault that is not related to the manufacture or failure of a part. NOT ENOUGH HOT WATER (OR NO HOT WATER) •... - Page 23 SAVE A SERVICE CALL TEMPERATURE PRESSURE RELIEF VALVE OR EXPANSION CONTROL VALVE RUNNING • Normal Operation It is normal and desirable the temperature pressure relief valve or expansion control valve (if fitted) allows a quantity of water to escape during the heating cycle. This quantity should be equal to approximately 1/50 of the hot water used, as water expands by this volume when heated.
- Page 24 SAVE A SERVICE CALL WATER HEATER APPEARS TO BE LEAKING When the water heater is first lit, or after a large usage of hot water, condensation may form on the burner and grille at the front of the water heater. This is quite normal, especially in winter months and will dry off as the water is heated.
-
Page 25: Installation
INSTALLATION THIS WATER HEATER IS FOR OUTDOOR INSTALLATION ONLY. THIS WATER HEATER IS NOT SUITABLE FOR POOL HEATING. This water heater is for connection to natural gas only. Check the water heater is suitable for the gas type available. (refer to the rating label on the water heater). INSTALLATION STANDARDS The water heater must be installed: •... - Page 26 INSTALLATION WATER HEATER LOCATION The water heater should be installed close to the most frequently used outlet and its position chosen with safety and service in mind. Make sure people (particularly children) will not touch the flue outlet. The flue terminal must be clear of obstructions and shrubbery.
- Page 27 INSTALLATION The water heater must be located to ensure that the location of the flue terminal complies with the requirements of AS/NZS 5601.1. As a guide the following requirements are extracted from the Gas Installations Standard. The distances are measured along the wall behind the water heater. •...
- Page 28 INSTALLATION TANK WATER SUPPLY If the water heater is supplied with water from a tank supply and a pressure pump system is not installed, then the bottom of the supply tank must be at least 1 m above the highest point of the hot water plumbing system, including the water heater.
- Page 29 INSTALLATION HOT WATER DELIVERY This water heater can deliver hot water at temperatures up to 65°C, sufficiently hot to cause severe scalding. Water at these temperatures may be plumbed to fixtures where water hotter than 50°C is allowed, such as the kitchen and laundry. The installing plumber may have a legal obligation to ensure the installation of this water heater meets the water temperature delivery requirements of the Plumbing Code of Australia so that heated water delivered to fixtures and...
- Page 30 INSTALLATION CIRCULATED HOT WATER FLOW AND RETURN SYSTEM If an Everhot water heater is to be installed as part of a circulated hot water flow and return system, a storage water heater able to provide a hot water outlet temperature of at least 60°C must be used. Note: The thermostat must always be set to at least 60°C.
- Page 31 The correct colour coded anode for the water supply being used must be selected and fitted to the water heater for the Everhot warranty to apply to the “Water Supplies”...
- Page 32 INSTALLATION TYPICAL INSTALLATION – OUTDOOR LOCATION Hourly Min. Test Point Max. Main Pilot Injector Injector Gas Details Consumption Pressure Pressure Pressure Orifice Number (MJ) (kPa) (kPa) (kPa) (mm) 265, 295 265, 295 265, 295 265, 295 265, 295 265, 295 ...
- Page 33 252295 Storage capacity litres Hourly recovery litres (natural gas @ 45°C rise) First hour capacity litres Mass Cartoned (252 series) Full Dimensions 252265 mm 1600 480 556 332 302 605 528 240 300 252295 mm 1900 480 556 1213 402 302 605 528 240 300...
-
Page 34: Connections - Plumbing
CONNECTIONS – PLUMBING All plumbing work must be carried out by a qualified person and in compliance with the Standard AS/NZS 3500.4 and all local codes and regulatory authority requirements. All gas work must be carried out by a qualified person and in compliance with the Standard AS/NZS 5601.1, all local codes and regulatory authority requirements. - Page 35 CONNECTIONS – PLUMBING This water heater is intended to be permanently connected to the water mains and not connected by a hose-set. A braided flexible hose or semi-flexible connector may be used for connection to the water heater, where permitted by AS/NZS 3500.4.
- Page 36 CONNECTIONS – PLUMBING EXPANSION CONTROL VALVE Local regulations may make it mandatory to install an expansion control valve (ECV) in the cold water line to the water heater. In other areas, an ECV is “Water Supplies” required if the saturation index is greater than +0.4 (refer to page 18).
- Page 37 CONNECTIONS – PLUMBING If a drain line discharges into a tundish, the drain line from the tundish must be not less than DN20. The drain line from a tundish must meet the same requirements as for a drain line from a relief valve. Warning: As the function of the temperature pressure relief valve on this water heater is to discharge high temperature water under certain conditions, it is strongly recommended the pipe work downstream of the relief valve be...
- Page 38 Warning: Always isolate the water heater before pressure testing the gas supply system. Disconnect the water heater after the isolating cock to prevent the risk of serious damage to the gas control. The Everhot warranty does not cover damage of any nature resulting from failure to observe this precaution.
-
Page 39: Commissioning
COMMISSIONING TO FILL AND TURN ON THE WATER HEATER The gas pilot or burner must not be lit until the water heater is filled with water. • Open all of the hot water taps in the house (don’t forget the shower). •... - Page 40 COMMISSIONING GAS INLET PRESSURE IMPORTANT – CHECK the gas supply pressure at the inlet to the water heater with the water heater and all other gas burning appliances in the premises operating (burners alight). The minimum gas supply pressure is: Natural Gas 1.13 kPa If this minimum cannot be achieved, it may indicate the meter or the gas line to...
-
Page 41: Lighting The Water Heater
LIGHTING THE WATER HEATER FOR YOUR SAFETY READ BEFORE LIGHTING Warning: This gas water heater is designed to operate reliably and safely as long as the operating instructions are followed exactly. You must comply with these lighting instructions at every stage. Make sure the water heater is filled with water and the water supply is on, otherwise serious damage to the vitreous enamel cylinder lining and plastic components may occur. - Page 42 LIGHTING THE WATER HEATER LIGHTING INSTRUCTIONS Stop, read the safety information on page 41. • Remove the access cover. DANGER: If the main burner or pilot flame is extinguished for any reason during the lighting process, ALWAYS turn the gas control knob to the “⚫”...
- Page 43 LIGHTING THE WATER HEATER RELEASE the gas control knob and CHECK that the indicator needle is still in the green zone. If the needle returns to the red zone go back to Step 1. Note: The next step will light the main burner if the water needs heating. The flames may be noisy at first.
- Page 44 LIGHTING THE WATER HEATER TEST THE WATER HEATER AFTER INSTALLATION • The operation of the water heater must be thoroughly checked by the installer. • The burner flame must light smoothly and quickly from the pilot flame, and must go out quietly and completely. •...
-
Page 45: Draining The Water Heater
DRAINING THE WATER HEATER Warning: Exercise care, as water discharged from the water heater may be of a very high temperature. To drain the water heater: • “To Turn Off The Water Heater” Turn off the water heater (refer to page 40). - Page 46 This page is intentionally blank.
- Page 47 This page is intentionally blank.
- Page 48 Revision Date: 2020 November 122634D...
