Summary of Contents for JMI Telescopes Dobsonian

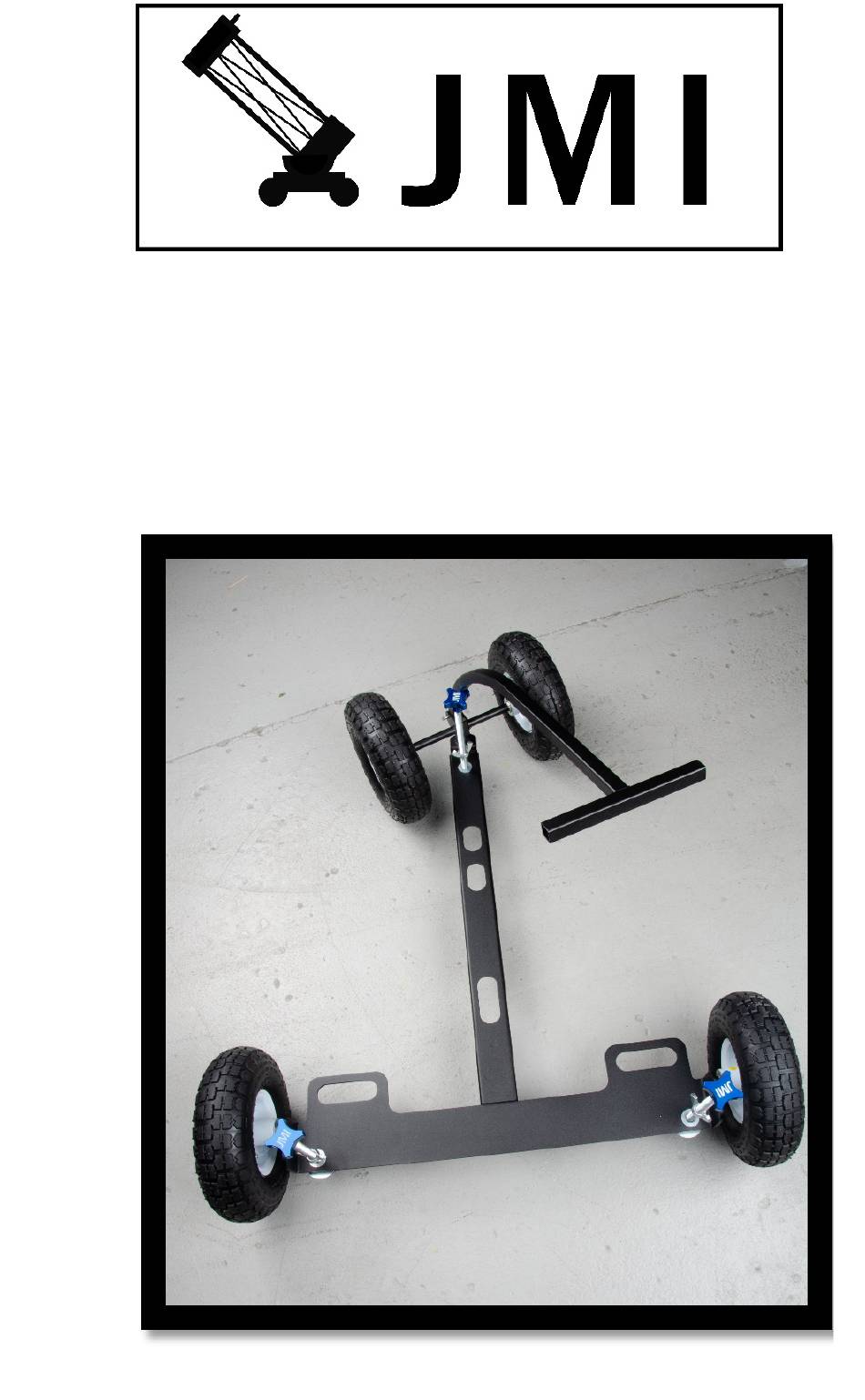

- Page 1 JMI Dobsonian Wheeley Bar For 10-12” Dobsonians Part number TPWLB12...
- Page 2 Congratulations on purchasing your new JMI Dobsonian Wheeley Bar! JMI Wheeley Bars – Meade 10/12 Inch Dobsonians create an easy way to move mounted telescopes to and from observing locations. This is a customized model with four large 10″ all-terrain pneumatic wheels and a tow handle, consisting of a sturdy base with locking wheels and leveling bolts.
- Page 3 Part Quantity Description Letter Wheel Frame Handle Frame Steering Axle Handle Leveling Screws 10” Rubber Tires 1/4x20 Nylon Lock Nuts ½” Wingnuts ½” Washers Large Fender Washers Cotter Pins Clevis Pin 1/2x13 Jam Nuts Rubber Feet Handle End Caps...
- Page 5 Instructions 1. Lay Frames A & B upside down on a flat surface. 2. Align screws in B to line up with holes in A, then use Nylon Lock Nuts...
- Page 6 (G) to secure frames by screwing and tightening. 3. Flip assembled base right-side-up. Attach steering axle (C) into Handle Frame (B). Twist axle until it is secure.
- Page 7 4. Line up Handle (D) to holes in steering axle (C). Slide clevis pin (L) through axle and handle. cotter pin (K) to secure by sliding into the hole in the clevis pin. 5. Attach rear tires (F) to Wheel frame (A), make sure the air gauge is facing out.
- Page 8 6. Repeat process for front tires.
- Page 9 7. Take leveling screw (E) and screw in wing nut (H), then ½” washer (I).
- Page 10 8. Screw leveling screw (E) into each hole next to the rear tires and one next to hand on the handle frame. 9. Screw Jam Nut (M), then large fender washer (J) then another Jam nut (M). 10. Complete by attaching rubber foot to each bottom of each leveling screw.
- Page 11 Your wheeley bar is now ready for use. For the maximum use of your wheeley bar, you can use the leveling rods to stick into soft ground for ultimate stability. Just remove the rubber foot and screw the rod into the ground. The...
- Page 12 large fender washer is there to stabilize the rod into the ground. Lumicon is owned by Optical Structures Incorporated. 11371 Pyrites Way, Suite A Rancho Cordova, CA 95670 916-638-2003 www.FarpointAstro.com...
