Summary of Contents for TiGHT AV DA-H4A-DS
- Page 1 DA-H4A-DS HDMI 2.0 1x4 Distribution Amplifier with Audio Breakout and 4K to 1080p Down-scaling All Rights Reserved Version: DA-H4A-DS_2020V1.0...
- Page 2 HDMI 2.0 1x4 Distribution Amplifier Preface Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different models and specifications are subject to real product. This manual is only for operation instruction, please contact the local distributor for maintenance assistance.
- Page 3 HDMI 2.0 1x4 Distribution Amplifier SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material ...
-
Page 4: Table Of Contents
HDMI 2.0 1x4 Distribution Amplifier Table of Contents 1. Product Introduction ....................1 1.1 Features ......................1 1.2 Packing List ....................... 2 1.3 Customer Service ....................2 2. Specification ....................... 3 3. Panel Description ......................5 3.1 Front Panel ......................5 3.2 Rear Panel ...................... -
Page 5: Product Introduction
HDMI 2.0 1x4 Distribution Amplifier 1. Product Introduction Thanks for choosing the one input to four output HDMI2.0 Distribution Amplifier. The Distribution Amplifier supports HDMI video resolution up to 4K@60Hz 4:4:4, 1080p 3D and multichannel audio formats. Besides passing EDID information from the display, there are multiple built-in EDID settings can be selected by the 4-pin DIP switch on the front panel. -
Page 6: Packing List
HDMI 2.0 1x4 Distribution Amplifier 1.2 Packing List 1x HDMI 2.0 1x4 Distribution Amplifier 2x Mounting Ears with 4 Screws 4x Plastic Cushions 1x Power Adapter (5V DC 1A) 1x User Manual 1.3 Customer Service We provide limited warranty for the product within three years counting from date of purchase (The purchase invoice shall prevail). -
Page 7: Specification
HDMI 2.0 1x4 Distribution Amplifier 2. Specification Video Input Input (1) HDMI Input Connector (1) Female type-A HDMI HDMI Input Resolution Up to 4K@60Hz 4:4:4 HDMI Standard HDCP Version 2.2, 1.4 compliant Video Output Output (4) HDMI Output Connector (4) Female type-A HDMI HDMI Output Resolution Up to 4K@60Hz 4:4:4 HDMI Standard... - Page 8 HDMI 2.0 1x4 Distribution Amplifier Stereo Channel Separation >70dB@1KHz Control Control Part (1) EDID 4-pin DIP switch, (1) Micro-USB port General Bandwidth 18Gbps Operation Temperature -10 ~ +55℃ Storage Temperature -25 ~ +70℃ Relative Humility 10% - 90% Power Supply Input:100V~240V AC;...
-
Page 9: Panel Description

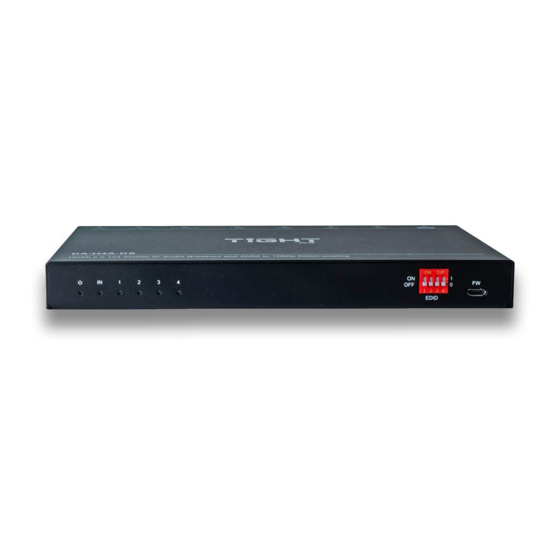

HDMI 2.0 1x4 Distribution Amplifier 3. Panel Description 3.1 Front Panel ① Power LED: The LED illuminates red when power is applied. ② INPUT LED: The LED illuminates blue when there is an input signal present. ③ OUT 1~OUT 4 LED: The LED illuminates blue when there is HDMI output on the corresponding channel. -
Page 10: System Connection
HDMI 2.0 1x4 Distribution Amplifier 4. System Connection The following diagram illustrates typical input and output connections that can be utilized with the Distribution Amplifier:... -
Page 11: Dip Switch Operation
HDMI 2.0 1x4 Distribution Amplifier 5. DIP Switch Operation 5.1 EDID Management The Extended Display Identification Data (EDID) is used by the source device to match its video resolution with the connected display. By default, the source device obtains its EDID from the first connected display. -
Page 12: Hdcp Mode
HDMI 2.0 1x4 Distribution Amplifier 3840x2160@30Hz LPCM 3840x2160@30Hz DTS/Dolby 3840x2160@60Hz LPCM 3840x2160@60Hz DTS/Dolby 5.2 HDCP Mode Put switch 4 on “ON” position to select HDCP Active mode, or to “OFF” for HDCP Passive mode. Switch Status Mode HDCP Passive OFF (0) Automatically follows the display’s HDCP version.
